1310/1550nm MM WDM Filter

DESCRIPTION
Haphit provides fiber based passive components. The WDM Filter is made by thin film coating and micro-optics package technology with Multimode (MM) fiber in and MM fiber out. It features Flat and Wide Spectrum and high Wavelength Isolation. The WDM Filter will combine or split the two signal light with different wavelength. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FMFM 1310nm 1550nm MM Multimode WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type 4-port X Type FMFM 1310nm 1550nm MM Multimode WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type 4-port X Type FMFM 1310nm 1550nm MM Multimode WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type 4-port X Type 1315X 1513X
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1530-1570nm or 1270-1350nm
Reflective Channel Wavelength 1530-1570nm or 1270-1350nm
Configuration Y Type (3-port), X Type (4-port, 2x2 WDM)
Pass/Reflective Channel Insertion Loss <=1dB/<=0.8dB
Pass/Reflective Channel Isolation >=25dB/>=12dB
Return Loss >=30dB
Fiber Type 50/125um or 62.5/126um MM Fiber
50/125um OM3 MM Fiber
105/125um MM Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

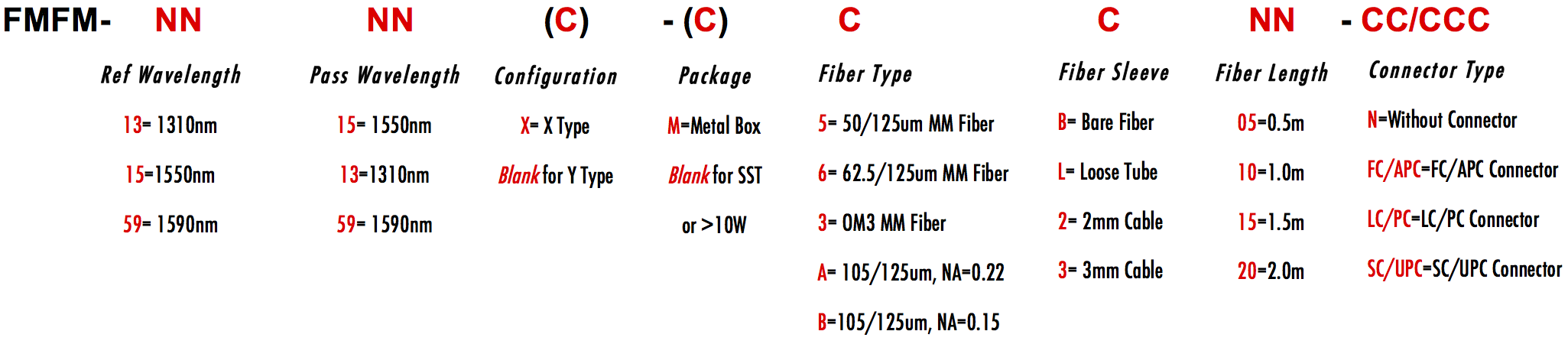

ORDERING INFORMATION/PART NUMBER(PN)
