980/1310nm High Power MM WDM Filter

DESCRIPTION
Haphit provides fiber based passive components. The WDM Filter is made by thin film coating and micro-optics package technology with Multimode (MM) fiber in and MM fiber out. It features Flat and Wide Spectrum and high Wavelength Isolation. The WDM Filter will combine or split the two signal light with different wavelength. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FMFM 980nm 1310nm 975nm 1300nm 970nm 976nm MM Multimode WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W  15W 20W 25W 30W Watt Watts HP CW Continuous Wave FMFM 980nm 1310nm 975nm 1300nm 970nm 976nm MM Multimode WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W  15W 20W 25W 30W Watt Watts HP CW Continuous Wave FMFM 980nm 1310nm 975nm 1300nm 970nm 976nm MM Multimode WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W  15W 20W 25W 30W Watt Watts HP CW Continuous Wave 9813X 1398X
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1310+/-20nm
Reflective Channel Wavelength 965-1000nm
Configuration Y Type (3-port), X Type (4-port, 2x2 WDM)
Pass/Reflective Channel Insertion Loss <=1dB/<=0.8dB
Pass/Reflective Channel Isolation >=30dB/>=15dB
Return Loss >=30dB
Fiber Type 50/125um or 62.5/126um MM Fiber
50/125um OM3 MM Fiber
105/125um MM Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W, 25W, 30W
Operating Temperature 0~50degreeC

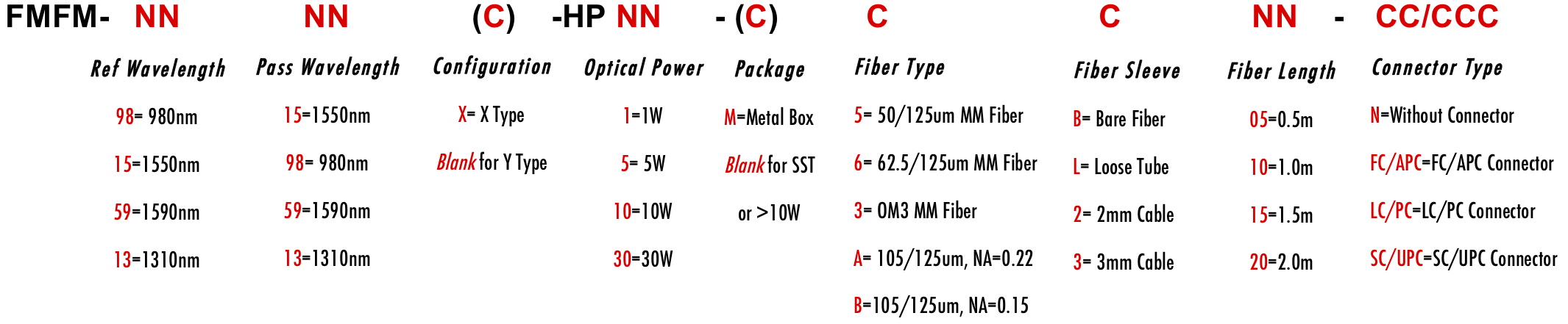

ORDERING INFORMATION/PART NUMBER(PN)
