532/635nm PM WDM Combiner Filter

DESCRIPTION
Haphit provides fiber based passive components. The WDM Filter is made by thin film coating and micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The WDM Combiner Filter will combine signal light with different wavelength. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPWM 560nm 532nm 635nm 650nm PM WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter PM460 PM630 Polarization Maintaining PM Extinction Ratio ER Panda FPWM 560nm 532nm 635nm 650nm PM WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter PM460 PM630 Polarization Maintaining PM Extinction Ratio ER Panda FPWM 560nm 532nm 635nm 650nm PM WDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter PM460 PM630 Polarization Maintaining PM Extinction Ratio ER Panda 5363
TYPICAL SPECIFICATIONS
Wavelength Range (Port G) 532nm
Wavelength Range (Port R) 635nm
Insertion Loss <=3.0dB
Return Loss >=45dB
Extinction Ratio >=18dB
Fiber Type PM460-HP Fiber (Common&G Port)
PM630-HP Fiber (R Port)
Max. Optical Power (CW) 100mW
Operating Temperature 23~45degreeC

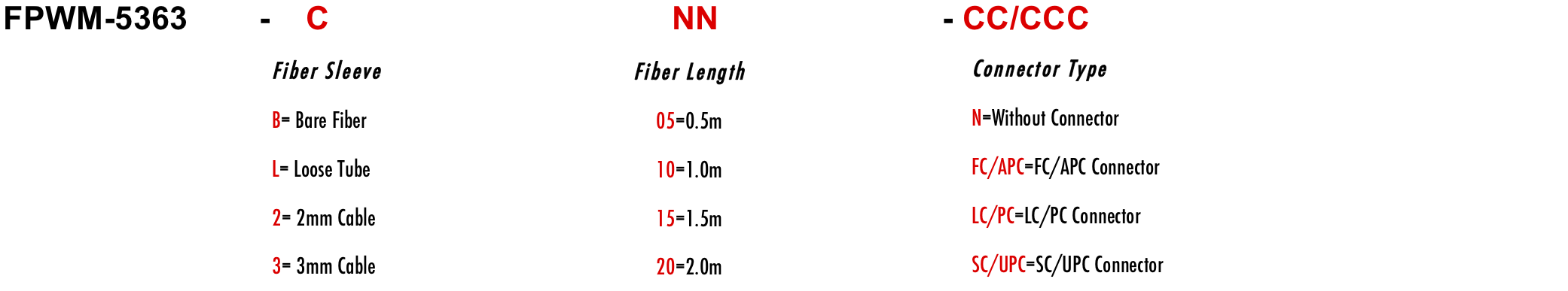

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
