200GHz DWDM Dual Channel OADM Module
DESCRIPTION
Haphit provides fiber based passive components. The DWDM (Dense Wavelength Division Multiplex) is made by thin film coating and micro-optics package technology with fiber in and fiber out. It features Flat and Wide Spectrum and high Wavelength Isolation. The DWDM will combine or split the signal light according to ITU standard. Various center wavelength and fiber types are available, customized on wavelength and consigned fiber type are also available on request.
FDWO 1520nm 1530nm 1550nm 1570nm 1580nm 1610nm C Band L Band 200GHz 1.6nm DWDM OADM Optical Add Drop Dense Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type FDWO 1520nm 1530nm 1550nm 1570nm 1580nm 1610nm C Band L Band 200GHz 1.6nm DWDM OADM Optical Add Drop Dense Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type FDWO 1520nm 1530nm 1550nm 1570nm 1580nm 1610nm C Band L Band 200GHz 1.6nm DWDM OADM Optical Add Drop Dense Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type 2C01 2C02 2C03 2C04 2C05 2C06 2C07 2C08 2C09 2C10 2C11 2C12 2C13 2C14 2C15 2C16 2C17 2C18 2C19 2C20 2C21 2C22 2C23 2C24 2C25 2C26 2C27 2C28 2C29 2C30 2C31 2C32 2C33 2C34 2C35 2C36 2C37 2C38 2C39 2C40 2C41 2C42 2C43 2C44 2C45 2C46 2C47 2C48 2C49 2C50 2C51 2C52 2C53 2C54 2C55 2C56 2C57 2C58 2C59 2C60 2C61 2H01 2H02 2H03 2H04 2H05 2H06 2H07 2H08 2H09 2H10 2H11 2H12 2H13 2H14 2H15 2H16 2H17 2H18 2H19 2H20 2H21 2H22 2H23 2H24 2H25 2H26 2H27 2H28 2H29 2H30 2H31 2H32 2H33 2H34 2H35 2H36 2H37 2H38 2H39 2H40 2H41 2H42 2H43 2H44 2H45 2H46 2H47 2H48 2H49 2H50 2H51 2H52 2H53 2H54 2H55 2H56 2H57 2H58 2H59 2H60 2H61
TYPICAL SPECIFICATIONS
Center Wavelength
1528-1640nm ITU Grid
Channel Spacing
200G
Channel Passband Width
+/-0.25nm
Add-Drop/Express Channel Insertion Loss
<=1.5dB/<=1.4dB
Add-Drop/Express Channel Isolation
>=25dB/>=25dB
Return Loss
>=45dB
PDL
<=0.1dB
Fiber Type
SMF-28 Fiber or 10/130um DC Fiber
12/130um DC Fiber or 20/130um DC Fiber
25/250um DC Fiber or 25/300um DC Fiber
Max. Optical Power (CW)
300mW
Operating Temperature
0~70degreeC

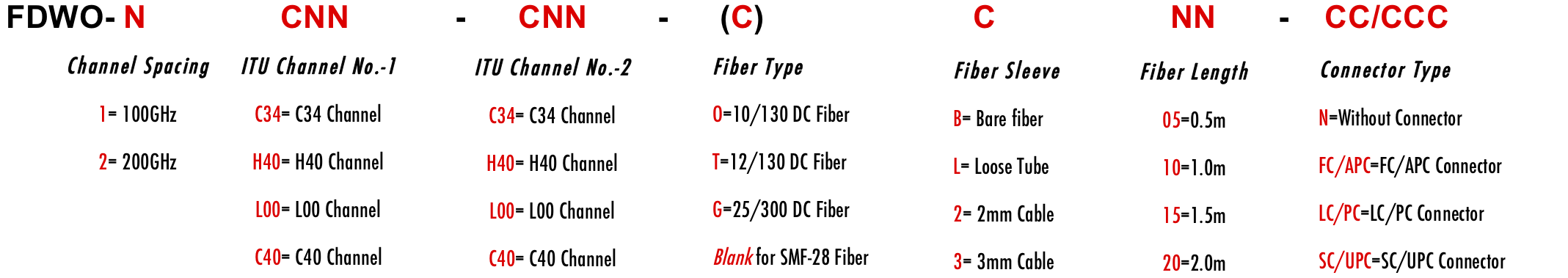

ORDERING INFORMATION/PART NUMBER(PN)
Standard specifications and
design parameters
Serial
Reference
Part Number (PN)*:
