CWDM 8-Channel Mux/Demux Module

DESCRIPTION
Haphit provides fiber based passive components. The CWDM (Coarse Wavelength Division Multiplex) is made by thin film coating and micro-optics package technology with fiber in and fiber out. It features Flat and Wide Spectrum and high Wavelength Isolation. The CWDM will combine or split the signal light according to ITU standard. Various center wavelength and fiber types are available, customized on wavelength and consigned fiber type are also available on request.
FCWM 1270nm 1271nm 1290nm 1291nm 1310nm 1311nm 1330nm 1331nm 1350nm 1351nm 1370nm 1371nm 1390nm 1391nm 1410nm 1411nm 1430nm 1431nm 1450nm 1451nm 1470nm 1471nm 1490nm 1491nm 1510nm 1511nm 1530nm 1531nm 1550nm 1551nm 1570nm 1571nm 1590nm 1591nm 1610nm 1611nm 20nm 8Channel mux demux Coarse CWDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad FCWM 1270nm 1271nm 1290nm 1291nm 1310nm 1311nm 1330nm 1331nm 1350nm 1351nm 1370nm 1371nm 1390nm 1391nm 1410nm 1411nm 1430nm 1431nm 1450nm 1451nm 1470nm 1471nm 1490nm 1491nm 1510nm 1511nm 1530nm 1531nm 1550nm 1551nm 1570nm 1571nm 1590nm 1591nm 1610nm 1611nm 20nm 8Channel mux demux Coarse CWDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad FCWM 1270nm 1271nm 1290nm 1291nm 1310nm 1311nm 1330nm 1331nm 1350nm 1351nm 1370nm 1371nm 1390nm 1391nm 1410nm 1411nm 1430nm 1431nm 1450nm 1451nm 1470nm 1471nm 1490nm 1491nm 1510nm 1511nm 1530nm 1531nm 1550nm 1551nm 1570nm 1571nm 1590nm 1591nm 1610nm 1611nm 20nm 8Channel mux demux Coarse CWDM Filter Wavelength division filtre filtro Multiplexer Demux Combiner Divide Splitter SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 8M 8D
TYPICAL SPECIFICATIONS
Center Wavelength 1270~1610nm or 1271~1611nm
Channel Spacing 20nm
Channel Passband Width +/-6.5nm
Insertion Loss <=2.8dB
Channel Isolation >=30dB for Demux
>=15dB for Mux
Return Loss >=45dB
PDL <=0.15dB
Fiber Type SMF-28 Fiber or 10/130um DC Fiber
12/130um DC Fiber or 20/130um DC Fiber
25/250um DC Fiber or 25/300um DC Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~70degreeC

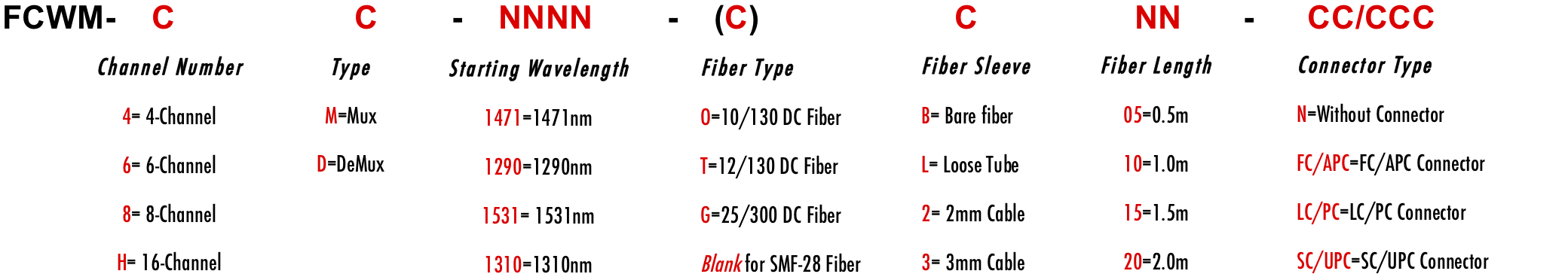

ORDERING INFORMATION/PART NUMBER(PN)
