1070/1310nm Fused PM WDM for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Fused PM WDM is made by Fused Biconical Taper (FBT) technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features low excess loss, high Wavelength Isolation and high Extinction Ratio The Fused PM WDM will combine or split the two signal light with different wavelength. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPCD 1070nm 1075nm 1072nm 1310nm fused WDM Wavelength division Multiplex demultiplex coupler splitter and combiner for high optical power and pulse optical power with Fused Biconical Taper (FBT) technology Stopiony sprz??enie multipleksuj?ce WDM z podzia?em fali, rozdzielacz mocy optycznej o wysokiej mocy optycznej i impulsowej oraz zespó?, wykorzystuj?cy technologi? stopionego podwójnego sto?ka (FBT) Schmelzen WDM-Wellenkomponenten-Multiplexe-Multiplexe Kupplung Hochleistungsoptische und Pulsoptische Leistung Separatoren und Kombinatoren mit Schmelzen Doppelkegel-Technologie (FBT) Smeltet WDM Wave Division Multiplexing Coupler med høj optisk effekt og pulserende optisk effektdelinger og kombinatorer, der anvender teknologi med smeltet dobbelt tilspidsning (FBT) Fusion WDM Division d'ondes multiplexé couplage haute puissance optique et pulsé séparateur de puissance optique et combinateur, utilisant la technologie à double cône fusionnée (FBT) Sulautettu WDM Wave Division Multiplexing-yhdistelmä, korkea optinen teho ja pulssin optinen virranjakaja ja yhdistelmä, jossa on sulautettu kaksi kartiota (FBT)-tekniikkaa Smeltende WDM Wave Division Multiplexing Coupling High Optical Power Distributor en Pulse Optical Power Divider en Combiner met gesmolten dubbele taps (FBT)-technologie Rozpušt?ní WDM Wave Division Multiplex Coupler High Optical Power Division a Pulse Optical Power Separator a Combinator s technologií Smelted Double Cone (FBT) Fusão WDM Divisão de Ondas Múltiplo Duplicador Acoplador de Potência Óptica de Alta Potência e Pulso Separador de Potência Óptica e Combinador com Tecnologia Fusão Dupla Conica (FBT) Fusión WDM división de onda multiplexado y multiplexado acoplador de alta potencia óptica y pulso separación de potencia óptica y combinador, utilizando tecnología de doble cono fundido (FBT) Fuso WDM divisione d'onda multiplexato accoppiatore di potenza ottica ad alta potenza e separazione di potenza ottica pulsata e combinatore con tecnologia a doppio cono fuso (FBT) PM1550 PM1310 PM1550XP 8/125 9/125 1x2 2x2 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPCD 1070nm 1075nm 1072nm 1310nm fused WDM Wavelength division Multiplex demultiplex coupler splitter and combiner for high optical power and pulse optical power with Fused Biconical Taper (FBT) technology Stopiony sprz??enie multipleksuj?ce WDM z podzia?em fali, rozdzielacz mocy optycznej o wysokiej mocy optycznej i impulsowej oraz zespó?, wykorzystuj?cy technologi? stopionego podwójnego sto?ka (FBT) Schmelzen WDM-Wellenkomponenten-Multiplexe-Multiplexe Kupplung Hochleistungsoptische und Pulsoptische Leistung Separatoren und Kombinatoren mit Schmelzen Doppelkegel-Technologie (FBT) Smeltet WDM Wave Division Multiplexing Coupler med høj optisk effekt og pulserende optisk effektdelinger og kombinatorer, der anvender teknologi med smeltet dobbelt tilspidsning (FBT) Fusion WDM Division d'ondes multiplexé couplage haute puissance optique et pulsé séparateur de puissance optique et combinateur, utilisant la technologie à double cône fusionnée (FBT) Sulautettu WDM Wave Division Multiplexing-yhdistelmä, korkea optinen teho ja pulssin optinen virranjakaja ja yhdistelmä, jossa on sulautettu kaksi kartiota (FBT)-tekniikkaa Smeltende WDM Wave Division Multiplexing Coupling High Optical Power Distributor en Pulse Optical Power Divider en Combiner met gesmolten dubbele taps (FBT)-technologie Rozpušt?ní WDM Wave Division Multiplex Coupler High Optical Power Division a Pulse Optical Power Separator a Combinator s technologií Smelted Double Cone (FBT) Fusão WDM Divisão de Ondas Múltiplo Duplicador Acoplador de Potência Óptica de Alta Potência e Pulso Separador de Potência Óptica e Combinador com Tecnologia Fusão Dupla Conica (FBT) Fusión WDM división de onda multiplexado y multiplexado acoplador de alta potencia óptica y pulso separación de potencia óptica y combinador, utilizando tecnología de doble cono fundido (FBT) Fuso WDM divisione d'onda multiplexato accoppiatore di potenza ottica ad alta potenza e separazione di potenza ottica pulsata e combinatore con tecnologia a doppio cono fuso (FBT) PM1550 PM1310 PM1550XP 8/125 9/125 1x2 2x2 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPCD 1070nm 1075nm 1072nm 1310nm fused WDM Wavelength division Multiplex demultiplex coupler splitter and combiner for high optical power and pulse optical power with Fused Biconical Taper (FBT) technology Stopiony sprz??enie multipleksuj?ce WDM z podzia?em fali, rozdzielacz mocy optycznej o wysokiej mocy optycznej i impulsowej oraz zespó?, wykorzystuj?cy technologi? stopionego podwójnego sto?ka (FBT) Schmelzen WDM-Wellenkomponenten-Multiplexe-Multiplexe Kupplung Hochleistungsoptische und Pulsoptische Leistung Separatoren und Kombinatoren mit Schmelzen Doppelkegel-Technologie (FBT) Smeltet WDM Wave Division Multiplexing Coupler med høj optisk effekt og pulserende optisk effektdelinger og kombinatorer, der anvender teknologi med smeltet dobbelt tilspidsning (FBT) Fusion WDM Division d'ondes multiplexé couplage haute puissance optique et pulsé séparateur de puissance optique et combinateur, utilisant la technologie à double cône fusionnée (FBT) Sulautettu WDM Wave Division Multiplexing-yhdistelmä, korkea optinen teho ja pulssin optinen virranjakaja ja yhdistelmä, jossa on sulautettu kaksi kartiota (FBT)-tekniikkaa Smeltende WDM Wave Division Multiplexing Coupling High Optical Power Distributor en Pulse Optical Power Divider en Combiner met gesmolten dubbele taps (FBT)-technologie Rozpušt?ní WDM Wave Division Multiplex Coupler High Optical Power Division a Pulse Optical Power Separator a Combinator s technologií Smelted Double Cone (FBT) Fusão WDM Divisão de Ondas Múltiplo Duplicador Acoplador de Potência Óptica de Alta Potência e Pulso Separador de Potência Óptica e Combinador com Tecnologia Fusão Dupla Conica (FBT) Fusión WDM división de onda multiplexado y multiplexado acoplador de alta potencia óptica y pulso separación de potencia óptica y combinador, utilizando tecnología de doble cono fundido (FBT) Fuso WDM divisione d'onda multiplexato accoppiatore di potenza ottica ad alta potenza e separazione di potenza ottica pulsata e combinatore con tecnologia a doppio cono fuso (FBT) PM1550 PM1310 PM1550XP 8/125 9/125 1x2 2x2 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 0713 07131
TYPICAL SPECIFICATIONS
Wavelength Range 1 1070+/-10nm
Wavelength Range 2 1310+/-10nm
Configuration 1x2 or 2x2
Insertion Loss <=0.8dB
Isolation >=15dB
Extinction Ratio >=18dB
Directivity >=50dB
Fiber Type PM980 Fiber or 6/125um PMDC Fiber NA=0.18
PM1310 Fiber or 8/125um PMDC Fiber NA=0.12
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W, 25W, 30W, 50W, 80W, 100W, 150W, 200W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

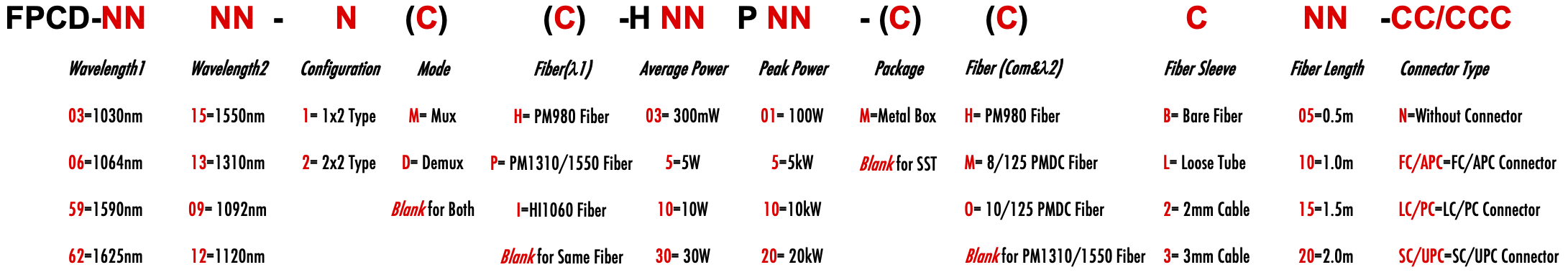

ORDERING INFORMATION/PART NUMBER(PN)
