980/1550nm PM WDM/Isolator Hybrid

DESCRIPTION
Haphit provides fiber based passive components. The WDM/Isolator Hybrid is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation, high Signal Isolation and high Extinction Ratio. The WDM/Isolator Hybrid will combine or split the signal light and pump light, while at the same time force the signal to transmit at single direction. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPHW 980nm 975nm 970nm 1550nm 1530nm 1570nm PM WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter PM1550 PM980 PM980XP LMA 6/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda FPHW 980nm 975nm 970nm 1550nm 1530nm 1570nm PM WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter PM1550 PM980 PM980XP LMA 6/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda FPHW 980nm 975nm 970nm 1550nm 1530nm 1570nm PM WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter PM1550 PM980 PM980XP LMA 6/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda 98SFSY 98SFSP 98SFSH 98SFSS 98SFFY 98SFFP 98SFFH 98SFFS 98SBSY 98SBSP 98SBSH 98SBSS 98SBFY 98SBFP 98SBFH 98SBFS 98DFSY 98DFSP 98DFSH 98DFSS 98DFFY 98DFFP 98DFFH 98DFFS 98DBSY 98DBSP 98DBSH 98DBSS 98DBFY 98DBFP 98DBFH 98DBFS 09SFSY 09SFSP 09SFSH 09SFSS 09SFFY 09SFFP 09SFFH 09SFFS 09SBSY 09SBSP 09SBSH 09SBSS 09SBFY 09SBFP 09SBFH 09SBFS 09DFSY 09DFSP 09DFSH 09DFSS 09DFFY 09DFFP 09DFFH 09DFFS 09DBSY 09DBSP 09DBSH 09DBSS 09DBFY 09DBFP 09DBFH 09DBFS
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1530-1570nm
Reflective Channel Wavelength 960-990nm
Signal/Pump Insertion Loss <=1.3dB (Single Stage), <=1.4dB (Dual Stage) /<=0.8dB
Signal Isolation >=28dB (Single Stage), >=45dB (Dual Stage)
Signal/Pump Wavelength Isolation >=30dB/>=12dB
Return Loss >=45dB
Extinction Ratio >=18dB
Fiber Type (Common&Signal) PM1550 Fiber or 10/125um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Fiber Type (Pump) Same Fiber, Corr. SM Fiber, PM980 Fiber or HI1060 Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~70degreeC

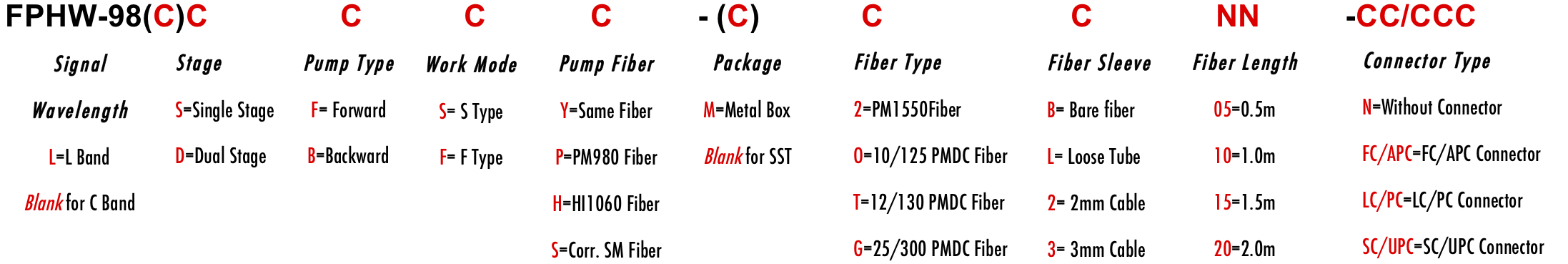

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
