980/1590nm High Power PM WDM/Isolator Hybrid

DESCRIPTION
Haphit provides fiber based passive components. The WDM/Isolator Hybrid is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation, high Signal Isolation and high Extinction Ratio. The WDM/Isolator Hybrid will combine or split the signal light and pump light, while at the same time force the signal to transmit at single direction. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPHW 980nm 975nm 970nm 1590nm 1580nm 1600nm 1570nm 1610nm 1595nm 1585nm PM WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter PM1550 PM980 PM980XP LMA 6/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave FPHW 980nm 975nm 970nm 1590nm 1580nm 1600nm 1570nm 1610nm 1595nm 1585nm PM WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter PM1550 PM980 PM980XP LMA 6/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave FPHW 980nm 975nm 970nm 1590nm 1580nm 1600nm 1570nm 1610nm 1595nm 1585nm PM WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter PM1550 PM980 PM980XP LMA 6/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20W Watt Watts HP CW Continuous Wave 98LSFSY 98LSFSP 98LSFSH 98LSFSS 98LSFFY 98LSFFP 98LSFFH 98LSFFS 98LSBSY 98LSBSP 98LSBSH 98LSBSS 98LSBFY 98LSBFP 98LSBFH 98LSBFS 98LDFSY 98LDFSP 98LDFSH 98LDFSS 98LDFFY 98LDFFP 98LDFFH 98LDFFS 98LDBSY 98LDBSP 98LDBSH 98LDBSS 98LDBFY 98LDBFP 98LDBFH 98LDBFS 98LHFSY 98LHFSP 98LHFSH 98LHFSS 98LHFFY 98LHFFP 98LHFFH 98LHFFS 98LHBSY 98LHBSP 98LHBSH 98LHBSS 98LHBFY 98LHBFP 98LHBFH 98LHBFS 09LSFSY 09LSFSP 09LSFSH 09LSFSS 09LSFFY 09LSFFP 09LSFFH 09LSFFS 09LSBSY 09LSBSP 09LSBSH 09LSBSS 09LSBFY 09LSBFP 09LSBFH 09LSBFS 09LDFSY 09LDFSP 09LDFSH 09LDFSS 09LDFFY 09LDFFP 09LDFFH 09LDFFS 09LDBSY 09LDBSP 09LDBSH 09LDBSS 09LDBFY 09LDBFP 09LDBFH 09LDBFS 09LHFSY 09LHFSP 09LHFSH 09LHFSS 09LHFFY 09LHFFP 09LHFFH 09LHFFS 09LHBSY 09LHBSP 09LHBSH 09LHBSS 09LHBFY 09LHBFP 09LHBFH 09LHBFS
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1570-1610nm
Reflective Channel Wavelength 960-990nm
Signal/Pump Insertion Loss <=1.3dB (Single Stage), <=1.4dB (Dual Stage)
<=1.6dB (H Stage) /<=0.8dB
Signal Isolation >=28dB (Single Stage), >=45dB (Dual Stage)
>=25dB (H Stage)
Signal/Pump Wavelength Isolation >=30dB/>=12dB
Return Loss >=45dB
Extinction Ratio >=18dB
Fiber Type (Common&Signal) PM1550 Fiber or 10/125um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Fiber Type (Pump) Same Fiber, Corr. SM Fiber, PM980 Fiber or HI1060 Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W
Operating Temperature 0~70degreeC

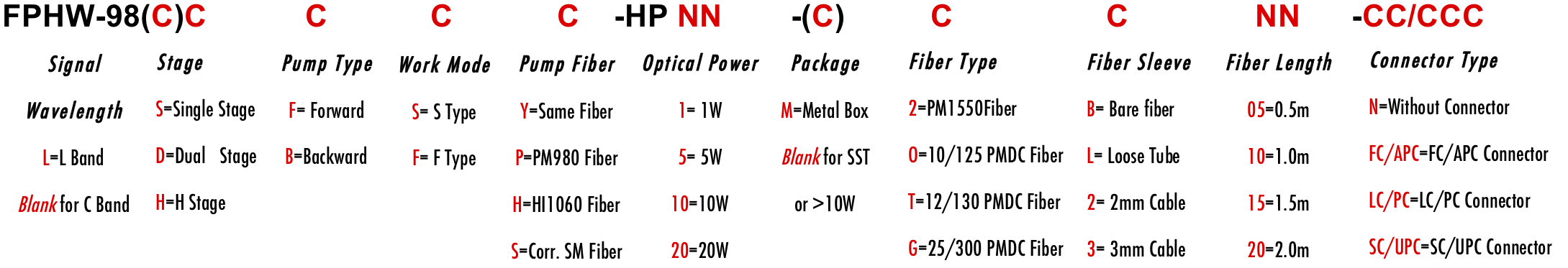

ORDERING INFORMATION/PART NUMBER(PN)
