1480/1550nm WDM/Isolator/Tap Hybrid for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The WDM/Isolator/Tap Hybrid is made by micro-optics package technology with fiber in and fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation, high Signal Isolation and various Tap Ratio. The WDM/Isolator/Tap Hybrid will combine or split the signal light and pump light, while at the same time force the signal to transmit at single direction and tap the signal for monitoring purpose. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FHWT 1480nm 1470nm 1490nm 1485nm 1450nm 1460nm 1550nm 1530nm 1570nm 1540nm 1560nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FHWT 1480nm 1470nm 1490nm 1485nm 1450nm 1460nm 1550nm 1530nm 1570nm 1540nm 1560nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FHWT 1480nm 1470nm 1490nm 1485nm 1450nm 1460nm 1550nm 1530nm 1570nm 1540nm 1560nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 14S001 14S01 14S02 14S03 14S04 14S05 14S06 14S07 14S08 14S09 14S10 14S11 14S12 14S13 14S14 14S15 14S16 14S17 14S18 14S19 14S20 14S21 14S22 14S23 14S24 14S25 14S26 14S27 14S28 14S29 14S30 14S31 14S32 14S33 14S34 14S35 14S36 14S37 14S38 14S39 14S40 14S41 14S42 14S43 14S44 14S45 14S46 14S47 14S48 14S49 14S50 14S51 14S52 14S53 14S54 14S55 14S56 14S57 14S58 14S59 14S60 14S61 14S62 14S63 14S64 14S65 14S66 14S67 14S68 14S69 14S70 14S71 14S72 14S73 14S74 14S75 14S76 14S77 14S78 14S79 14S80 14S81 14S82 14S83 14S84 14S85 14S86 14S87 14S88 14S89 14S90 14S91 14S92 14S93 14S94 14S95 14S96 14S97 14S98 14S99 14D001 14D01 14D02 14D03 14D04 14D05 14D06 14D07 14D08 14D09 14D10 14D11 14D12 14D13 14D14 14D15 14D16 14D17 14D18 14D19 14D20 14D21 14D22 14D23 14D24 14D25 14D26 14D27 14D28 14D29 14D30 14D31 14D32 14D33 14D34 14D35 14D36 14D37 14D38 14D39 14D40 14D41 14D42 14D43 14D44 14D45 14D46 14D47 14D48 14D49 14D50 14D51 14D52 14D53 14D54 14D55 14D56 14D57 14D58 14D59 14D60 14D61 14D62 14D63 14D64 14D65 14D66 14D67 14D68 14D69 14D70 14D71 14D72 14D73 14D74 14D75 14D76 14D77 14D78 14D79 14D80 14D81 14D82 14D83 14D84 14D85 14D86 14D87 14D88 14D89 14D90 14D91 14D92 14D93 14D94 14D95 14D96 14D97 14D98 14D99 14H001 14H01 14H02 14H03 14H04 14H05 14H06 14H07 14H08 14H09 14H10 14H11 14H12 14H13 14H14 14H15 14H16 14H17 14H18 14H19 14H20 14H21 14H22 14H23 14H24 14H25 14H26 14H27 14H28 14H29 14H30 14H31 14H32 14H33 14H34 14H35 14H36 14H37 14H38 14H39 14H40 14H41 14H42 14H43 14H44 14H45 14H46 14H47 14H48 14H49 14H50 14H51 14H52 14H53 14H54 14H55 14H56 14H57 14H58 14H59 14H60 14H61 14H62 14H63 14H64 14H65 14H66 14H67 14H68 14H69 14H70 14H71 14H72 14H73 14H74 14H75 14H76 14H77 14H78 14H79 14H80 14H81 14H82 14H83 14H84 14H85 14H86 14H87 14H88 14H89 14H90 14H91 14H92 14H93 14H94 14H95 14H96 14H97 14H98 14H99
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1530-1570nm
Reflective Channel Wavelength 1450-1490nm
Signal/Pump Insertion Loss <=1.1dB (Single Stage), <=1.3dB (Dual Stage)
<=1.5dB (H Stage) /<=0.8dB
Signal Isolation >=28dB (Single Stage), >=45dB (Dual Stage)
>=25dB (H Stage)
Signal Tap Ratio 1%, 2%, 5%, 10%, 20%, 30%, 40%, 50%
Signal/Pump Wavelength Isolation >=25dB/>=12dB
Return Loss >=45dB
PDL <=0.2dB
Fiber Type (Common&Signal&Tap) SMF-28 Fiber or 10/130um DC Fiber
12/130um DC Fiber or 20/130um DC Fiber
25/250um DC Fiber or 25/300um DC Fiber
Fiber Type (Pump) Same Fiber or SMF-28 Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

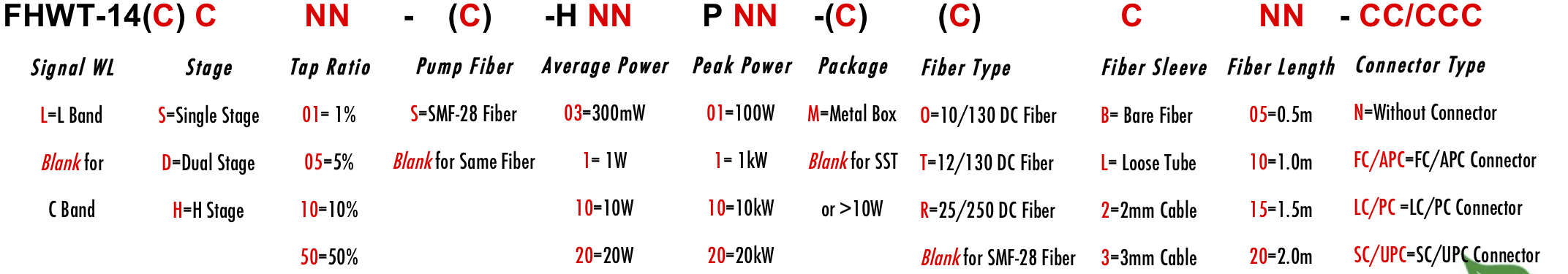

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
