980/1550nm PM WDM/Isolator/Tap Hybrid
DESCRIPTION
Haphit provides fiber based passive components. The WDM/Isolator/Tap Hybrid is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation, high Signal Isolation, high Extinction Ratio and various Tap Ratio. The WDM/Isolator/Tap Hybrid will combine or split the signal light and pump light, while at the same time force the signal to transmit at single direction and tap the signal for monitoring purpose. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPHT 980nm 975nm 970nm 1550nm 1530nm 1570nm PM WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador PM1550 PM980 PM980XP LMA 6/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda FPHT 980nm 975nm 970nm 1550nm 1530nm 1570nm PM WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador PM1550 PM980 PM980XP LMA 6/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda FPHT 980nm 975nm 970nm 1550nm 1530nm 1570nm PM WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador PM1550 PM980 PM980XP LMA 6/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad Polarization Maintaining PM Extinction Ratio ER Panda 98SS 98SF 98SB 98DS 98DF 98DB 09SS 09SF 09SB 09DS 09DF 09DB 001PPP 01PPP 02PPP 03PPP 04PPP 05PPP 06PPP 07PPP 08PPP 09PPP 10PPP 11PPP 12PPP 13PPP 14PPP 15PPP 16PPP 17PPP 18PPP 19PPP 20PPP 21PPP 22PPP 23PPP 24PPP 25PPP 26PPP 27PPP 28PPP 29PPP 30PPP 31PPP 32PPP 33PPP 34PPP 35PPP 36PPP 37PPP 38PPP 39PPP 40PPP 41PPP 42PPP 43PPP 44PPP 45PPP 46PPP 47PPP 48PPP 49PPP 50PPP 51PPP 52PPP 53PPP 54PPP 55PPP 56PPP 57PPP 58PPP 59PPP 60PPP 61PPP 62PPP 63PPP 64PPP 65PPP 66PPP 67PPP 68PPP 69PPP 70PPP 71PPP 72PPP 73PPP 74PPP 75PPP 76PPP 77PPP 78PPP 79PPP 80PPP 81PPP 82PPP 83PPP 84PPP 85PPP 86PPP 87PPP 88PPP 89PPP 90PPP 91PPP 92PPP 93PPP 94PPP 95PPP 96PPP 97PPP 98PPP 99PPP 001PSP 01PSP 02PSP 03PSP 04PSP 05PSP 06PSP 07PSP 08PSP 09PSP 10PSP 11PSP 12PSP 13PSP 14PSP 15PSP 16PSP 17PSP 18PSP 19PSP 20PSP 21PSP 22PSP 23PSP 24PSP 25PSP 26PSP 27PSP 28PSP 29PSP 30PSP 31PSP 32PSP 33PSP 34PSP 35PSP 36PSP 37PSP 38PSP 39PSP 40PSP 41PSP 42PSP 43PSP 44PSP 45PSP 46PSP 47PSP 48PSP 49PSP 50PSP 51PSP 52PSP 53PSP 54PSP 55PSP 56PSP 57PSP 58PSP 59PSP 60PSP 61PSP 62PSP 63PSP 64PSP 65PSP 66PSP 67PSP 68PSP 69PSP 70PSP 71PSP 72PSP 73PSP 74PSP 75PSP 76PSP 77PSP 78PSP 79PSP 80PSP 81PSP 82PSP 83PSP 84PSP 85PSP 86PSP 87PSP 88PSP 89PSP 90PSP 91PSP 92PSP 93PSP 94PSP 95PSP 96PSP 97PSP 98PSP 99PSP 001SPP 01SPP 02SPP 03SPP 04SPP 05SPP 06SPP 07SPP 08SPP 09SPP 10SPP 11SPP 12SPP 13SPP 14SPP 15SPP 16SPP 17SPP 18SPP 19SPP 20SPP 21SPP 22SPP 23SPP 24SPP 25SPP 26SPP 27SPP 28SPP 29SPP 30SPP 31SPP 32SPP 33SPP 34SPP 35SPP 36SPP 37SPP 38SPP 39SPP 40SPP 41SPP 42SPP 43SPP 44SPP 45SPP 46SPP 47SPP 48SPP 49SPP 50SPP 51SPP 52SPP 53SPP 54SPP 55SPP 56SPP 57SPP 58SPP 59SPP 60SPP 61SPP 62SPP 63SPP 64SPP 65SPP 66SPP 67SPP 68SPP 69SPP 70SPP 71SPP 72SPP 73SPP 74SPP 75SPP 76SPP 77SPP 78SPP 79SPP 80SPP 81SPP 82SPP 83SPP 84SPP 85SPP 86SPP 87SPP 88SPP 89SPP 90SPP 91SPP 92SPP 93SPP 94SPP 95SPP 96SPP 97SPP 98SPP 99SPP 001SSP 01SSP 02SSP 03SSP 04SSP 05SSP 06SSP 07SSP 08SSP 09SSP 10SSP 11SSP 12SSP 13SSP 14SSP 15SSP 16SSP 17SSP 18SSP 19SSP 20SSP 21SSP 22SSP 23SSP 24SSP 25SSP 26SSP 27SSP 28SSP 29SSP 30SSP 31SSP 32SSP 33SSP 34SSP 35SSP 36SSP 37SSP 38SSP 39SSP 40SSP 41SSP 42SSP 43SSP 44SSP 45SSP 46SSP 47SSP 48SSP 49SSP 50SSP 51SSP 52SSP 53SSP 54SSP 55SSP 56SSP 57SSP 58SSP 59SSP 60SSP 61SSP 62SSP 63SSP 64SSP 65SSP 66SSP 67SSP 68SSP 69SSP 70SSP 71SSP 72SSP 73SSP 74SSP 75SSP 76SSP 77SSP 78SSP 79SSP 80SSP 81SSP 82SSP 83SSP 84SSP 85SSP 86SSP 87SSP 88SSP 89SSP 90SSP 91SSP 92SSP 93SSP 94SSP 95SSP 96SSP 97SSP 98SSP 99SSP 001YPP 01YPP 02YPP 03YPP 04YPP 05YPP 06YPP 07YPP 08YPP 09YPP 10YPP 11YPP 12YPP 13YPP 14YPP 15YPP 16YPP 17YPP 18YPP 19YPP 20YPP 21YPP 22YPP 23YPP 24YPP 25YPP 26YPP 27YPP 28YPP 29YPP 30YPP 31YPP 32YPP 33YPP 34YPP 35YPP 36YPP 37YPP 38YPP 39YPP 40YPP 41YPP 42YPP 43YPP 44YPP 45YPP 46YPP 47YPP 48YPP 49YPP 50YPP 51YPP 52YPP 53YPP 54YPP 55YPP 56YPP 57YPP 58YPP 59YPP 60YPP 61YPP 62YPP 63YPP 64YPP 65YPP 66YPP 67YPP 68YPP 69YPP 70YPP 71YPP 72YPP 73YPP 74YPP 75YPP 76YPP 77YPP 78YPP 79YPP 80YPP 81YPP 82YPP 83YPP 84YPP 85YPP 86YPP 87YPP 88YPP 89YPP 90YPP 91YPP 92YPP 93YPP 94YPP 95YPP 96YPP 97YPP 98YPP 99YPP 001YSP 01YSP 02YSP 03YSP 04YSP 05YSP 06YSP 07YSP 08YSP 09YSP 10YSP 11YSP 12YSP 13YSP 14YSP 15YSP 16YSP 17YSP 18YSP 19YSP 20YSP 21YSP 22YSP 23YSP 24YSP 25YSP 26YSP 27YSP 28YSP 29YSP 30YSP 31YSP 32YSP 33YSP 34YSP 35YSP 36YSP 37YSP 38YSP 39YSP 40YSP 41YSP 42YSP 43YSP 44YSP 45YSP 46YSP 47YSP 48YSP 49YSP 50YSP 51YSP 52YSP 53YSP 54YSP 55YSP 56YSP 57YSP 58YSP 59YSP 60YSP 61YSP 62YSP 63YSP 64YSP 65YSP 66YSP 67YSP 68YSP 69YSP 70YSP 71YSP 72YSP 73YSP 74YSP 75YSP 76YSP 77YSP 78YSP 79YSP 80YSP 81YSP 82YSP 83YSP 84YSP 85YSP 86YSP 87YSP 88YSP 89YSP 90YSP 91YSP 92YSP 93YSP 94YSP 95YSP 96YSP 97YSP 98YSP 99YSP
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1530-1570nm
Reflective Channel Wavelength 960-990nm
Signal/Pump Insertion Loss <=1.3dB (Single Stage), <=1.4dB (Dual Stage) /<=0.8dB
Signal Isolation >=28dB (Single Stage), >=45dB (Dual Stage)
Signal Tap Ratio 1%, 2%, 5%, 10%, 20%, 30%, 40%, 50%
Signal/Pump Wavelength Isolation >=25dB/>=12dB
Return Loss >=45dB
Extinction Ratio >=18dB
Fiber Type (Signal) PM1550 Fiber or 10/125um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Fiber Type (Commom/Pump/Tap) Common: Same Fiber or PM980 Fiber
Pump: Same Fiber, PM980 Fiber or HI1060 Fiber
Tap: Same Fiber or Corr. SM Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

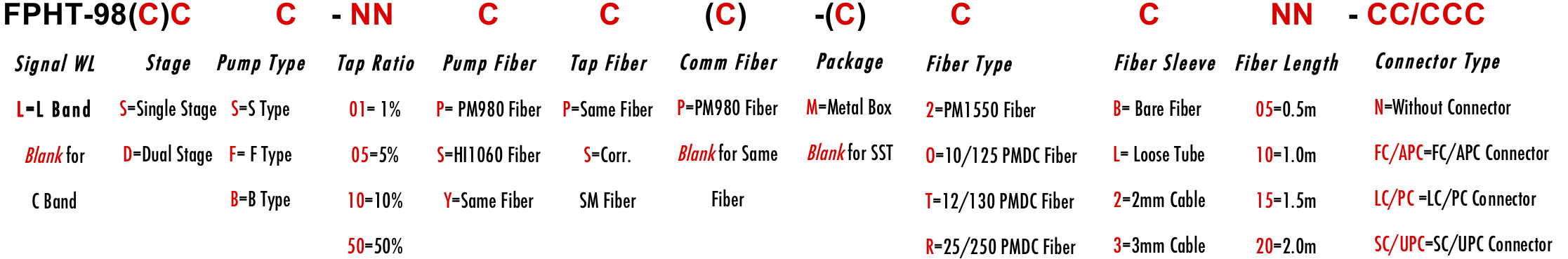

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
