830/1950nm WDM/Isolator/Tap Hybrid

DESCRIPTION
Haphit provides fiber based passive components. The WDM/Isolator/Tap Hybrid is made by micro-optics package technology with fiber in and fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation, high Signal Isolation and various Tap Ratio. The WDM/Isolator/Tap Hybrid will combine or split the signal light and pump light, while at the same time force the signal to transmit at single direction and tap the signal for monitoring purpose. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FHWT 830nm 820nm 840nm 835nm 825nm 1950nm 1940nm 1960nm 1930nm 1970nm 1955nm 1945nm 1935nm 1965nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador SMF-28 SMF28 HI780 780HP LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad FHWT 830nm 820nm 840nm 835nm 825nm 1950nm 1940nm 1960nm 1930nm 1970nm 1955nm 1945nm 1935nm 1965nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador SMF-28 SMF28 HI780 780HP LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad FHWT 830nm 820nm 840nm 835nm 825nm 1950nm 1940nm 1960nm 1930nm 1970nm 1955nm 1945nm 1935nm 1965nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador SMF-28 SMF28 HI780 780HP LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad 8319 S001Y S01Y S02Y S03Y S04Y S05Y S06Y S07Y S08Y S09Y S10Y S11Y S12Y S13Y S14Y S15Y S16Y S17Y S18Y S19Y S20Y S21Y S22Y S23Y S24Y S25Y S26Y S27Y S28Y S29Y S30Y S31Y S32Y S33Y S34Y S35Y S36Y S37Y S38Y S39Y S40Y S41Y S42Y S43Y S44Y S45Y S46Y S47Y S48Y S49Y S50Y S51Y S52Y S53Y S54Y S55Y S56Y S57Y S58Y S59Y S60Y S61Y S62Y S63Y S64Y S65Y S66Y S67Y S68Y S69Y S70Y S71Y S72Y S73Y S74Y S75Y S76Y S77Y S78Y S79Y S80Y S81Y S82Y S83Y S84Y S85Y S86Y S87Y S88Y S89Y S90Y S91Y S92Y S93Y S94Y S95Y S96Y S97Y S98Y S99Y D001Y D01Y D02Y D03Y D04Y D05Y D06Y D07Y D08Y D09Y D10Y D11Y D12Y D13Y D14Y D15Y D16Y D17Y D18Y D19Y D20Y D21Y D22Y D23Y D24Y D25Y D26Y D27Y D28Y D29Y D30Y D31Y D32Y D33Y D34Y D35Y D36Y D37Y D38Y D39Y D40Y D41Y D42Y D43Y D44Y D45Y D46Y D47Y D48Y D49Y D50Y D51Y D52Y D53Y D54Y D55Y D56Y D57Y D58Y D59Y D60Y D61Y D62Y D63Y D64Y D65Y D66Y D67Y D68Y D69Y D70Y D71Y D72Y D73Y D74Y D75Y D76Y D77Y D78Y D79Y D80Y D81Y D82Y D83Y D84Y D85Y D86Y D87Y D88Y D89Y D90Y D91Y D92Y D93Y D94Y D95Y D96Y D97Y D98Y D99Y S0017 S017 S027 S037 S047 S057 S067 S077 S087 S097 S107 S117 S127 S137 S147 S157 S167 S177 S187 S197 S207 S217 S227 S237 S247 S257 S267 S277 S287 S297 S307 S317 S327 S337 S347 S357 S367 S377 S387 S397 S407 S417 S427 S437 S447 S457 S467 S477 S487 S497 S507 S517 S527 S537 S547 S557 S567 S577 S587 S597 S607 S617 S627 S637 S647 S657 S667 S677 S687 S697 S707 S717 S727 S737 S747 S757 S767 S777 S787 S797 S807 S817 S827 S837 S847 S857 S867 S877 S887 S897 S907 S917 S927 S937 S947 S957 S967 S977 S987 S997 D0017 D017 D027 D037 D047 D057 D067 D077 D087 D097 D107 D117 D127 D137 D147 D157 D167 D177 D187 D197 D207 D217 D227 D237 D247 D257 D267 D277 D287 D297 D307 D317 D327 D337 D347 D357 D367 D377 D387 D397 D407 D417 D427 D437 D447 D457 D467 D477 D487 D497 D507 D517 D527 D537 D547 D557 D567 D577 D587 D597 D607 D617 D627 D637 D647 D657 D667 D677 D687 D697 D707 D717 D727 D737 D747 D757 D767 D777 D787 D797 D807 D817 D827 D837 D847 D857 D867 D877 D887 D897 D907 D917 D927 D937 D947 D957 D967 D977 D987 D997 S001H S01H S02H S03H S04H S05H S06H S07H S08H S09H S10H S11H S12H S13H S14H S15H S16H S17H S18H S19H S20H S21H S22H S23H S24H S25H S26H S27H S28H S29H S30H S31H S32H S33H S34H S35H S36H S37H S38H S39H S40H S41H S42H S43H S44H S45H S46H S47H S48H S49H S50H S51H S52H S53H S54H S55H S56H S57H S58H S59H S60H S61H S62H S63H S64H S65H S66H S67H S68H S69H S70H S71H S72H S73H S74H S75H S76H S77H S78H S79H S80H S81H S82H S83H S84H S85H S86H S87H S88H S89H S90H S91H S92H S93H S94H S95H S96H S97H S98H S99H D001H D01H D02H D03H D04H D05H D06H D07H D08H D09H D10H D11H D12H D13H D14H D15H D16H D17H D18H D19H D20H D21H D22H D23H D24H D25H D26H D27H D28H D29H D30H D31H D32H D33H D34H D35H D36H D37H D38H D39H D40H D41H D42H D43H D44H D45H D46H D47H D48H D49H D50H D51H D52H D53H D54H D55H D56H D57H D58H D59H D60H D61H D62H D63H D64H D65H D66H D67H D68H D69H D70H D71H D72H D73H D74H D75H D76H D77H D78H D79H D80H D81H D82H D83H D84H D85H D86H D87H D88H D89H D90H D91H D92H D93H D94H D95H D96H D97H D98H D99H
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1950+/-20nm
Reflective Channel Wavelength 830+/-10nm
Signal/Pump Insertion Loss <=1.8dB (Single Stage), <=2.2dB (Dual Stage) /<=1.3dB
Signal Isolation >=10dB (Single Stage), >=25dB (Dual Stage)
Signal Tap Ratio 1%, 2%, 5%, 10%, 20%, 30%, 40%, 50%
Signal/Pump Wavelength Isolation >=25dB/>=12dB
Return Loss >=45dB
PDL <=0.2dB
Fiber Type (Common&Signal&Tap) SMF-28 Fiber or SM1950 Fiber
10/130um DC Fiber or 25/250um DC Fiber
Fiber Type (Pump) Same Fiber, 780HP Fiber or HI780 Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

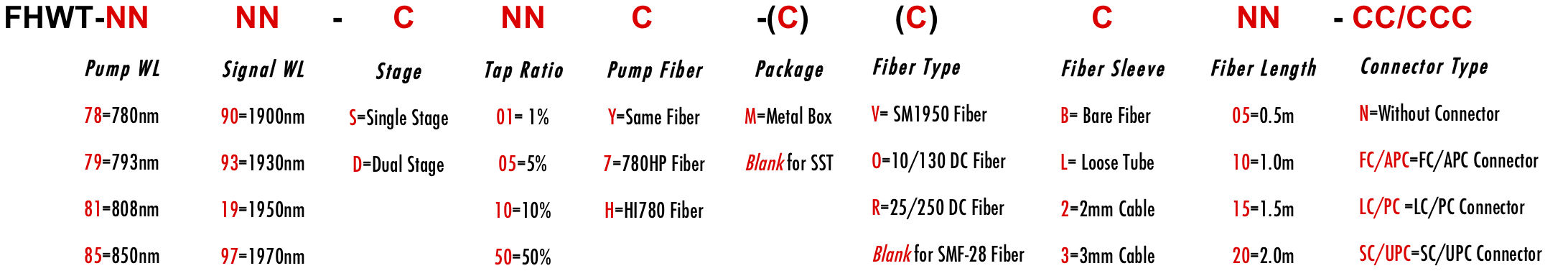

ORDERING INFORMATION/PART NUMBER(PN)
