850/1900nm WDM/Isolator/Tap Hybrid for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The WDM/Isolator/Tap Hybrid is made by micro-optics package technology with fiber in and fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation, high Signal Isolation and various Tap Ratio. The WDM/Isolator/Tap Hybrid will combine or split the signal light and pump light, while at the same time force the signal to transmit at single direction and tap the signal for monitoring purpose. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FHWT 850nm 840nm 860nm 855nm 845nm 1900nm 1905nm 1895nm 1890nm 1910nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador SMF-28 SMF28 HI780 780HP LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FHWT 850nm 840nm 860nm 855nm 845nm 1900nm 1905nm 1895nm 1890nm 1910nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador SMF-28 SMF28 HI780 780HP LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FHWT 850nm 840nm 860nm 855nm 845nm 1900nm 1905nm 1895nm 1890nm 1910nm WDM Filter Wavelength division Isolator Hybrid Iso HYB HYBR HY HB isolation isolate isolateur isolater filtre filtro Multiplexer Demux Combiner Divide Splitter Tap Coupler coupleur dieses Acoplador SMF-28 SMF28 HI780 780HP LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 8590 S001Y S01Y S02Y S03Y S04Y S05Y S06Y S07Y S08Y S09Y S10Y S11Y S12Y S13Y S14Y S15Y S16Y S17Y S18Y S19Y S20Y S21Y S22Y S23Y S24Y S25Y S26Y S27Y S28Y S29Y S30Y S31Y S32Y S33Y S34Y S35Y S36Y S37Y S38Y S39Y S40Y S41Y S42Y S43Y S44Y S45Y S46Y S47Y S48Y S49Y S50Y S51Y S52Y S53Y S54Y S55Y S56Y S57Y S58Y S59Y S60Y S61Y S62Y S63Y S64Y S65Y S66Y S67Y S68Y S69Y S70Y S71Y S72Y S73Y S74Y S75Y S76Y S77Y S78Y S79Y S80Y S81Y S82Y S83Y S84Y S85Y S86Y S87Y S88Y S89Y S90Y S91Y S92Y S93Y S94Y S95Y S96Y S97Y S98Y S99Y D001Y D01Y D02Y D03Y D04Y D05Y D06Y D07Y D08Y D09Y D10Y D11Y D12Y D13Y D14Y D15Y D16Y D17Y D18Y D19Y D20Y D21Y D22Y D23Y D24Y D25Y D26Y D27Y D28Y D29Y D30Y D31Y D32Y D33Y D34Y D35Y D36Y D37Y D38Y D39Y D40Y D41Y D42Y D43Y D44Y D45Y D46Y D47Y D48Y D49Y D50Y D51Y D52Y D53Y D54Y D55Y D56Y D57Y D58Y D59Y D60Y D61Y D62Y D63Y D64Y D65Y D66Y D67Y D68Y D69Y D70Y D71Y D72Y D73Y D74Y D75Y D76Y D77Y D78Y D79Y D80Y D81Y D82Y D83Y D84Y D85Y D86Y D87Y D88Y D89Y D90Y D91Y D92Y D93Y D94Y D95Y D96Y D97Y D98Y D99Y H001Y H01Y H02Y H03Y H04Y H05Y H06Y H07Y H08Y H09Y H10Y H11Y H12Y H13Y H14Y H15Y H16Y H17 Y H18Y H19Y H20Y H21Y H22Y H23Y H24Y H25Y H26Y H27Y H28Y H29Y H30Y H31Y H32Y H33Y H34Y H35Y H36Y H37Y H38Y H39Y H40Y H41Y H42Y H43Y H44Y H45Y H46Y H47Y H48Y H49Y H50Y H51Y H52Y H53Y H54Y H55Y H56Y H57Y H58Y H59Y H60Y H61Y H62Y H63Y H64Y H65Y H66Y H67Y H68Y H69Y H70Y H71Y H72Y H73Y H74Y H75Y H76Y H77Y H78Y H79Y H80Y H81Y H82Y H83Y H84Y H85Y H86Y H87Y H88Y H89Y H90Y H91Y H92Y H93Y H94Y H95Y H96Y H97Y H98Y H99Y S0017 S017 S027 S037 S047 S057 S067 S077 S087 S097 S107 S117 S127 S137 S147 S157 S167 S177 S187 S197 S207 S217 S227 S237 S247 S257 S267 S277 S287 S297 S307 S317 S327 S337 S347 S357 S367 S377 S387 S397 S407 S417 S427 S437 S447 S457 S467 S477 S487 S497 S507 S517 S527 S537 S547 S557 S567 S577 S587 S597 S607 S617 S627 S637 S647 S657 S667 S677 S687 S697 S707 S717 S727 S737 S747 S757 S767 S777 S787 S797 S807 S817 S827 S837 S847 S857 S867 S877 S887 S897 S907 S917 S927 S937 S947 S957 S967 S977 S987 S997 D0017 D017 D027 D037 D047 D057 D067 D077 D087 D097 D107 D117 D127 D137 D147 D157 D167 D177 D187 D197 D207 D217 D227 D237 D247 D257 D267 D277 D287 D297 D307 D317 D327 D337 D347 D357 D367 D377 D387 D397 D407 D417 D427 D437 D447 D457 D467 D477 D487 D497 D507 D517 D527 D537 D547 D557 D567 D577 D587 D597 D607 D617 D627 D637 D647 D657 D667 D677 D687 D697 D707 D717 D727 D737 D747 D757 D767 D777 D787 D797 D807 D817 D827 D837 D847 D857 D867 D877 D887 D897 D907 D917 D927 D937 D947 D957 D967 D977 D987 D997 H0017 H017 H027 H037 H047 H057 H067 H077 H087 H097 H107 H117 H127 H137 H147 H157 H167 H17 7 H187 H197 H207 H217 H227 H237 H247 H257 H267 H277 H287 H297 H307 H317 H327 H337 H347 H357 H367 H377 H387 H397 H407 H417 H427 H437 H447 H457 H467 H477 H487 H497 H507 H517 H527 H537 H547 H557 H567 H577 H587 H597 H607 H617 H627 H637 H647 H657 H667 H677 H687 H697 H707 H717 H727 H737 H747 H757 H767 H777 H787 H797 H807 H817 H827 H837 H847 H857 H867 H877 H887 H897 H907 H917 H927 H937 H947 H957 H967 H977 H987 H997 S001H S01H S02H S03H S04H S05H S06H S07H S08H S09H S10H S11H S12H S13H S14H S15H S16H S17H S18H S19H S20H S21H S22H S23H S24H S25H S26H S27H S28H S29H S30H S31H S32H S33H S34H S35H S36H S37H S38H S39H S40H S41H S42H S43H S44H S45H S46H S47H S48H S49H S50H S51H S52H S53H S54H S55H S56H S57H S58H S59H S60H S61H S62H S63H S64H S65H S66H S67H S68H S69H S70H S71H S72H S73H S74H S75H S76H S77H S78H S79H S80H S81H S82H S83H S84H S85H S86H S87H S88H S89H S90H S91H S92H S93H S94H S95H S96H S97H S98H S99H D001H D01H D02H D03H D04H D05H D06H D07H D08H D09H D10H D11H D12H D13H D14H D15H D16H D17H D18H D19H D20H D21H D22H D23H D24H D25H D26H D27H D28H D29H D30H D31H D32H D33H D34H D35H D36H D37H D38H D39H D40H D41H D42H D43H D44H D45H D46H D47H D48H D49H D50H D51H D52H D53H D54H D55H D56H D57H D58H D59H D60H D61H D62H D63H D64H D65H D66H D67H D68H D69H D70H D71H D72H D73H D74H D75H D76H D77H D78H D79H D80H D81H D82H D83H D84H D85H D86H D87H D88H D89H D90H D91H D92H D93H D94H D95H D96H D97H D98H D99H H001H H01H H02H H03H H04H H05H H06H H07H H08H H09H H10H H11H H12H H13H H14H H15H H16H H17 H H18H H19H H20H H21H H22H H23H H24H H25H H26H H27H H28H H29H H30H H31H H32H H33H H34H H35H H36H H37H H38H H39H H40H H41H H42H H43H H44H H45H H46H H47H H48H H49H H50H H51H H52H H53H H54H H55H H56H H57H H58H H59H H60H H61H H62H H63H H64H H65H H66H H67H H68H H69H H70H H71H H72H H73H H74H H75H H76H H77H H78H H79H H80H H81H H82H H83H H84H H85H H86H H87H H88H H89H H90H H91H H92H H93H H94H H95H H96H H97H H98H H99H
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1900+/-10nm
Reflective Channel Wavelength 850+/-10nm
Signal/Pump Insertion Loss <=1.8dB (Single Stage), <=2.2dB (Dual Stage)
<=2.2dB (H Stage) /<=1.3dB
Signal Isolation >=10dB (Single Stage), >=25dB (Dual Stage)
>=25dB (H Stage)
Signal Tap Ratio 1%, 2%, 5%, 10%, 20%, 30%, 40%, 50%
Signal/Pump Wavelength Isolation >=25dB/>=12dB
Return Loss >=45dB
PDL <=0.2dB
Fiber Type (Common&Signal&Tap) SMF-28 Fiber or SM1950 Fiber
10/130um DC Fiber or 25/250um DC Fiber
Fiber Type (Pump) Same Fiber, 780HP Fiber or HI780 Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

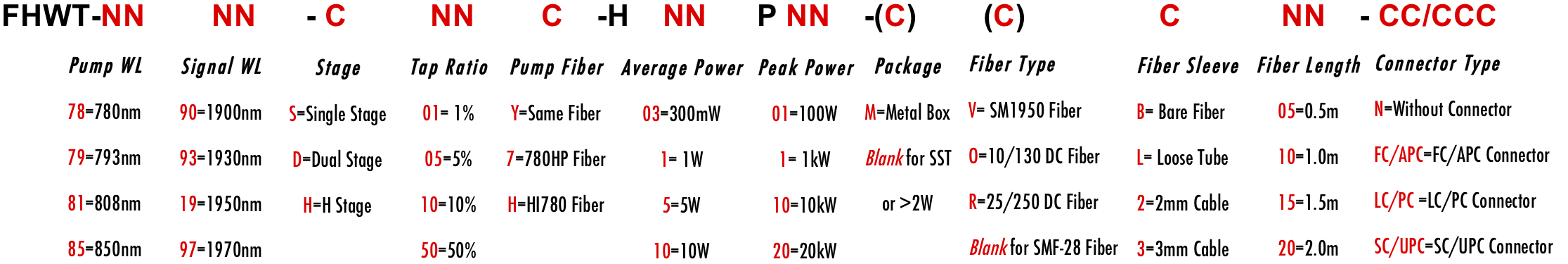

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
