915/1550nm WDM/Partial Fiber Mirror Hybrid

DESCRIPTION
Haphit provides fiber based passive components. The WDM/Partial Fiber Mirror (PFM) Hybrid is made by micro-optics package technology with fiber in and fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation, and various Reflective Ratio. The WDM/PFM Hybrid will combine or split the signal light and pump light, while at the same time reflect back a certain ratio signal light. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FFHP 915nm 910nm 920nm 905nm 925nm 1550nm 1530nm 1570nm 1540nm 1560nm WDM Filter Wavelength division Hybrid HYB HYBR HY HB filtre filtro Multiplexer Demux Divide Mirror reflective miroir spiegel Espejo Reflectante reflektierende compte SMF-28 SMF28 HI1060 HI1060XP HI780 780HP LMA 5/125um 6/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad FFHP 915nm 910nm 920nm 905nm 925nm 1550nm 1530nm 1570nm 1540nm 1560nm WDM Filter Wavelength division Hybrid HYB HYBR HY HB filtre filtro Multiplexer Demux Divide Mirror reflective miroir spiegel Espejo Reflectante reflektierende compte SMF-28 SMF28 HI1060 HI1060XP HI780 780HP LMA 5/125um 6/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad FFHP 915nm 910nm 920nm 905nm 925nm 1550nm 1530nm 1570nm 1540nm 1560nm WDM Filter Wavelength division Hybrid HYB HYBR HY HB filtre filtro Multiplexer Demux Divide Mirror reflective miroir spiegel Espejo Reflectante reflektierende compte SMF-28 SMF28 HI1060 HI1060XP HI780 780HP LMA 5/125um 6/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 9115 F001Y F01Y F02Y F03Y F04Y F05Y F06Y F07Y F08Y F09Y F10Y F11Y F12Y F13Y F14Y F15Y F16Y F17Y F18Y F19Y F20Y F21Y F22Y F23Y F24Y F25Y F26Y F27Y F28Y F29Y F30Y F31Y F32Y F33Y F34Y F35Y F36Y F37Y F38Y F39Y F40Y F41Y F42Y F43Y F44Y F45Y F46Y F47Y F48Y F49Y F50Y F51Y F52Y F53Y F54Y F55Y F56Y F57Y F58Y F59Y F60Y F61Y F62Y F63Y F64Y F65Y F66Y F67Y F68Y F69Y F70Y F71Y F72Y F73Y F74Y F75Y F76Y F77Y F78Y F79Y F80Y F81Y F82Y F83Y F84Y F85Y F86Y F87Y F88Y F89Y F90Y F91Y F92Y F93Y F94Y F95Y F96Y F97Y F98Y F99Y F001H F01H F02H F03H F04H F05H F06H F07H F08H F09H F10H F11H F12H F13H F14H F15H F16H F17H F18H F19H F20H F21H F22H F23H F24H F25H F26H F27H F28H F29H F30H F31H F32H F33H F34H F35H F36H F37H F38H F39H F40H F41H F42H F43H F44H F45H F46H F47H F48H F49H F50H F51H F52H F53H F54H F55H F56H F57H F58H F59H F60H F61H F62H F63H F64H F65H F66H F67H F68H F69H F70H F71H F72H F73H F74H F75H F76H F77H F78H F79H F80H F81H F82H F83H F84H F85H F86H F87H F88H F89H F90H F91H F92H F93H F94H F95H F96H F97H F98H F99H
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1530-1580nm
Reflective Channel Wavelength 915+/-10nm
Signal Excess Loss <=1.3dB
Pump Insertion Loss <=1.0dB
Signal Reflective Ratio 1%, 2%, 5%, 10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%
Signal/Pump Wavelength Isolation >=25dB/>=12dB
Return Loss >=45dB
PDL <=0.2dB
Fiber Type (Common & Signal) SMF-28 Fiber or 10/130um DC Fiber
12/130um DC Fiber or 20/130um DC Fiber
25/250um DC Fiber or 25/300um DC Fiber
Fiber Type (Pump) Same Fiber, HI780 Fiber or HI1060 Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

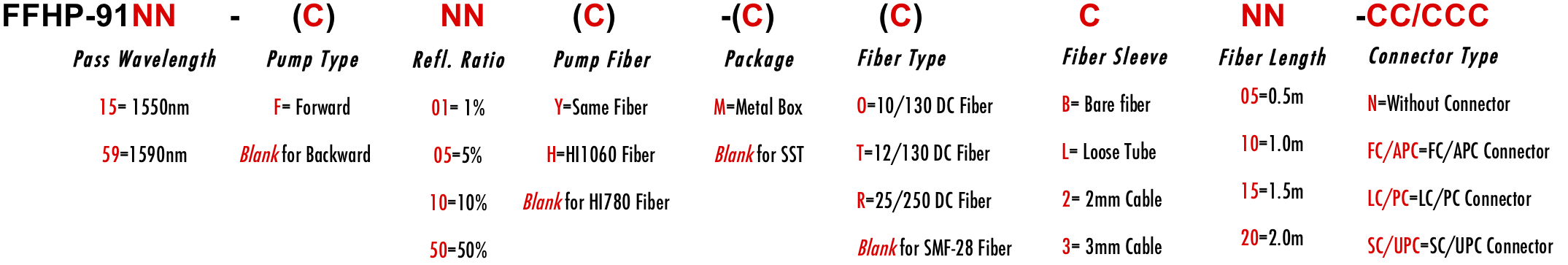

ORDERING INFORMATION/PART NUMBER(PN)
