1550/1970nm WDM/Partial Fiber Mirror Hybrid for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The WDM/Partial Fiber Mirror (PFM) Hybrid is made by micro-optics package technology with fiber in and fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation, and various Reflective Ratio. The WDM/PFM Hybrid will combine or split the signal light and pump light, while at the same time reflect back a certain ratio signal light. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FFHP 1550nm 1530nm 1570nm 1540nm 1560nm 1545nm 1555nm 1535nm 1565nm 1970nm 1960nm 1980nm 1950nm 1990nm 1965nm 1975nm 1955nm 1985nmm WDM Filter Wavelength division Hybrid HYB HYBR HY HB filtre filtro Multiplexer Demux Divide Mirror reflective miroir spiegel Espejo Reflectante reflektierende compte SMF-28 SMF28 LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FFHP 1550nm 1530nm 1570nm 1540nm 1560nm 1545nm 1555nm 1535nm 1565nm 1970nm 1960nm 1980nm 1950nm 1990nm 1965nm 1975nm 1955nm 1985nmm WDM Filter Wavelength division Hybrid HYB HYBR HY HB filtre filtro Multiplexer Demux Divide Mirror reflective miroir spiegel Espejo Reflectante reflektierende compte SMF-28 SMF28 LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FFHP 1550nm 1530nm 1570nm 1540nm 1560nm 1545nm 1555nm 1535nm 1565nm 1970nm 1960nm 1980nm 1950nm 1990nm 1965nm 1975nm 1955nm 1985nmm WDM Filter Wavelength division Hybrid HYB HYBR HY HB filtre filtro Multiplexer Demux Divide Mirror reflective miroir spiegel Espejo Reflectante reflektierende compte SMF-28 SMF28 LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 1597 F001S F01S F02S F03S F04S F05S F06S F07S F08S F09S F10S F11S F12S F13S F14S F15S F16S F17S F18S F19S F20S F21S F22S F23S F24S F25S F26S F27S F28S F29S F30S F31S F32S F33S F34S F35S F36S F37S F38S F39S F40S F41S F42S F43S F44S F45S F46S F47S F48S F49S F50S F51S F52S F53S F54S F55S F56S F57S F58S F59S F60S F61S F62S F63S F64S F65S F66S F67S F68S F69S F70S F71S F72S F73S F74S F75S F76S F77S F78S F79S F80S F81S F82S F83S F84S F85S F86S F87S F88S F89S F90S F91S F92S F93S F94S F95S F96S F97S F98S F99S
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 1970+/-20nm
Reflective Channel Wavelength 1550+/-20nm
Signal Excess Loss <=1.5dB
Pump Insertion Loss <=0.8dB
Signal Reflective Ratio 1%, 2%, 5%, 10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%
Signal/Pump Wavelength Isolation >=25dB/>=12dB
Return Loss >=45dB
PDL <=0.2dB
Fiber Type (Common & Signal) SMF-28 Fiber or SM1950 Fiber
10/130um DC Fiber or 25/250um DC Fiber
Fiber Type (Pump) Same Fiber or SMF-28 Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

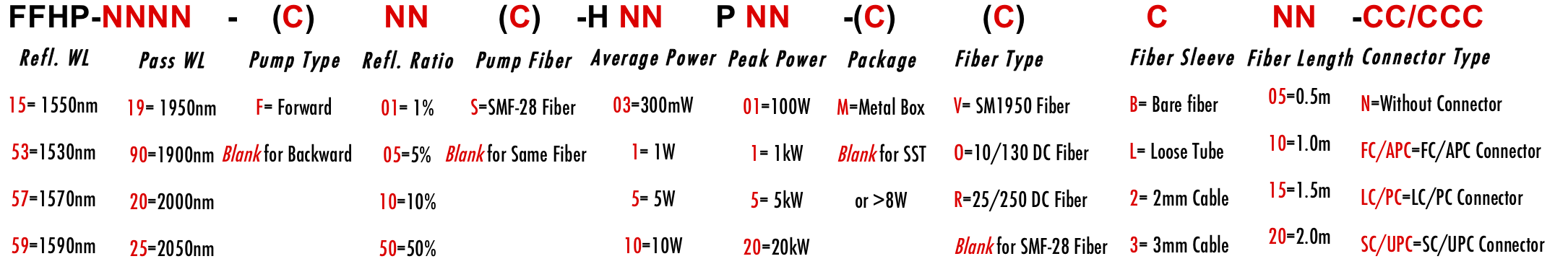

ORDERING INFORMATION/PART NUMBER(PN)
