1590/2070nm High Power WDM/Partial Fiber Mirror Hybrid
DESCRIPTION
Haphit provides fiber based passive components. The WDM/Partial Fiber Mirror (PFM) Hybrid is made by micro-optics package technology with fiber in and fiber out. It features Flat and Wide Spectrum, high Wavelength Isolation, and various Reflective Ratio. The WDM/PFM Hybrid will combine or split the signal light and pump light, while at the same time reflect back a certain ratio signal light. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FFHP 1590nm 1570nm 1610nm 1580nm 1600nm 1595nm 1585nm 1575nm 1605nm 2070nm 2060nm 2080nm 2075nm 2065nm WDM Filter Wavelength division Hybrid HYB HYBR HY HB filtre filtro Multiplexer Demux Divide Mirror reflective miroir spiegel Espejo Reflectante reflektierende compte SMF-28 SMF28 LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  Watt Watts HP CW Continuous Wave FFHP 1590nm 1570nm 1610nm 1580nm 1600nm 1595nm 1585nm 1575nm 1605nm 2070nm 2060nm 2080nm 2075nm 2065nm WDM Filter Wavelength division Hybrid HYB HYBR HY HB filtre filtro Multiplexer Demux Divide Mirror reflective miroir spiegel Espejo Reflectante reflektierende compte SMF-28 SMF28 LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  Watt Watts HP CW Continuous Wave FFHP 1590nm 1570nm 1610nm 1580nm 1600nm 1595nm 1585nm 1575nm 1605nm 2070nm 2060nm 2080nm 2075nm 2065nm WDM Filter Wavelength division Hybrid HYB HYBR HY HB filtre filtro Multiplexer Demux Divide Mirror reflective miroir spiegel Espejo Reflectante reflektierende compte SMF-28 SMF28 LMA SM1950 SM2000 8/125um 10/125um 10/130um 25/250um SC Single Clad Cladding DC Double Clad High Power 1W 2W 3W 5W 10W  Watt Watts HP CW Continuous Wave 5927 F001S F01S F02S F03S F04S F05S F06S F07S F08S F09S F10S F11S F12S F13S F14S F15S F16S F17S F18S F19S F20S F21S F22S F23S F24S F25S F26S F27S F28S F29S F30S F31S F32S F33S F34S F35S F36S F37S F38S F39S F40S F41S F42S F43S F44S F45S F46S F47S F48S F49S F50S F51S F52S F53S F54S F55S F56S F57S F58S F59S F60S F61S F62S F63S F64S F65S F66S F67S F68S F69S F70S F71S F72S F73S F74S F75S F76S F77S F78S F79S F80S F81S F82S F83S F84S F85S F86S F87S F88S F89S F90S F91S F92S F93S F94S F95S F96S F97S F98S F99S
TYPICAL SPECIFICATIONS
Pass Channel Wavelength 2070+/-10nm
Reflective Channel Wavelength 1590+/-20nm
Signal Excess Loss <=1.5dB
Pump Insertion Loss <=0.8dB
Signal Reflective Ratio 1%, 2%, 5%, 10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%
Signal/Pump Wavelength Isolation >=25dB/>=12dB
Return Loss >=45dB
PDL <=0.2dB
Fiber Type (Common & Signal) SMF-28 Fiber or SM1950 Fiber
10/130um DC Fiber or 25/250um DC Fiber
Fiber Type (Pump) Same Fiber or SMF-28 Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W
Operating Temperature 0~50degreeC

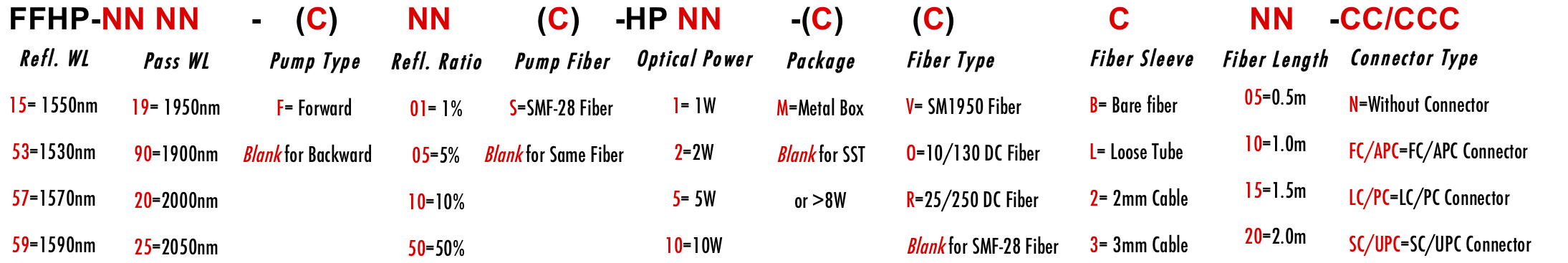

ORDERING INFORMATION/PART NUMBER(PN)
