1053nm Singlemode PM Fiber Bandpass Filter for Pulse Power

Haphit provides fiber based passive components. The Bandpass Filter is made by thin film coating and micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features flat-top spectrum, high Suppression Ratio and high Extinction Ratio. The Bandpass Filter will pass the signal light while block the unwanted/ASE light. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Y Type or X type is strongly recommended to guide out high power ASE/unwanted light out. Customer can select only slow axis working (High ER Type) or both axis working option. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
Center Wavelength 1053nm
Min. Bandwidth@0.5dB 2nm 4nm
Configuration D Type (2-port), Y Type (3-port), X Type (4-port)
Insertion Loss <=1.2dB (Standard) <=1.4dB (High ER Type)
Wavelength Suppression >=25dB
Return Loss >=50dB
Extinction Ratio >=18dB (Standard), >=20dB (High ER Type)
Fiber Type PM980 Fiber, PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC
  Standard specifications and
design parameters

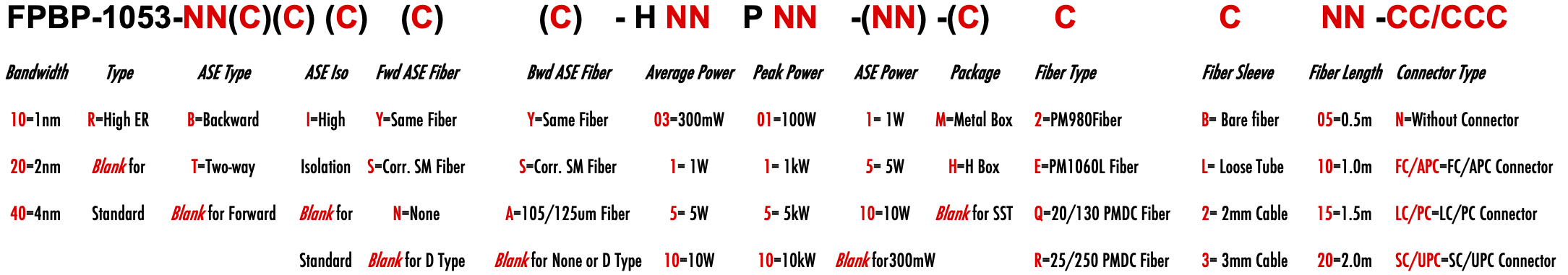

Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:

Comment/Other Information:
