1540nm PM Bandpass Filter/Isolator Hybrid for Pulse Power (<7nm BW)

DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Isolator Hybrid is made by thin film coating and micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features flat-top spectrum, high Suppression Ratio, high Extinction Ratio and high Isolation. The Bandpass Filter/Isolator Hybrid will pass the signal light while block both the unwanted/ASE light and backward signal. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Y Type or X type is strongly recommended to guide out high power ASE/unwanted light out. Customer can select only slow axis working or both axis working option. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FHBP 1540nm PM Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 2nm 4nm 5nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FHBP 1540nm PM Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 2nm 4nm 5nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FHBP 1540nm PM Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 2nm 4nm 5nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP S20FSYY S20FS5Y S20FSY5 S20FSAY S20FSYA S20BSYY S20BS5Y S20BSY5 S20BSAY S20BSYA S20TSYY S20TS5Y S20TSY5 S20TSAY S20TSYA D20FSYY D20FS5Y D20FSY5 D20FSAY D20FSYA D20BSYY D20BS5Y D20BSY5 D20BSAY D20BSYA D20TSYY D20TS5Y D20TSY5 D20TSAY D20TSYA S20FFYY S20FF5Y S20FFY5 S20FFAY S20FFYA S20BFYY S20BF5Y S20BFY5 S20BFAY S20BFYA S20TFYY S20TF5Y S20TFY5 S20TFAY S20TFYA D20FFYY D20FF5Y D20FFY5 D20FFAY D20FFYA D20BFYY D20BF5Y D20BFY5 D20BFAY D20BFYA D20TFYY D20TF5Y D20TFY5 D20TFAY D20TFYA S40FSYY S40FS5Y S40FSY5 S40FSAY S40FSYA S40BSYY S40BS5Y S40BSY5 S40BSAY S40BSYA S40TSYY S40TS5Y S40TSY5 S40TSAY S40TSYA D40FSYY D40FS5Y D40FSY5 D40FSAY D40FSYA D40BSYY D40BS5Y D40BSY5 D40BSAY D40BSYA D40TSYY D40TS5Y D40TSY5 D40TSAY D40TSYA S40FFYY S40FF5Y S40FFY5 S40FFAY S40FFYA S40BFYY S40BF5Y S40BFY5 S40BFAY S40BFYA S40TFYY S40TF5Y S40TFY5 S40TFAY S40TFYA D40FFYY D40FF5Y D40FFY5 D40FFAY D40FFYA D40BFYY D40BF5Y D40BFY5 D40BFAY D40BFYA D40TFYY D40TF5Y D40TFY5 D40TFAY D40TFYA S50FSYY S50FS5Y S50FSY5 S50FSAY S50FSYA S50BSYY S50BS5Y S50BSY5 S50BSAY S50BSYA S50TSYY S50TS5Y S50TSY5 S50TSAY S50TSYA D50FSYY D50FS5Y D50FSY5 D50FSAY D50FSYA D50BSYY D50BS5Y D50BSY5 D50BSAY D50BSYA D50TSYY D50TS5Y D50TSY5 D50TSAY D50TSYA S50FFYY S50FF5Y S50FFY5 S50FFAY S50FFYA S50BFYY S50BF5Y S50BFY5 S50BFAY S50BFYA S50TFYY S50TF5Y S50TFY5 S50TFAY S50TFYA D50FFYY D50FF5Y D50FFY5 D50FFAY D50FFYA D50BFYY D50BF5Y D50BFY5 D50BFAY D50BFYA D50TFYY D50TF5Y D50TFY5 D50TFAY D50TFYA
TYPICAL SPECIFICATIONS
Center Wavelength 1540nm
Min. Bandwidth@0.5dB 2nm, 4nm, 5nm
Configuration D Type (2-port), Y Type (3-port), X Type (4-port)
Signal Isolation >=25dB (Single Stage) >=40dB (Dual Stage) >=20dB (H Stage)
Insertion Loss <=1.3dB (Single Stage) <=1.5dB (Dual Stage) <=1.8dB (H Stage)
Wavelength Suppression >=25dB
Return Loss >=45dB
Extinction Ratio >=18dB
Fiber Type PM1550 Fiber or 10/130um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~70degreeC

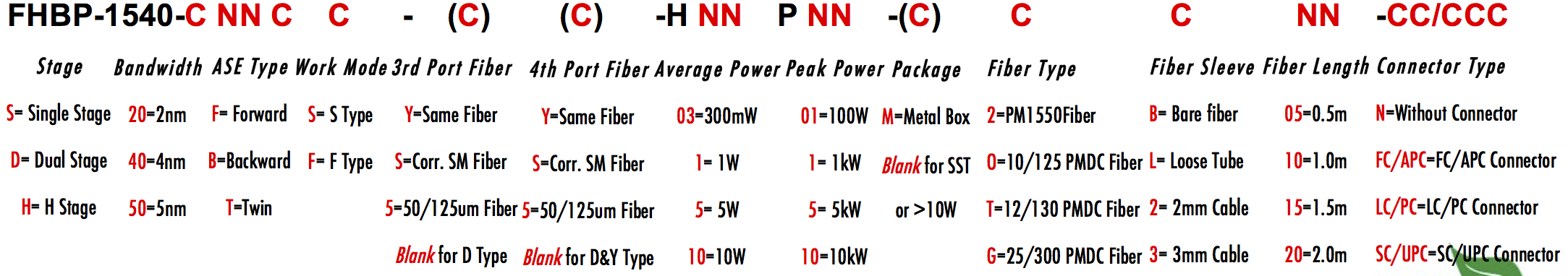

ORDERING INFORMATION/PART NUMBER(PN)
