1540nm PM Bandpass Filter/Isolator Hybrid (>=7nm BW)

DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Isolator Hybrid is made by thin film coating and micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features flat-top spectrum, high Suppression Ratio, high Extinction Ratio and high Isolation. The Bandpass Filter/Isolator Hybrid will pass the signal light while block both the unwanted/ASE light and backward signal. Customer can select only slow axis working or both axis working option. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FHBP 1540nm PM Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 7nm 10nm 15nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda FHBP 1540nm PM Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 7nm 10nm 15nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda FHBP 1540nm PM Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 7nm 10nm 15nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda S70FSYY S70FS5Y S70FSY5 S70FSAY S70FSYA S70BSYY S70BS5Y S70BSY5 S70BSAY S70BSYA S70TSYY S70TS5Y S70TSY5 S70TSAY S70TSYA D70FSYY D70FS5Y D70FSY5 D70FSAY D70FSYA D70BSYY D70BS5Y D70BSY5 D70BSAY D70BSYA D70TSYY D70TS5Y D70TSY5 D70TSAY D70TSYA S70FFYY S70FF5Y S70FFY5 S70FFAY S70FFYA S70BFYY S70BF5Y S70BFY5 S70BFAY S70BFYA S70TFYY S70TF5Y S70TFY5 S70TFAY S70TFYA D70FFYY D70FF5Y D70FFY5 D70FFAY D70FFYA D70BFYY D70BF5Y D70BFY5 D70BFAY D70BFYA D70TFYY D70TF5Y D70TFY5 D70TFAY D70TFYA S100FSYY S100FS5Y S100FSY5 S100FSAY S100FSYA S100BSYY S100BS5Y S100BSY5 S100BSAY S100BSYA S100TSYY S100TS5Y S100TSY5 S100TSAY S100TSYA D100FSYY D100FS5Y D100FSY5 D100FSAY D100FSYA D100BSYY D100BS5Y D100BSY5 D100BSAY D100BSYA D100TSYY D100TS5Y D100TSY5 D100TSAY D100TSYA S100FFYY S100FF5Y S100FFY5 S100FFAY S100FFYA S100BFYY S100BF5Y S100BFY5 S100BFAY S100BFYA S100TFYY S100TF5Y S100TFY5 S100TFAY S100TFYA D100FFYY D100FF5Y D100FFY5 D100FFAY D100FFYA D100BFYY D100BF5Y D100BFY5 D100BFAY D100BFYA D100TFYY D100TF5Y D100TFY5 D100TFAY D100TFYA S150FSYY S150FS5Y S150FSY5 S150FSAY S150FSYA S150BSYY S150BS5Y S150BSY5 S150BSAY S150BSYA S150TSYY S150TS5Y S150TSY5 S150TSAY S150TSYA D150FSYY D150FS5Y D150FSY5 D150FSAY D150FSYA D150BSYY D150BS5Y D150BSY5 D150BSAY D150BSYA D150TSYY D150TS5Y D150TSY5 D150TSAY D150TSYA S150FFYY S150FF5Y S150FFY5 S150FFAY S150FFYA S150BFYY S150BF5Y S150BFY5 S150BFAY S150BFYA S150TFYY S150TF5Y S150TFY5 S150TFAY S150TFYA D150FFYY D150FF5Y D150FFY5 D150FFAY D150FFYA D150BFYY D150BF5Y D150BFY5 D150BFAY D150BFYA D150TFYY D150TF5Y D150TFY5 D150TFAY D150TFYA
TYPICAL SPECIFICATIONS
Center Wavelength 1540nm
Min. Bandwidth@0.5dB 7nm, 10nm, 15nm
Configuration D Type (2-port), Y Type (3-port), X Type (4-port)
Signal Isolation >=25dB (Single Stage) >=40dB (Dual Stage)
Insertion Loss <=1.3dB (Single Stage) <=1.5dB (Dual Stage)
Wavelength Suppression >=25dB
Return Loss >=45dB
Extinction Ratio >=20dB
Fiber Type PM1550 Fiber or 10/130um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~70degreeC

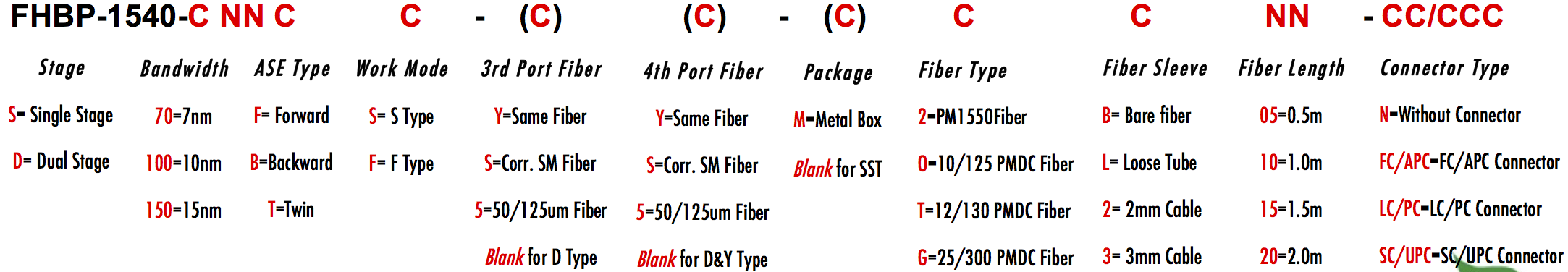

ORDERING INFORMATION/PART NUMBER(PN)
