1570nm Bandpass Filter/Isolator Hybrid for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Isolator Hybrid is made by thin film coating and micro-optics package technology with fiber in and fiber out. It features flat-top spectrum, high Suppression Ratio and high Isolation. The Bandpass Filter/Isolator Hybrid will pass the signal light while block both the unwanted/ASE light and backward signal. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Y Type or X type is strongly recommended to guide out high power ASE/unwanted light out. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FHBI 1570nm Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 4nm 9nm 15nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FHBI 1570nm Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 4nm 9nm 15nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FHBI 1570nm Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 4nm 9nm 15nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP S40FYY S40F5Y S40FY5 S40FAY S40FYA S40BYY S40B5Y S40BY5 S40BAY S40BYA S40TYY S40T5Y S40TY5 S40TAY S40TYA D40FYY D40F5Y D40FY5 D40FAY D40FYA D40BYY D40B5Y D40BY5 D40BAY D40BYA D40TYY D40T5Y D40TY5 D40TAY D40TYA H40FYY H40F5Y H40FY5 H40FAY H40FYA H40BYY H40B5Y H40BY5 H40BAY H40BYA H40TYY H40T5Y H40TY5 H40TAY H40TYA S90FYY S90F5Y S90FY5 S90FAY S90FYA S90BYY S90B5Y S90BY5 S90BAY S90BYA S90TYY S90T5Y S90TY5 S90TAY S90TYA D90FYY D90F5Y D90FY5 D90FAY D90FYA D90BYY D90B5Y D90BY5 D90BAY D90BYA D90TYY D90T5Y D90TY5 D90TAY D90TYA H90FYY H90F5Y H90FY5 H90FAY H90FYA H90BYY H90B5Y H90BY5 H90BAY H90BYA H90TYY H90T5Y H90TY5 H90TAY H90TYA S150FYY S150F5Y S150FY5 S150FAY S150FYA S150BYY S150B5Y S150BY5 S150BAY S150BYA S150TYY S150T5Y S150TY5 S150TAY S150TYA D150FYY D150F5Y D150FY5 D150FAY D150FYA D150BYY D150B5Y D150BY5 D150BAY D150BYA D150TYY D150T5Y D150TY5 D150TAY D150TYA H150FYY H150F5Y H150FY5 H150FAY H150FYA H150BYY H150B5Y H150BY5 H150BAY H150BYA H150TYY H150T5Y H150TY5 H150TAY H150TYA
TYPICAL SPECIFICATIONS
Center Wavelength 1570nm
Min. Bandwidth@0.5dB 4nm 9nm 15nm
Configuration D Type (2-port), Y Type (3-port), X Type (4-port)
Signal Isolation >=25dB (Single Stage) >=40dB (Dual Stage) >=20dB (H Stage)
Insertion Loss <=1.3dB (Single Stage) <=1.5dB (Dual Stage) <=1.8dB (H Stage)
Wavelength Supression >=25dB
Return Loss >=45dB
PDL <=0.2dB
Fiber Type SMF-28 Fiber or 10/130um DC Fiber
12/130um DC Fiber or 20/130um DC Fiber
25/250um DC Fiber or 25/300um DC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~70degreeC

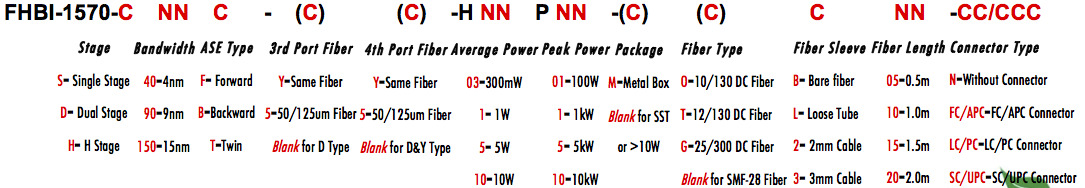

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
