1599nm Bandpass Filter/Isolator Hybrid

DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Isolator Hybrid is made by thin film coating and micro-optics package technology with fiber in and fiber out. It features flat-top spectrum, high Suppression Ratio and high Isolation. The Bandpass Filter/Isolator Hybrid will pass the signal light while block both the unwanted/ASE light and backward signal. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FHBI 1599nm Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 13nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type FHBI 1599nm Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 13nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type FHBI 1599nm Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 13nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type S130FYY S130F5Y S130FY5 S130FAY S130FYA S130BYY S130B5Y S130BY5 S130BAY S130BYA S130TYY S130T5Y S130TY5 S130TAY S130TYA D130FYY D130F5Y D130FY5 D130FAY D130FYA D130BYY D130B5Y D130BY5 D130BAY D130BYA D130TYY D130T5Y D130TY5 D130TAY D130TYA
TYPICAL SPECIFICATIONS
Center Wavelength 1599nm
Min. Bandwidth@0.5dB 13nm
Configuration D Type (2-port), Y Type (3-port), X Type (4-port)
Signal Isolation >=25dB (Single Stage) >=40dB (Dual Stage)
Insertion Loss <=1.3dB (Single Stage) <=1.5dB (Dual Stage)
Wavelength Supression >=25dB
Return Loss >=45dB
PDL <=0.2dB
Fiber Type SMF-28 Fiber or 10/130um DC Fiber
12/130um DC Fiber or 20/130um DC Fiber
25/250um DC Fiber or 25/300um DC Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~70degreeC

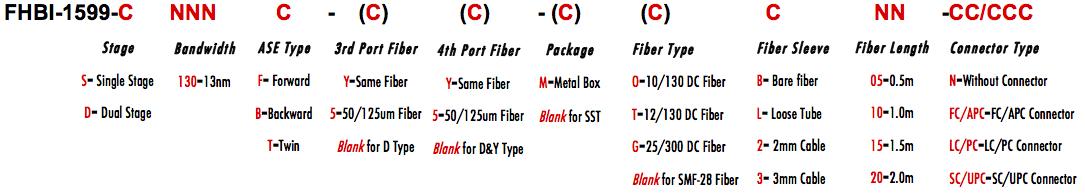

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
