2051nm Bandpass Filter/Isolator Hybrid

DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Isolator Hybrid is made by thin film coating and micro-optics package technology with fiber in and fiber out. It features flat-top spectrum, high Suppression Ratio and high Isolation. The Bandpass Filter/Isolator Hybrid will pass the signal light while block both the unwanted/ASE light and backward signal. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FHBI 2051nm Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 5nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type FHBI 2051nm Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 5nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type FHBI 2051nm Bandpass Filter Isolator Hybrid SM Singlemode BP Iso HYB HYBR HY HB isolation isolate isolateur isolater BPI filtre filtrar aislador hybride híbrido paso de banda bande passante Bandwidth 5nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type S50FYY S50F5Y S50FY5 S50FAY S50FYA S50BYY S50B5Y S50BY5 S50BAY S50BYA S50TYY S50T5Y S50TY5 S50TAY S50TYA D50FYY D50F5Y D50FY5 D50FAY D50FYA D50BYY D50B5Y D50BY5 D50BAY D50BYA D50TYY D50T5Y D50TY5 D50TAY D50TYA
TYPICAL SPECIFICATIONS
Center Wavelength 2051nm
Min. Bandwidth@0.5dB 5nm
Configuration D Type (2-port), Y Type (3-port), X Type (4-port)
Signal Isolation >=16dB (Single Stage) >=30dB (Dual Stage)
Insertion Loss <=1.6dB (Single Stage) <=1.9dB (Dual Stage)
Wavelength Suppression >=25dB
Return Loss >=45dB
PDL <=0.2dB
Fiber Type SMF-28 Fiber or SM1950 Fiber
10/130um DC Fiber or 25/250um DC Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

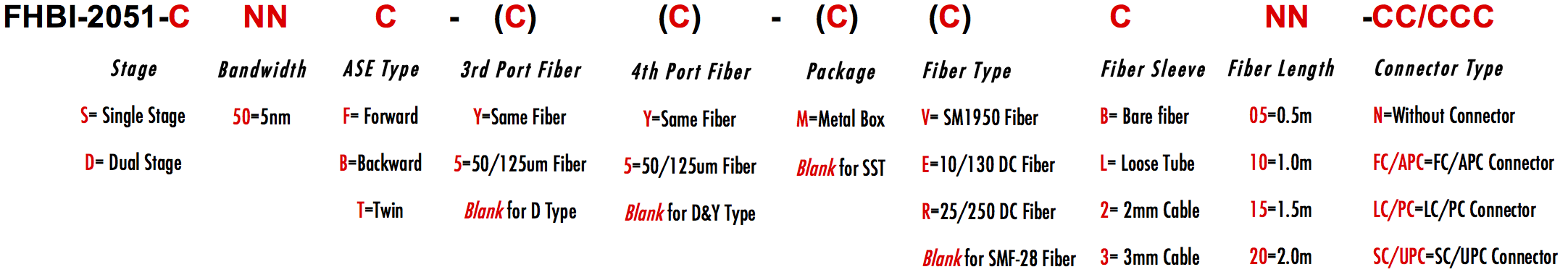

ORDERING INFORMATION/PART NUMBER(PN)
