1021nm High Power Bandpass Filter/Isolator Hybrid

DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Isolator Hybrid is made by thin film coating and micro-optics package technology with fiber in and fiber out. It features flat-top spectrum, high Suppression Ratio and high Isolation. The Bandpass Filter/Isolator Hybrid will pass the signal light while block both the unwanted/ASE light and backward signal. The high power version can withstand high continuous wave (CW) Power while maintaining high performance and stability. Y Type or X type is recommended to guide out high power ASE light or backward signal light out. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FHBI 1021nm High Power singlemode SM Fiber Bandpass Filter Isolator Hybrid Bandwidth Isolation 6nm 6.0nm singlemode fiber hybrid device of bandpass filter and isolator Single-Mode-Fasermischung für Bandpassfilter und Isolatoren Mélange de fibre optique monomode pour filtres passe-bande et isolateurs Yhden moduulin optinen yhdistelmä, jossa on läpikuultava suodatin ja eristäjä Dispositivo de mistura de fibra óptica monomodo para filtros e isoladores de passagem de banda Mezclador de fibra óptica monomodo para filtros de paso y aisladores Miscelatore di fibre ottiche monomodo per filtri passa-banda e isolatori Jednomodowe urz?dzenie mieszaj?ce ?wiat?owody z filtrem przej?ciowym i izolatorem Single-mode fiberblanding med pass-through-filter og isolering Single-mode glasvezelhybride met pass-through filters en isolators Jednomodevé optické hybridní za?ízení s filtrem a izolatorem Single-mode fiberblandade enheter med passfilter och isolerare Geçi? filtreleri ve karant?s? içeren tek modlu fiber kar???m kaynaklar? HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad or large mode area fiber fibre à simple gaine ou fibre à double gaine ou fibre à grande zone de mode ingle Clad-Faser oder Double Clad-Faser oder Large-Mode-Area-Faser ibra con revestimiento simple o fibra con revestimiento doble o fibra de área modal grande fibra de revestimento simples ou fibra de revestimento duplo ou fibra de área de modo grande ibra a rivestimento singolo o fibra a doppio rivestimento o fibra a grande area modale yksikerroksinen kuitu tai kaksinkertainen kuitu tai suurimuotoinen kuitu 2-port D Type 3-port Y Type 4-port X Type Type D à 2 ports Type Y à 3 ports Type X à 4 ports -Port-D-Typ 3-Port-Y-Typ 4-Port-X-Typ Tipo D de 2 puertos Tipo Y de 3 puertos Tipo X de 4 puertos Tipo D de 2 portas Tipo Y de 3 portas Tipo X de 4 portas ipo D a 2 porte Tipo Y a 3 porte Tipo X a 4 porte 2-porttinen D-tyyppi 3-porttinen Y-tyyppi 4-porttinen X-tyyppi High Power 1W 2W 3W 5W 10W  15W 20W 30W 40W 50W 60W 70W 80W 90W 100W in Watt Watts HP CW Continuous Wave haute puissance optique en watt avec onde continue alta potencia óptica en vatios con onda continua alta potência óptica em watt com onda contínua hohe optische Leistung in Watt mit Dauerstrich elevata potenza ottica in watt con onda continua korkea optinen teho watteina jatkuvalla aallolla FHBI 1021nm High Power singlemode SM Fiber Bandpass Filter Isolator Hybrid Bandwidth Isolation 6nm 6.0nm singlemode fiber hybrid device of bandpass filter and isolator Single-Mode-Fasermischung für Bandpassfilter und Isolatoren Mélange de fibre optique monomode pour filtres passe-bande et isolateurs Yhden moduulin optinen yhdistelmä, jossa on läpikuultava suodatin ja eristäjä Dispositivo de mistura de fibra óptica monomodo para filtros e isoladores de passagem de banda Mezclador de fibra óptica monomodo para filtros de paso y aisladores Miscelatore di fibre ottiche monomodo per filtri passa-banda e isolatori Jednomodowe urz?dzenie mieszaj?ce ?wiat?owody z filtrem przej?ciowym i izolatorem Single-mode fiberblanding med pass-through-filter og isolering Single-mode glasvezelhybride met pass-through filters en isolators Jednomodevé optické hybridní za?ízení s filtrem a izolatorem Single-mode fiberblandade enheter med passfilter och isolerare Geçi? filtreleri ve karant?s? içeren tek modlu fiber kar???m kaynaklar? HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad or large mode area fiber fibre à simple gaine ou fibre à double gaine ou fibre à grande zone de mode ingle Clad-Faser oder Double Clad-Faser oder Large-Mode-Area-Faser ibra con revestimiento simple o fibra con revestimiento doble o fibra de área modal grande fibra de revestimento simples ou fibra de revestimento duplo ou fibra de área de modo grande ibra a rivestimento singolo o fibra a doppio rivestimento o fibra a grande area modale yksikerroksinen kuitu tai kaksinkertainen kuitu tai suurimuotoinen kuitu 2-port D Type 3-port Y Type 4-port X Type Type D à 2 ports Type Y à 3 ports Type X à 4 ports -Port-D-Typ 3-Port-Y-Typ 4-Port-X-Typ Tipo D de 2 puertos Tipo Y de 3 puertos Tipo X de 4 puertos Tipo D de 2 portas Tipo Y de 3 portas Tipo X de 4 portas ipo D a 2 porte Tipo Y a 3 porte Tipo X a 4 porte 2-porttinen D-tyyppi 3-porttinen Y-tyyppi 4-porttinen X-tyyppi High Power 1W 2W 3W 5W 10W  15W 20W 30W 40W 50W 60W 70W 80W 90W 100W in Watt Watts HP CW Continuous Wave haute puissance optique en watt avec onde continue alta potencia óptica en vatios con onda continua alta potência óptica em watt com onda contínua hohe optische Leistung in Watt mit Dauerstrich elevata potenza ottica in watt con onda continua korkea optinen teho watteina jatkuvalla aallolla FHBI 1021nm High Power singlemode SM Fiber Bandpass Filter Isolator Hybrid Bandwidth Isolation 6nm 6.0nm singlemode fiber hybrid device of bandpass filter and isolator Single-Mode-Fasermischung für Bandpassfilter und Isolatoren Mélange de fibre optique monomode pour filtres passe-bande et isolateurs Yhden moduulin optinen yhdistelmä, jossa on läpikuultava suodatin ja eristäjä Dispositivo de mistura de fibra óptica monomodo para filtros e isoladores de passagem de banda Mezclador de fibra óptica monomodo para filtros de paso y aisladores Miscelatore di fibre ottiche monomodo per filtri passa-banda e isolatori Jednomodowe urz?dzenie mieszaj?ce ?wiat?owody z filtrem przej?ciowym i izolatorem Single-mode fiberblanding med pass-through-filter og isolering Single-mode glasvezelhybride met pass-through filters en isolators Jednomodevé optické hybridní za?ízení s filtrem a izolatorem Single-mode fiberblandade enheter med passfilter och isolerare Geçi? filtreleri ve karant?s? içeren tek modlu fiber kar???m kaynaklar? HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad or large mode area fiber fibre à simple gaine ou fibre à double gaine ou fibre à grande zone de mode ingle Clad-Faser oder Double Clad-Faser oder Large-Mode-Area-Faser ibra con revestimiento simple o fibra con revestimiento doble o fibra de área modal grande fibra de revestimento simples ou fibra de revestimento duplo ou fibra de área de modo grande ibra a rivestimento singolo o fibra a doppio rivestimento o fibra a grande area modale yksikerroksinen kuitu tai kaksinkertainen kuitu tai suurimuotoinen kuitu 2-port D Type 3-port Y Type 4-port X Type Type D à 2 ports Type Y à 3 ports Type X à 4 ports -Port-D-Typ 3-Port-Y-Typ 4-Port-X-Typ Tipo D de 2 puertos Tipo Y de 3 puertos Tipo X de 4 puertos Tipo D de 2 portas Tipo Y de 3 portas Tipo X de 4 portas ipo D a 2 porte Tipo Y a 3 porte Tipo X a 4 porte 2-porttinen D-tyyppi 3-porttinen Y-tyyppi 4-porttinen X-tyyppi High Power 1W 2W 3W 5W 10W  15W 20W 30W 40W 50W 60W 70W 80W 90W 100W in Watt Watts HP CW Continuous Wave haute puissance optique en watt avec onde continue alta potencia óptica en vatios con onda continua alta potência óptica em watt com onda contínua hohe optische Leistung in Watt mit Dauerstrich elevata potenza ottica in watt con onda continua korkea optinen teho watteina jatkuvalla aallolla 60Y 60YYY 60NYY 60IY 60IYYY 60INYY 60BY 60BNYY 60BYYY 60TY 60TYYY 60TNYY 60BIY 60BIYYY 60BINYY 60TIY 60TIYYY 60TINYY
TYPICAL SPECIFICATIONS
Center Wavelength 1021nm
Min. Bandwidth@0.5dB 6.0nm
Configuration D Type (2-port), Y Type (3-port), X Type (4-port)
ASE Direction F: Forward, B: Backward, T: Two-way
Insertion Loss@23degree Single Stage: <=1.5dB (Typical: 0.8dB)
Dual Stage: <=1.8dB (Typical: 1.0dB)
Signal Isolation@23degree Single Stage: >=22dB, Dual Stage: >=40dB
Stop Wavelength (ASE) Isolation >=25dB (Standard)
>=45dB (High Isolation)
Return Loss >=45dB
PDL <=0.3dB
Fiber Type HI1060 or 10/125um SC Fiber
10/125um DC Fiber or 15/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
Max. Optical Power (CW) 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W, 30W, 50W, 60W
Operating Temperature 0~50degreeC

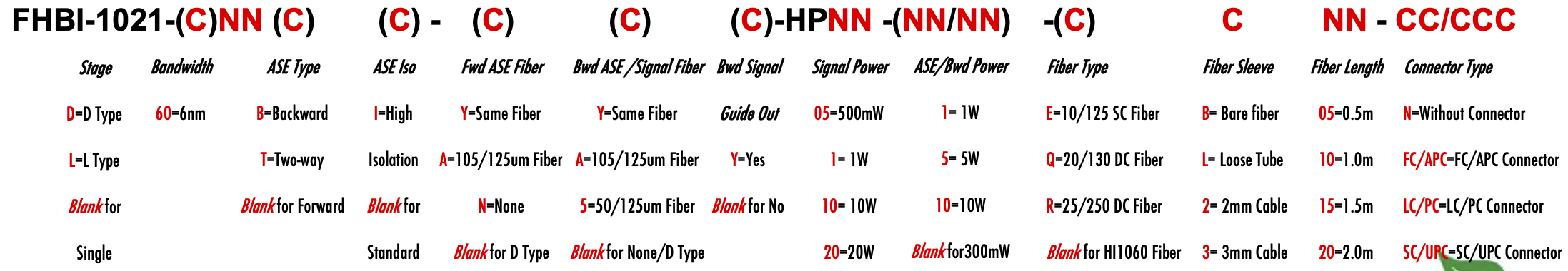

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
