1550nm High Power PM Bandpass Filter/Tap Hybrid (<7nm BW)

DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Tap Hybrid is made by thin film coating and micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features flat-top spectrum, high Suppression Ratio, high Extinction Ratio and various Split Ratio. The Bandpass Filter/Tap Hybrid will pass the signal light while block the unwanted/ASE light, at the same time tap a certain ratio of signal light and output. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. X type is recommended to guide out high power ASE/unwanted light out. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FPHB 1550nm PM Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 0.3nm 0.7nm 2nm 3nm 4nm 5nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave FPHB 1550nm PM Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 0.3nm 0.7nm 2nm 3nm 4nm 5nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave FPHB 1550nm PM Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 0.3nm 0.7nm 2nm 3nm 4nm 5nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave 03001F 03001X 0301F 0301X 0302F 0302X 0303F 0303X 0304F 0304X 03055 0305X 0310F 0310X 0315F 0315X 0320F 0320X 03255 0325X 0330F 0330X 0335F 0335X 0340F 0340X 03455 0345X 0350F 0350X 0355F 0355X 0360F 0360X 03655 0365X 0370F 0370X 0375F 0375X 0380F 0380X 03855 0385X 0390F 0390X 0395F 0395X 0396F 0396X 03975 0397X 0398F 0398X 0399F 0399X 07001F 07001X 0701F 0701X 0702F 0702X 0703F 0703X 0704F 0704X 07055 0705X 0710F 0710X 0715F 0715X 0720F 0720X 07255 0725X 0730F 0730X 0735F 0735X 0740F 0740X 07455 0745X 0750F 0750X 0755F 0755X 0760F 0760X 07655 0765X 0770F 0770X 0775F 0775X 0780F 0780X 07855 0785X 0790F 0790X 0795F 0795X 0796F 0796X 07975 0797X 0798F 0798X 0799F 0799X 20001F 20001X 2001F 2001X 2002F 2002X 2003F 2003X 2004F 2004X 20055 2005X 2010F 2010X 2015F 2015X 2020F 2020X 20255 2025X 2030F 2030X 2035F 2035X 2040F 2040X 20455 2045X 2050F 2050X 2055F 2055X 2060F 2060X 20655 2065X 2070F 2070X 2075F 2075X 2080F 2080X 20855 2085X 2090F 2090X 2095F 2095X 2096F 2096X 20975 2097X 2098F 2098X 2099F 2099X 30001F 30001X 3001F 3001X 3002F 3002X 3003F 3003X 3004F 3004X 30055 3005X 3010F 3010X 3015F 3015X 3020F 3020X 30255 3025X 3030F 3030X 3035F 3035X 3040F 3040X 30455 3045X 3050F 3050X 3055F 3055X 3060F 3060X 30655 3065X 3070F 3070X 3075F 3075X 3080F 3080X 30855 3085X 3090F 3090X 3095F 3095X 3096F 3096X 30975 3097X 3098F 3098X 3099F 3099X 40001F 40001X 4001F 4001X 4002F 4002X 4003F 4003X 4004F 4004X 40055 4005X 4010F 4010X 4015F 4015X 4020F 4020X 40255 4025X 4030F 4030X 4035F 4035X 4040F 4040X 40455 4045X 4050F 4050X 4055F 4055X 4060F 4060X 40655 4065X 4070F 4070X 4075F 4075X 4080F 4080X 40855 4085X 4090F 4090X 4095F 4095X 4096F 4096X 40975 4097X 4098F 4098X 4099F 4099X 50001F 50001X 5001F 5001X 5002F 5002X 5003F 5003X 5004F 5004X 50055 5005X 5010F 5010X 5015F 5015X 5020F 5020X 50255 5025X 5030F 5030X 5035F 5035X 5040F 5040X 50455 5045X 5050F 5050X 5055F 5055X 5060F 5060X 50655 5065X 5070F 5070X 5075F 5075X 5080F 5080X 50855 5085X 5090F 5090X 5095F 5095X 5096F 5096X 50975 5097X 5098F 5098X 5099F 5099X YY YS Y5 YA SY SS S5 SA 5Y 5S 55 5A AY AS A5 AA
TYPICAL SPECIFICATIONS
Center Wavelength 1550nm
Min. Bandwidth@0.5dB 0.3nm, 0.7nm, 2nm, 3nm, 4nm, 5nm
Tap Ratio 1+/-0.6%, 2+/-0.8%, 5+/-1.0%, 10%, 20%, 30%, 40%, 50%
Excess Loss <=1.8dB
Wavelength Suppression >=25dB
Return Loss >=50dB
Extinction Ratio >=18dB
Fiber Type PM1550 Fiber or 10/130um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W
Operating Temperature 0~50degreeC

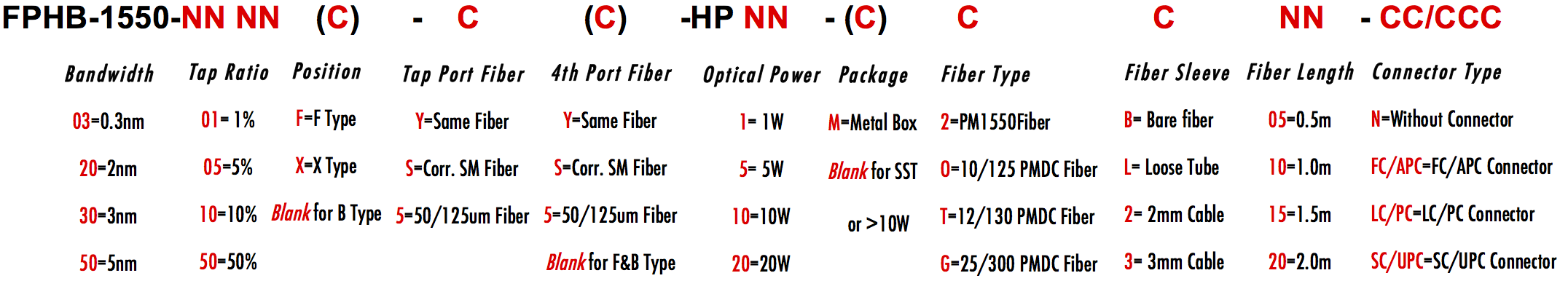

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
