1550nm Bandpass Filter/Tap Hybrid for Pulse Power (>=7nm BW)
DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Tap Hybrid is made by thin film coating and micro-optics package technology with fiber in and fiber out. It features flat-top spectrum, high Suppression Ratio and various Split Ratio. The Bandpass Filter/Tap Hybrid will pass the signal light while block the unwanted/ASE light, at the same time tap a certain ratio of signal light and output. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FHBT 1550nm Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 7nm 10nm 15nm 20nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FHBT 1550nm Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 7nm 10nm 15nm 20nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FHBT 1550nm Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 7nm 10nm 15nm 20nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 70001Y 700015 70001A 7001Y 70015 7001A 7002Y 70025 7002A 7003Y 70035 7003A 7004Y 70045 7004A 7005Y 70055 7005A 7010Y 70105 7010A 7015Y 70155 7015A 7020Y 70205 7020A 7025Y 70255 7025A 7030Y 70305 7030A 7035Y 70355 7035A 7040Y 70405 7040A 7045Y 70455 7045A 7050Y 70505 7050A 7055Y 70555 7055A 7060Y 70605 7060A 7065Y 70655 7065A 7070Y 70705 7070A 7075Y 70755 7075A 7080Y 70805 7080A 7085Y 70855 7085A 7090Y 70905 7090A 7095Y 70955 7095A 7096Y 70965 7096A 7097Y 70975 7097A 7098Y 70985 7098A 7099Y 70995 7099A 100001Y 1000015 100001A 10001Y 100015 10001A 10002Y 100025 10002A 10003Y 100035 10003A 10004Y 100045 10004A 10005Y 100055 10005A 10010Y 100105 10010A 10015Y 100155 10015A 10020Y 100205 10020A 10025Y 100255 10025A 10030Y 100305 10030A 10035Y 100355 10035A 10040Y 100405 10040A 10045Y 100455 10045A 10050Y 100505 10050A 10055Y 100555 10055A 10060Y 100605 10060A 10065Y 100655 10065A 10070Y 100705 10070A 10075Y 100755 10075A 10080Y 100805 10080A 10085Y 100855 10085A 10090Y 100905 10090A 10095Y 100955 10095A 10096Y 100965 10096A 10097Y 100975 10097A 10098Y 100985 10098A 10099Y 100995 10099A 150001Y 1500015 150001A 15001Y 150015 15001A 15002Y 150025 15002A 15003Y 150035 15003A 15004Y 150045 15004A 15005Y 150055 15005A 15010Y 150105 15010A 15015Y 150155 15015A 15020Y 150205 15020A 15025Y 150255 15025A 15030Y 150305 15030A 15035Y 150355 15035A 15040Y 150405 15040A 15045Y 150455 15045A 15050Y 150505 15050A 15055Y 150555 15055A 15060Y 150605 15060A 15065Y 150655 15065A 15070Y 150705 15070A 15075Y 150755 15075A 15080Y 150805 15080A 15085Y 150855 15085A 15090Y 150905 15090A 15095Y 150955 15095A 15096Y 150965 15096A 15097Y 150975 15097A 15098Y 150985 15098A 15099Y 150995 15099A 200001Y 2000015 200001A 20001Y 200015 20001A 20002Y 200025 20002A 20003Y 200035 20003A 20004Y 200045 20004A 20005Y 200055 20005A 20010Y 200105 20010A 20015Y 200155 20015A 20020Y 200205 20020A 20025Y 200255 20025A 20030Y 200305 20030A 20035Y 200355 20035A 20040Y 200405 20040A 20045Y 200455 20045A 20050Y 200505 20050A 20055Y 200555 20055A 20060Y 200605 20060A 20065Y 200655 20065A 20070Y 200705 20070A 20075Y 200755 20075A 20080Y 200805 20080A 20085Y 200855 20085A 20090Y 200905 20090A 20095Y 200955 20095A 20096Y 200965 20096A 20097Y 200975 20097A 20098Y 200985 20098A 20099Y 200995 20099A
TYPICAL SPECIFICATIONS
Center Wavelength 1550nm
Min. Bandwidth@0.5dB 7nm, 10nm, 15nm, 20nm
Tap Ratio 1+/-0.6%, 2+/-0.8%, 5+/-1.0%, 10%, 20%, 30%, 40%, 50%
Excess Loss <=1.6dB
Wavelength Suppression >=25dB
Return Loss >=50dB
PDL <=0.1dB
Fiber Type SMF-28 Fiber or 10/130um DC Fiber
12/130um DC Fiber or 20/130um DC Fiber
25/250um DC Fiber or 25/300um DC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~70degreeC

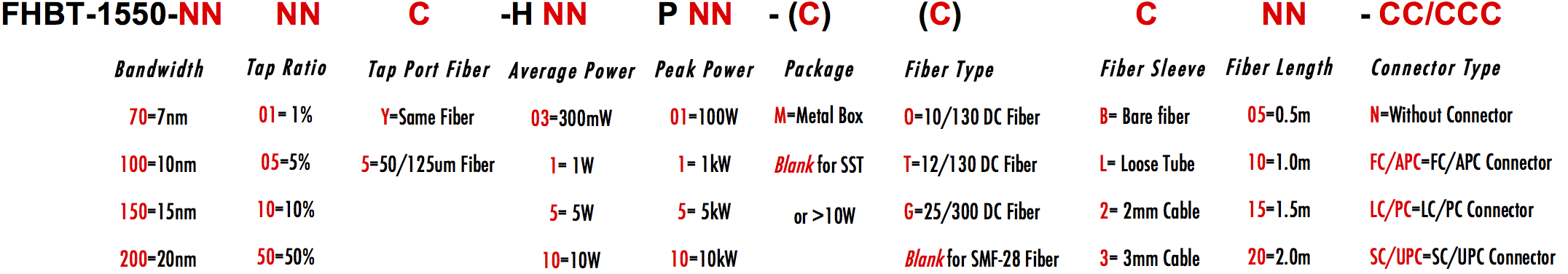

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
