1556nm PM Bandpass Filter/Tap Hybrid

DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Tap Hybrid is made by thin film coating and micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features flat-top spectrum, high Suppression Ratio, high Extinction Ratio and various Split Ratio. The Bandpass Filter/Tap Hybrid will pass the signal light while block the unwanted/ASE light, at the same time tap a certain ratio of signal light and output. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FPHB 1556nm PM Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 8nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda FPHB 1556nm PM Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 8nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda FPHB 1556nm PM Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 8nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda 80001F 80001X 8001F 8001X 8002F 8002X 8003F 8003X 8004F 8004X 80055 8005X 8010F 8010X 8015F 8015X 8020F 8020X 80255 8025X 8030F 8030X 8035F 8035X 8040F 8040X 80455 8045X 8050F 8050X 8055F 8055X 8060F 8060X 80655 8065X 8070F 8070X 8075F 8075X 8080F 8080X 80855 8085X 8090F 8090X 8095F 8095X 8096F 8096X 80975 8097X 8098F 8098X 8099F 8099X YY YS Y5 YA SY SS S5 SA 5Y 5S 55 5A AY AS A5 AA
TYPICAL SPECIFICATIONS
Center Wavelength 1556nm
Min. Bandwidth@0.5dB 8nm
Tap Ratio 1+/-0.6%, 2+/-0.8%, 5+/-1.0%, 10%, 20%, 30%, 40%, 50%
Excess Loss <=1.8dB
Wavelength Suppression >=25dB
Return Loss >=50dB
Extinction Ratio >=18
Fiber Type PM1550 Fiber or 10/130um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

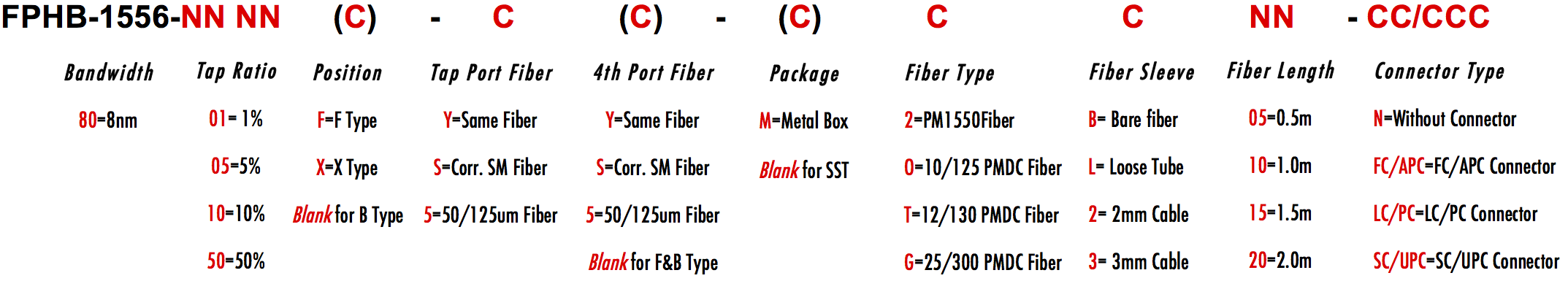

ORDERING INFORMATION/PART NUMBER(PN)
