1560nm Bandpass Filter/Tap Hybrid for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Tap Hybrid is made by thin film coating and micro-optics package technology with fiber in and fiber out. It features flat-top spectrum, high Suppression Ratio and various Split Ratio. The Bandpass Filter/Tap Hybrid will pass the signal light while block the unwanted/ASE light, at the same time tap a certain ratio of signal light and output. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FHBT 1560nm Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 1nm 2nm 5nm 10nm 15nm 20nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FHBT 1560nm Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 1nm 2nm 5nm 10nm 15nm 20nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FHBT 1560nm Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 1nm 2nm 5nm 10nm 15nm 20nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 10001Y 100015 10001A 1001Y 10015 1001A 1002Y 10025 1002A 1003Y 10035 1003A 1004Y 10045 1004A 1005Y 10055 1005A 1010Y 10105 1010A 1015Y 10155 1015A 1020Y 10205 1020A 1025Y 10255 1025A 1030Y 10305 1030A 1035Y 10355 1035A 1040Y 10405 1040A 1045Y 10455 1045A 1050Y 10505 1050A 1055Y 10555 1055A 1060Y 10605 1060A 1065Y 10655 1065A 1070Y 10705 1070A 1075Y 10755 1075A 1080Y 10805 1080A 1085Y 10855 1085A 1090Y 10905 1090A 1095Y 10955 1095A 1096Y 10965 1096A 1097Y 10975 1097A 1098Y 10985 1098A 1099Y 10995 1099A 20001Y 200015 20001A 2001Y 20015 2001A 2002Y 20025 2002A 2003Y 20035 2003A 2004Y 20045 2004A 2005Y 20055 2005A 2010Y 20105 2010A 2015Y 20155 2015A 2020Y 20205 2020A 2025Y 20255 2025A 2030Y 20305 2030A 2035Y 20355 2035A 2040Y 20405 2040A 2045Y 20455 2045A 2050Y 20505 2050A 2055Y 20555 2055A 2060Y 20605 2060A 2065Y 20655 2065A 2070Y 20705 2070A 2075Y 20755 2075A 2080Y 20805 2080A 2085Y 20855 2085A 2090Y 20905 2090A 2095Y 20955 2095A 2096Y 20965 2096A 2097Y 20975 2097A 2098Y 20985 2098A 2099Y 20995 2099A 50001Y 500015 50001A 5001Y 50015 5001A 5002Y 50025 5002A 5003Y 50035 5003A 5004Y 50045 5004A 5005Y 50055 5005A 5010Y 50105 5010A 5015Y 50155 5015A 5020Y 50205 5020A 5025Y 50255 5025A 5030Y 50305 5030A 5035Y 50355 5035A 5040Y 50405 5040A 5045Y 50455 5045A 5050Y 50505 5050A 5055Y 50555 5055A 5060Y 50605 5060A 5065Y 50655 5065A 5070Y 50705 5070A 5075Y 50755 5075A 5080Y 50805 5080A 5085Y 50855 5085A 5090Y 50905 5090A 5095Y 50955 5095A 5096Y 50965 5096A 5097Y 50975 5097A 5098Y 50985 5098A 5099Y 50995 5099A 100001Y 1000015 100001A 10001Y 100015 10001A 10002Y 100025 10002A 10003Y 100035 10003A 10004Y 100045 10004A 10005Y 100055 10005A 10010Y 100105 10010A 10015Y 100155 10015A 10020Y 100205 10020A 10025Y 100255 10025A 10030Y 100305 10030A 10035Y 100355 10035A 10040Y 100405 10040A 10045Y 100455 10045A 10050Y 100505 10050A 10055Y 100555 10055A 10060Y 100605 10060A 10065Y 100655 10065A 10070Y 100705 10070A 10075Y 100755 10075A 10080Y 100805 10080A 10085Y 100855 10085A 10090Y 100905 10090A 10095Y 100955 10095A 10096Y 100965 10096A 10097Y 100975 10097A 10098Y 100985 10098A 10099Y 100995 10099A 150001Y 1500015 150001A 15001Y 150015 15001A 15002Y 150025 15002A 15003Y 150035 15003A 15004Y 150045 15004A 15005Y 150055 15005A 15010Y 150105 15010A 15015Y 150155 15015A 15020Y 150205 15020A 15025Y 150255 15025A 15030Y 150305 15030A 15035Y 150355 15035A 15040Y 150405 15040A 15045Y 150455 15045A 15050Y 150505 15050A 15055Y 150555 15055A 15060Y 150605 15060A 15065Y 150655 15065A 15070Y 150705 15070A 15075Y 150755 15075A 15080Y 150805 15080A 15085Y 150855 15085A 15090Y 150905 15090A 15095Y 150955 15095A 15096Y 150965 15096A 15097Y 150975 15097A 15098Y 150985 15098A 15099Y 150995 15099A 200001Y 2000015 200001A 20001Y 200015 20001A 20002Y 200025 20002A 20003Y 200035 20003A 20004Y 200045 20004A 20005Y 200055 20005A 20010Y 200105 20010A 20015Y 200155 20015A 20020Y 200205 20020A 20025Y 200255 20025A 20030Y 200305 20030A 20035Y 200355 20035A 20040Y 200405 20040A 20045Y 200455 20045A 20050Y 200505 20050A 20055Y 200555 20055A 20060Y 200605 20060A 20065Y 200655 20065A 20070Y 200705 20070A 20075Y 200755 20075A 20080Y 200805 20080A 20085Y 200855 20085A 20090Y 200905 20090A 20095Y 200955 20095A 20096Y 200965 20096A 20097Y 200975 20097A 20098Y 200985 20098A 20099Y 200995 20099A
TYPICAL SPECIFICATIONS
Center Wavelength 1560nm
Min. Bandwidth@0.5dB 1nm 2nm 5nm 10nm 15nm 20nm
Tap Ratio 1+/-0.6%, 2+/-0.8%, 5+/-1.0%, 10%, 20%, 30%, 40%, 50%
Excess Loss <=1.6dB
Wavelength Supression >=25dB
Return Loss >=50dB
PDL <=0.1dB
Fiber Type SMF-28 Fiber or 10/130um DC Fiber
12/130um DC Fiber or 20/130um DC Fiber
25/250um DC Fiber or 25/300um DC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~70degreeC

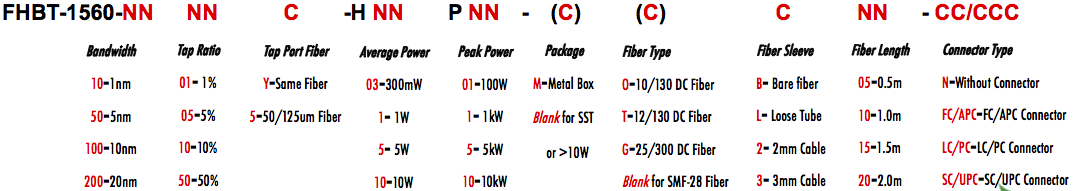

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
