1560nm High Power PM Bandpass Filter/Tap Hybrid

DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Tap Hybrid is made by thin film coating and micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features flat-top spectrum, high Suppression Ratio, high Extinction Ratio and various Split Ratio. The Bandpass Filter/Tap Hybrid will pass the signal light while block the unwanted/ASE light, at the same time tap a certain ratio of signal light and output. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. X type is recommended to guide out high power ASE/unwanted light out. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FPHB 1560nm PM Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 1nm 2nm 5nm 10nm 15nm 20nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave FPHB 1560nm PM Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 1nm 2nm 5nm 10nm 15nm 20nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave FPHB 1560nm PM Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 1nm 2nm 5nm 10nm 15nm 20nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave 10001F 10001X 1001F 1001X 1002F 1002X 1003F 1003X 1004F 1004X 10055 1005X 1010F 1010X 1015F 1015X 1020F 1020X 10255 1025X 1030F 1030X 1035F 1035X 1040F 1040X 10455 1045X 1050F 1050X 1055F 1055X 1060F 1060X 10655 1065X 1070F 1070X 1075F 1075X 1080F 1080X 10855 1085X 1090F 1090X 1095F 1095X 1096F 1096X 10975 1097X 1098F 1098X 1099F 1099X 20001F 20001X 2001F 2001X 2002F 2002X 2003F 2003X 2004F 2004X 20055 2005X 2010F 2010X 2015F 2015X 2020F 2020X 20255 2025X 2030F 2030X 2035F 2035X 2040F 2040X 20455 2045X 2050F 2050X 2055F 2055X 2060F 2060X 20655 2065X 2070F 2070X 2075F 2075X 2080F 2080X 20855 2085X 2090F 2090X 2095F 2095X 2096F 2096X 20975 2097X 2098F 2098X 2099F 2099X 50001F 50001X 5001F 5001X 5002F 5002X 5003F 5003X 5004F 5004X 50055 5005X 5010F 5010X 5015F 5015X 5020F 5020X 50255 5025X 5030F 5030X 5035F 5035X 5040F 5040X 50455 5045X 5050F 5050X 5055F 5055X 5060F 5060X 50655 5065X 5070F 5070X 5075F 5075X 5080F 5080X 50855 5085X 5090F 5090X 5095F 5095X 5096F 5096X 50975 5097X 5098F 5098X 5099F 5099X 100001F 100001X 10001F 10001X 10002F 10002X 10003F 10003X 10004F 10004X 100055 10005X 10010F 10010X 10015F 10015X 10020F 10020X 100255 10025X 10030F 10030X 10035F 10035X 10040F 10040X 100455 10045X 10050F 10050X 10055F 10055X 10060F 10060X 100655 10065X 10070F 10070X 10075F 10075X 10080F 10080X 100855 10085X 10090F 10090X 10095F 10095X 10096F 10096X 100975 10097X 10098F 10098X 10099F 10099X 150001F 150001X 15001F 15001X 15002F 15002X 15003F 15003X 15004F 15004X 150055 15005X 15010F 15010X 15015F 15015X 15020F 15020X 150255 15025X 15030F 15030X 15035F 15035X 15040F 15040X 150455 15045X 15050F 15050X 15055F 15055X 15060F 15060X 150655 15065X 15070F 15070X 15075F 15075X 15080F 15080X 150855 15085X 15090F 15090X 15095F 15095X 15096F 15096X 150975 15097X 15098F 15098X 15099F 15099X 200001F 200001X 20001F 20001X 20002F 20002X 20003F 20003X 20004F 20004X 200055 20005X 20010F 20010X 20015F 20015X 20020F 20020X 200255 20025X 20030F 20030X 20035F 20035X 20040F 20040X 200455 20045X 20050F 20050X 20055F 20055X 20060F 20060X 200655 20065X 20070F 20070X 20075F 20075X 20080F 20080X 200855 20085X 20090F 20090X 20095F 20095X 20096F 20096X 200975 20097X 20098F 20098X 20099F 20099X YY YS Y5 YA SY SS S5 SA 5Y 5S 55 5A AY AS A5 AA
TYPICAL SPECIFICATIONS
Center Wavelength 1560nm
Min. Bandwidth@0.5dB 1nm 2nm 5nm 10nm 15nm 20nm
Tap Ratio 1+/-0.6%, 2+/-0.8%, 5+/-1.0%, 10%, 20%, 30%, 40%, 50%
Excess Loss <=1.6dB
Wavelength Supression >=25dB
Return Loss >=50dB
Extinction Ratio >=18dB
Fiber Type PM1550 Fiber or 10/130um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W
Operating Temperature 0~50degreeC

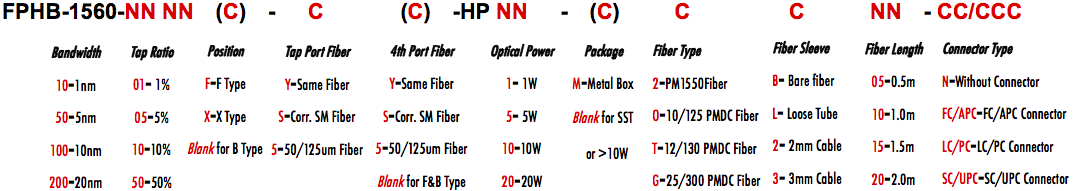

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
