1570nm High Power Bandpass Filter/Tap Hybrid

DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Tap Hybrid is made by thin film coating and micro-optics package technology with fiber in and fiber out. It features flat-top spectrum, high Suppression Ratio and various Split Ratio. The Bandpass Filter/Tap Hybrid will pass the signal light while block the unwanted/ASE light, at the same time tap a certain ratio of signal light and output. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FHBT 1570nm Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 4nm 9nm 15nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave FHBT 1570nm Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 4nm 9nm 15nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave FHBT 1570nm Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 4nm 9nm 15nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave 40001Y 400015 40001A 4001Y 40015 4001A 4002Y 40025 4002A 4003Y 40035 4003A 4004Y 40045 4004A 4005Y 40055 4005A 4010Y 40105 4010A 4015Y 40155 4015A 4020Y 40205 4020A 4025Y 40255 4025A 4030Y 40305 4030A 4035Y 40355 4035A 4040Y 40405 4040A 4045Y 40455 4045A 4040Y 40405 4040A 4055Y 40555 4055A 4060Y 40605 4060A 4065Y 40655 4065A 4070Y 40705 4070A 4075Y 40755 4075A 4080Y 40805 4080A 4085Y 40855 4085A 4090Y 40905 4090A 4095Y 40955 4095A 4096Y 40965 4096A 4097Y 40975 4097A 4098Y 40985 4098A 4099Y 40995 4099A 90001Y 900015 90001A 9001Y 90015 9001A 9002Y 90025 9002A 9003Y 90035 9003A 9004Y 90045 9004A 9005Y 90055 9005A 9010Y 90105 9010A 9015Y 90155 9015A 9020Y 90205 9020A 9025Y 90255 9025A 9030Y 90305 9030A 9035Y 90355 9035A 9040Y 90405 9040A 9045Y 90455 9045A 9090Y 90905 9090A 9055Y 90555 9055A 9060Y 90605 9060A 9065Y 90655 9065A 9070Y 90705 9070A 9075Y 90755 9075A 9080Y 90805 9080A 9085Y 90855 9085A 9090Y 90905 9090A 9095Y 90955 9095A 9096Y 90965 9096A 9097Y 90975 9097A 9098Y 90985 9098A 9099Y 90995 9099A 150001Y 1500015 150001A 15001Y 150015 15001A 15002Y 150025 15002A 15003Y 150035 15003A 15004Y 150045 15004A 15005Y 150055 15005A 15010Y 150105 15010A 15015Y 150155 15015A 15020Y 150205 15020A 15025Y 150255 15025A 15030Y 150305 15030A 15035Y 150355 15035A 15040Y 150405 15040A 15045Y 150455 15045A 150150Y 1501505 150150A 15055Y 150555 15055A 15060Y 150605 15060A 15065Y 150655 15065A 15070Y 150705 15070A 15075Y 150755 15075A 15080Y 150805 15080A 15085Y 150855 15085A 15090Y 150905 15090A 15095Y 150955 15095A 15096Y 150965 15096A 15097Y 150975 15097A 15098Y 150985 15098A 15099Y 150995 15099A
TYPICAL SPECIFICATIONS
Center Wavelength 1570nm
Min. Bandwidth@0.5dB 4nm 9nm 15nm
Tap Ratio 1+/-0.6%, 2+/-0.8%, 5+/-1.0%, 10%, 20%, 30%, 40%, 50%
Excess Loss <=1.6dB
Wavelength Supression >=25dB
Return Loss >=50dB
PDL <=0.1dB
Fiber Type SMF-28 Fiber or 10/130um DC Fiber
12/130um DC Fiber or 20/130um DC Fiber
25/250um DC Fiber or 25/300um DC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W
Operating Temperature 0~70degreeC

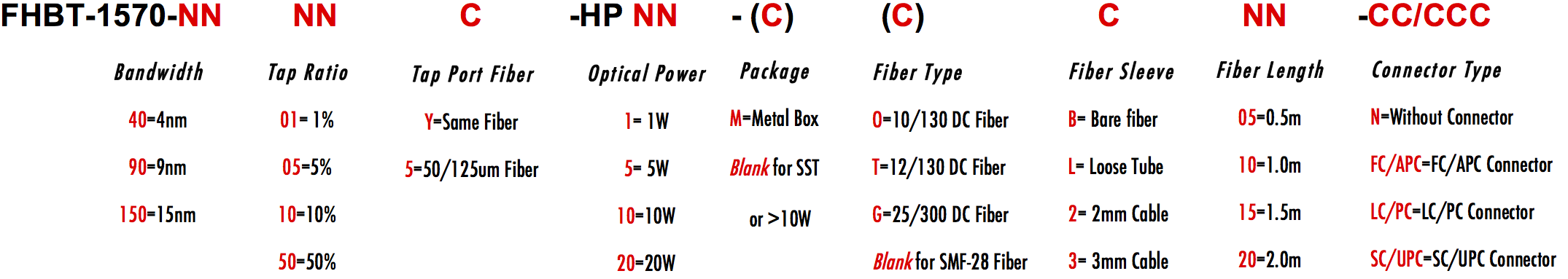

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
