2000nm Bandpass Filter/Tap Hybrid for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Tap Hybrid is made by thin film coating and micro-optics package technology with fiber in and fiber out. It features flat-top spectrum, high Suppression Ratio and various Split Ratio. The Bandpass Filter/Tap Hybrid will pass the signal light while block the unwanted/ASE light, at the same time tap a certain ratio of signal light and output. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FHBT 2000nm Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 6nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FHBT 2000nm Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 6nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FHBT 2000nm Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 6nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type for Pulse Power 1W 2W 3W 5W 10W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 60001Y 600015 60001A 6001Y 60015 6001A 6002Y 60025 6002A 6003Y 60035 6003A 6004Y 60045 6004A 6005Y 60055 6005A 6010Y 60105 6010A 6015Y 60155 6015A 6020Y 60205 6020A 6025Y 60255 6025A 6030Y 60305 6030A 6035Y 60355 6035A 6040Y 60405 6040A 6045Y 60455 6045A 6050Y 60505 6050A 6055Y 60555 6055A 6060Y 60605 6060A 6065Y 60655 6065A 6070Y 60705 6070A 6075Y 60755 6075A 6080Y 60805 6080A 6085Y 60855 6085A 6090Y 60905 6090A 6095Y 60955 6095A 6096Y 60965 6096A 6097Y 60975 6097A 6098Y 60985 6098A 6099Y 60995 6099A
TYPICAL SPECIFICATIONS
Center Wavelength 2000nm
Min. Bandwidth@0.5dB 6nm
Tap Ratio 1+/-0.6%, 2+/-0.8%, 5+/-1.0%, 10%, 20%, 30%, 40%, 50%
Excess Loss <=1.8dB
Wavelength Suppression >=25dB
Return Loss >=50dB
PDL <=0.25dB
Fiber Type SMF-28 Fiber or SM1950 Fiber
10/130um DC Fiber or 25/250um DC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

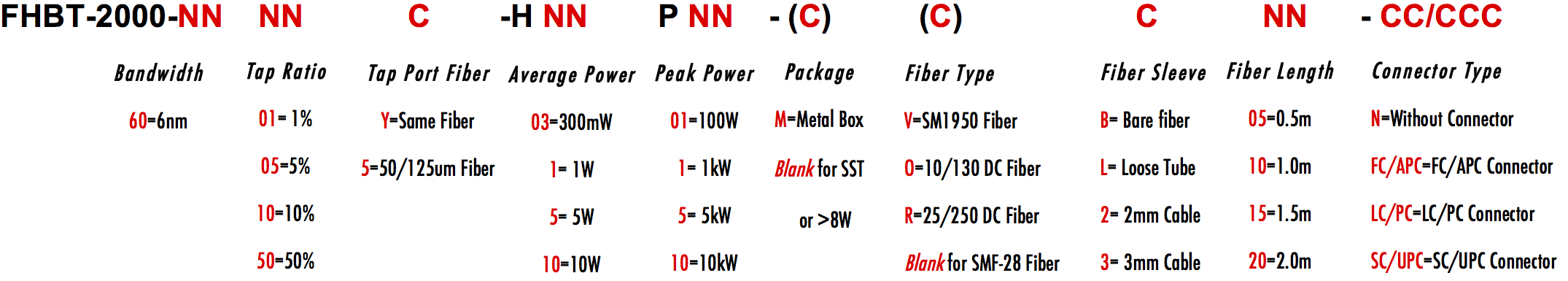

ORDERING INFORMATION/PART NUMBER(PN)
