2090nm PM Bandpass Filter/Tap Hybrid
DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Tap Hybrid is made by thin film coating and micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features flat-top spectrum, high Suppression Ratio, high Extinction Ratio and various Split Ratio. The Bandpass Filter/Tap Hybrid will pass the signal light while block the unwanted/ASE light, at the same time tap a certain ratio of signal light and output. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FPHB 2090nm PM Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 20nm PM1550 PM1950 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda FPHB 2090nm PM Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 20nm PM1550 PM1950 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda FPHB 2090nm PM Bandpass Filter Tap Coupler Splitter Hybrid BP BPT filtre filtrar SM Singlemode coupleur dieses Acoplador HYB HYBR HY HB hybride híbrido paso de banda bande passante BW Bandwidth 20nm PM1550 PM1950 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda 200001Y 2000015 200001A 20001Y 200015 20001A 20002Y 200025 20002A 20003Y 200035 20003A 20004Y 200045 20004A 20005Y 200055 20005A 20010Y 200105 20010A 20015Y 200155 20015A 20020Y 200205 20020A 20025Y 200255 20025A 20030Y 200305 20030A 20035Y 200355 20035A 20040Y 200405 20040A 20045Y 200455 20045A 20050Y 200505 20050A 20055Y 200555 20055A 20060Y 200605 20060A 20065Y 200655 20065A 20070Y 200705 20070A 20075Y 200755 20075A 20080Y 200805 20080A 20085Y 200855 20085A 20090Y 200905 20090A 20095Y 200955 20095A 20096Y 200965 20096A 20097Y 200975 20097A 20098Y 200985 20098A 20099Y 200995 20099A
TYPICAL SPECIFICATIONS
Center Wavelength 2090nm
Min. Bandwidth@0.5dB 20nm
Tap Ratio 1+/-0.6%, 2+/-0.8%, 5+/-1.0%, 10%, 20%, 30%, 40%, 50%
Excess Loss <=2.2dB
Wavelength Suppression >=25dB
Return Loss >=50dB
Extinction Ratio >=18dB
Fiber Type PM1550 Fiber or PM1950 Fiber
10/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

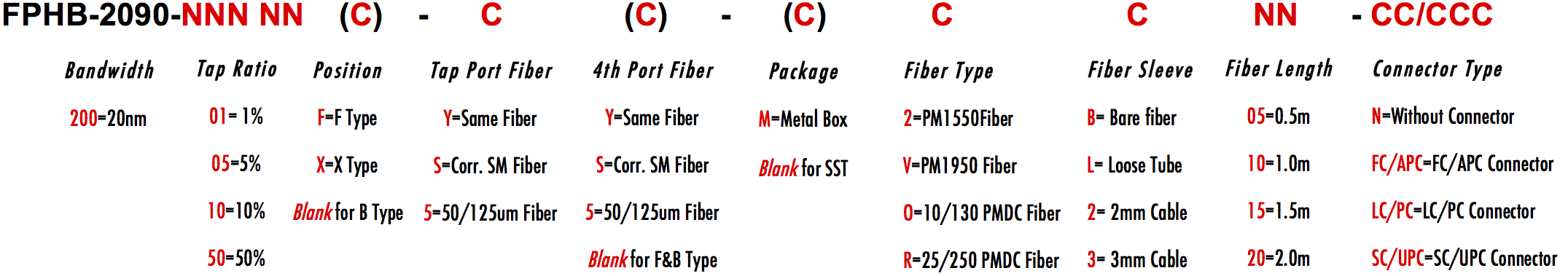

ORDERING INFORMATION/PART NUMBER(PN)
