1550nm BP/Partial Fiber Mirror (PFM) PM Hybrid for Pulse Power (<10nm BW)

DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Partial Fiber Mirror (PFM) Hybrid is made by thin film coating and micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features flat-top spectrum, high Suppression Ratio, high Extinction Ratio, and various Reflective Ratio. The BP/PFM Hybrid will pass the signal light while block the unwanted/ASE light, at the same time reflect a certain ratio of signal light backward. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Y Type is strongly recommended to guide out high power ASE/unwanted light out. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FPHR 1550nm PM Bandpass Filter BP Partial Fiber Mirror PFM Hybrid filtre filtrar SM Singlemode HYB HYBR HY HB hybride híbrido paso de banda bande passante Bandwidth 0.3nm 0.7nm 2nm 3nm 4nm 5nm 7nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPHR 1550nm PM Bandpass Filter BP Partial Fiber Mirror PFM Hybrid filtre filtrar SM Singlemode HYB HYBR HY HB hybride híbrido paso de banda bande passante Bandwidth 0.3nm 0.7nm 2nm 3nm 4nm 5nm 7nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPHR 1550nm PM Bandpass Filter BP Partial Fiber Mirror PFM Hybrid filtre filtrar SM Singlemode HYB HYBR HY HB hybride híbrido paso de banda bande passante Bandwidth 0.3nm 0.7nm 2nm 3nm 4nm 5nm 7nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 03001Y 030015 03001A 0301Y 03015 0301A 0302Y 03025 0302A 0303Y 03035 0303A 0304Y 03045 0304A 0305Y 03055 0305A 0310Y 03105 0310A 0315Y 03155 0315A 0320Y 03205 0320A 0325Y 03255 0325A 0330Y 03305 0330A 0335Y 03355 0335A 0340Y 03405 0340A 0345Y 03455 0345A 0350Y 03505 0350A 0355Y 03555 0355A 0360Y 03605 0360A 0365Y 03655 0365A 0370Y 03705 0370A 0375Y 03755 0375A 0380Y 03805 0380A 0385Y 03855 0385A 0390Y 03905 0390A 0395Y 03955 0395A 0396Y 03965 0396A 0397Y 03975 0397A 0398Y 03985 0398A 0399Y 03995 0399A 03001RY 03001R5 03001RA 0301RY 0301R5 0301RA 0302RY 0302R5 0302RA 0303RY 0303R5 0303RA 0304RY 0304R5 0304RA 0305RY 0305R5 0305RA 0310RY 0310R5 0310RA 0315RY 0315R5 0315RA 0320RY 0320R5 0320RA 0325RY 0325R5 0325RA 0330RY 0330R5 0330RA 0335RY 0335R5 0335RA 0340RY 0340R5 0340RA 0345RY 0345R5 0345RA 0350RY 0350R5 0350RA 0355RY 0355R5 0355RA 0360RY 0360R5 0360RA 0365RY 0365R5 0365RA 0370RY 0370R5 0370RA 0375RY 0375R5 0375RA 0380RY 0380R5 0380RA 0385RY 0385R5 0385RA 0390RY 0390R5 0390RA 0395RY 0395R5 0395RA 0396RY 0396R5 0396RA 0397RY 0397R5 0397RA 0398RY 0398R5 0398RA 0399RY 0399R5 0399RA 07001Y 070015 07001A 0701Y 07015 0701A 0702Y 07025 0702A 0703Y 07035 0703A 0704Y 07045 0704A 0705Y 07055 0705A 0710Y 07105 0710A 0715Y 07155 0715A 0720Y 07205 0720A 0725Y 07255 0725A 0730Y 07305 0730A 0735Y 07355 0735A 0740Y 07405 0740A 0745Y 07455 0745A 0750Y 07505 0750A 0755Y 07555 0755A 0760Y 07605 0760A 0765Y 07655 0765A 0770Y 07705 0770A 0775Y 07755 0775A 0780Y 07805 0780A 0785Y 07855 0785A 0790Y 07905 0790A 0795Y 07955 0795A 0796Y 07965 0796A 0797Y 07975 0797A 0798Y 07985 0798A 0799Y 07995 0799A 07001RY 07001R5 07001RA 0701RY 0701R5 0701RA 0702RY 0702R5 0702RA 0703RY 0703R5 0703RA 0704RY 0704R5 0704RA 0705RY 0705R5 0705RA 0710RY 0710R5 0710RA 0715RY 0715R5 0715RA 0720RY 0720R5 0720RA 0725RY 0725R5 0725RA 0730RY 0730R5 0730RA 0735RY 0735R5 0735RA 0740RY 0740R5 0740RA 0745RY 0745R5 0745RA 0750RY 0750R5 0750RA 0755RY 0755R5 0755RA 0760RY 0760R5 0760RA 0765RY 0765R5 0765RA 0770RY 0770R5 0770RA 0775RY 0775R5 0775RA 0780RY 0780R5 0780RA 0785RY 0785R5 0785RA 0790RY 0790R5 0790RA 0795RY 0795R5 0795RA 0796RY 0796R5 0796RA 0797RY 0797R5 0797RA 0798RY 0798R5 0798RA 0799RY 0799R5 0799RA 20001Y 200015 20001A 2001Y 20015 2001A 2002Y 20025 2002A 2003Y 20035 2003A 2004Y 20045 2004A 2005Y 20055 2005A 2010Y 20105 2010A 2015Y 20155 2015A 2020Y 20205 2020A 2025Y 20255 2025A 2030Y 20305 2030A 2035Y 20355 2035A 2040Y 20405 2040A 2045Y 20455 2045A 2050Y 20505 2050A 2055Y 20555 2055A 2060Y 20605 2060A 2065Y 20655 2065A 2070Y 20705 2070A 2075Y 20755 2075A 2080Y 20805 2080A 2085Y 20855 2085A 2090Y 20905 2090A 2095Y 20955 2095A 2096Y 20965 2096A 2097Y 20975 2097A 2098Y 20985 2098A 2099Y 20995 2099A 20001RY 20001R5 20001RA 2001RY 2001R5 2001RA 2002RY 2002R5 2002RA 2003RY 2003R5 2003RA 2004RY 2004R5 2004RA 2005RY 2005R5 2005RA 2010RY 2010R5 2010RA 2015RY 2015R5 2015RA 2020RY 2020R5 2020RA 2025RY 2025R5 2025RA 2030RY 2030R5 2030RA 2035RY 2035R5 2035RA 2040RY 2040R5 2040RA 2045RY 2045R5 2045RA 2050RY 2050R5 2050RA 2055RY 2055R5 2055RA 2060RY 2060R5 2060RA 2065RY 2065R5 2065RA 2070RY 2070R5 2070RA 2075RY 2075R5 2075RA 2080RY 2080R5 2080RA 2085RY 2085R5 2085RA 2090RY 2090R5 2090RA 2095RY 2095R5 2095RA 2096RY 2096R5 2096RA 2097RY 2097R5 2097RA 2098RY 2098R5 2098RA 2099RY 2099R5 2099RA 30001Y 300015 30001A 3001Y 30015 3001A 3002Y 30025 3002A 3003Y 30035 3003A 3004Y 30045 3004A 3005Y 30055 3005A 3010Y 30105 3010A 3015Y 30155 3015A 3020Y 30205 3020A 3025Y 30255 3025A 3030Y 30305 3030A 3035Y 30355 3035A 3040Y 30405 3040A 3045Y 30455 3045A 3050Y 30505 3050A 3055Y 30555 3055A 3060Y 30605 3060A 3065Y 30655 3065A 3070Y 30705 3070A 3075Y 30755 3075A 3080Y 30805 3080A 3085Y 30855 3085A 3090Y 30905 3090A 3095Y 30955 3095A 3096Y 30965 3096A 3097Y 30975 3097A 3098Y 30985 3098A 3099Y 30995 3099A 30001RY 30001R5 30001RA 3001RY 3001R5 3001RA 3002RY 3002R5 3002RA 3003RY 3003R5 3003RA 3004RY 3004R5 3004RA 3005RY 3005R5 3005RA 3010RY 3010R5 3010RA 3015RY 3015R5 3015RA 3020RY 3020R5 3020RA 3025RY 3025R5 3025RA 3030RY 3030R5 3030RA 3035RY 3035R5 3035RA 3040RY 3040R5 3040RA 3045RY 3045R5 3045RA 3050RY 3050R5 3050RA 3055RY 3055R5 3055RA 3060RY 3060R5 3060RA 3065RY 3065R5 3065RA 3070RY 3070R5 3070RA 3075RY 3075R5 3075RA 3080RY 3080R5 3080RA 3085RY 3085R5 3085RA 3090RY 3090R5 3090RA 3095RY 3095R5 3095RA 3096RY 3096R5 3096RA 3097RY 3097R5 3097RA 3098RY 3098R5 3098RA 3099RY 3099R5 3099RA 40001Y 400015 40001A 4001Y 40015 4001A 4002Y 40025 4002A 4003Y 40035 4003A 4004Y 40045 4004A 4005Y 40055 4005A 4010Y 40105 4010A 4015Y 40155 4015A 4020Y 40205 4020A 4025Y 40255 4025A 4030Y 40305 4030A 4035Y 40355 4035A 4040Y 40405 4040A 4045Y 40455 4045A 4050Y 40505 4050A 4055Y 40555 4055A 4060Y 40605 4060A 4065Y 40655 4065A 4070Y 40705 4070A 4075Y 40755 4075A 4080Y 40805 4080A 4085Y 40855 4085A 4090Y 40905 4090A 4095Y 40955 4095A 4096Y 40965 4096A 4097Y 40975 4097A 4098Y 40985 4098A 4099Y 40995 4099A 40001RY 40001R5 40001RA 4001RY 4001R5 4001RA 4002RY 4002R5 4002RA 4003RY 4003R5 4003RA 4004RY 4004R5 4004RA 4005RY 4005R5 4005RA 4010RY 4010R5 4010RA 4015RY 4015R5 4015RA 4020RY 4020R5 4020RA 4025RY 4025R5 4025RA 4030RY 4030R5 4030RA 4035RY 4035R5 4035RA 4040RY 4040R5 4040RA 4045RY 4045R5 4045RA 4050RY 4050R5 4050RA 4055RY 4055R5 4055RA 4060RY 4060R5 4060RA 4065RY 4065R5 4065RA 4070RY 4070R5 4070RA 4075RY 4075R5 4075RA 4080RY 4080R5 4080RA 4085RY 4085R5 4085RA 4090RY 4090R5 4090RA 4095RY 4095R5 4095RA 4096RY 4096R5 4096RA 4097RY 4097R5 4097RA 4098RY 4098R5 4098RA 4099RY 4099R5 4099RA 50001Y 500015 50001A 5001Y 50015 5001A 5002Y 50025 5002A 5003Y 50035 5003A 5004Y 50045 5004A 5005Y 50055 5005A 5010Y 50105 5010A 5015Y 50155 5015A 5020Y 50205 5020A 5025Y 50255 5025A 5030Y 50305 5030A 5035Y 50355 5035A 5040Y 50405 5040A 5045Y 50455 5045A 5050Y 50505 5050A 5055Y 50555 5055A 5060Y 50605 5060A 5065Y 50655 5065A 5070Y 50705 5070A 5075Y 50755 5075A 5080Y 50805 5080A 5085Y 50855 5085A 5090Y 50905 5090A 5095Y 50955 5095A 5096Y 50965 5096A 5097Y 50975 5097A 5098Y 50985 5098A 5099Y 50995 5099A 50001RY 50001R5 50001RA 5001RY 5001R5 5001RA 5002RY 5002R5 5002RA 5003RY 5003R5 5003RA 5004RY 5004R5 5004RA 5005RY 5005R5 5005RA 5010RY 5010R5 5010RA 5015RY 5015R5 5015RA 5020RY 5020R5 5020RA 5025RY 5025R5 5025RA 5030RY 5030R5 5030RA 5035RY 5035R5 5035RA 5040RY 5040R5 5040RA 5045RY 5045R5 5045RA 5050RY 5050R5 5050RA 5055RY 5055R5 5055RA 5060RY 5060R5 5060RA 5065RY 5065R5 5065RA 5070RY 5070R5 5070RA 5075RY 5075R5 5075RA 5080RY 5080R5 5080RA 5085RY 5085R5 5085RA 5090RY 5090R5 5090RA 5095RY 5095R5 5095RA 5096RY 5096R5 5096RA 5097RY 5097R5 5097RA 5098RY 5098R5 5098RA 5099RY 5099R5 5099RA 70001Y 700015 70001A 7001Y 70015 7001A 7002Y 70025 7002A 7003Y 70035 7003A 7004Y 70045 7004A 7005Y 70055 7005A 7010Y 70105 7010A 7015Y 70155 7015A 7020Y 70205 7020A 7025Y 70255 7025A 7030Y 70305 7030A 7035Y 70355 7035A 7040Y 70405 7040A 7045Y 70455 7045A 7050Y 70505 7050A 7055Y 70555 7055A 7060Y 70605 7060A 7065Y 70655 7065A 7070Y 70705 7070A 7075Y 70755 7075A 7080Y 70805 7080A 7085Y 70855 7085A 7090Y 70905 7090A 7095Y 70955 7095A 7096Y 70965 7096A 7097Y 70975 7097A 7098Y 70985 7098A 7099Y 70995 7099A 70001RY 70001R5 70001RA 7001RY 7001R5 7001RA 7002RY 7002R5 7002RA 7003RY 7003R5 7003RA 7004RY 7004R5 7004RA 7005RY 7005R5 7005RA 7010RY 7010R5 7010RA 7015RY 7015R5 7015RA 7020RY 7020R5 7020RA 7025RY 7025R5 7025RA 7030RY 7030R5 7030RA 7035RY 7035R5 7035RA 7040RY 7040R5 7040RA 7045RY 7045R5 7045RA 7050RY 7050R5 7050RA 7055RY 7055R5 7055RA 7060RY 7060R5 7060RA 7065RY 7065R5 7065RA 7070RY 7070R5 7070RA 7075RY 7075R5 7075RA 7080RY 7080R5 7080RA 7085RY 7085R5 7085RA 7090RY 7090R5 7090RA 7095RY 7095R5 7095RA 7096RY 7096R5 7096RA 7097RY 7097R5 7097RA 7098RY 7098R5 7098RA 7099RY 7099R5 7099RA
TYPICAL SPECIFICATIONS
Center Wavelength 1550nm
Min. Bandwidth@0.5dB 0.3nm, 0.7nm, 2nm, 3nm, 4nm, 5nm, 7nm
Configuration D Type (2-port), Y Type (3-port)
Excess Loss <=1.3dB (Standard) <=1.5dB (High ER Type)
Wavelength Suppression >=25dB
Reflective Ratio 1+/-0.6%, 2+/-0.8%, 5+/-1.0%, 10%, 20%, 30%, 40%, 50%, 80%, 90%
Return Loss >=45dB
Extinction Ratio >=18dB (Standard), >=20dB (High ER Type)
Fiber Type PM1550 Fiber or 10/130um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~70degreeC

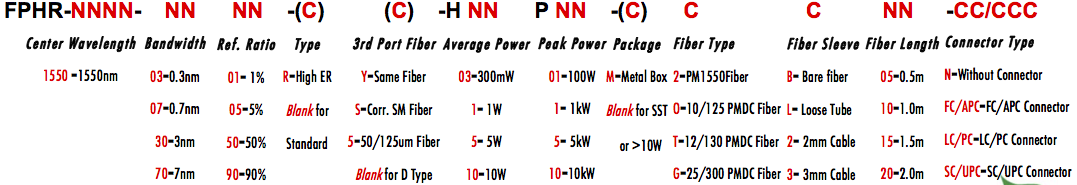

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
