1556nm High Power BP/Partial Fiber Mirror (PFM) Hybrid
DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Partial Fiber Mirror (PFM) Hybrid is made by thin film coating and micro-optics package technology with fiber in and fiber out. It features flat-top spectrum, high Suppression Ratio and various Reflective Ratio. The BP/PFM Hybrid will pass the signal light while block the unwanted/ASE light, at the same time reflect a certain ratio of signal light backward. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Y Type is strongly recommended to guide out high power ASE/unwanted light out. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FHBR 1556nm Bandpass Filter BP Partial Fiber Mirror PFM Hybrid filtre filtrar SM Singlemode HYB HYBR HY HB hybride híbrido paso de banda bande passante Bandwidth 8nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave FHBR 1556nm Bandpass Filter BP Partial Fiber Mirror PFM Hybrid filtre filtrar SM Singlemode HYB HYBR HY HB hybride híbrido paso de banda bande passante Bandwidth 8nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave FHBR 1556nm Bandpass Filter BP Partial Fiber Mirror PFM Hybrid filtre filtrar SM Singlemode HYB HYBR HY HB hybride híbrido paso de banda bande passante Bandwidth 8nm SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 2-port D Type 3-port Y Type 4-port X Type High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave 80001Y 800015 80001A 8001Y 80015 8001A 8002Y 80025 8002A 8003Y 80035 8003A 8004Y 80045 8004A 8005Y 80055 8005A 8010Y 80105 8010A 8015Y 80155 8015A 8020Y 80205 8020A 8025Y 80255 8025A 8030Y 80305 8030A 8035Y 80355 8035A 8040Y 80405 8040A 8045Y 80455 8045A 8050Y 80505 8050A 8055Y 80555 8055A 8060Y 80605 8060A 8065Y 80655 8065A 8070Y 80705 8070A 8075Y 80755 8075A 8080Y 80805 8080A 8085Y 80855 8085A 8090Y 80905 8090A 8095Y 80955 8095A 8096Y 80965 8096A 8097Y 80975 8097A 8098Y 80985 8098A 8099Y 80995 8099A
TYPICAL SPECIFICATIONS
Center Wavelength 1556nm
Min. Bandwidth@0.5dB 8nm
Configuration D Type (2-port), Y Type (3-port)
Excess Loss <=1.3dB
Wavelength Suppression >=25dB
Reflective Ratio 1+/-0.6%, 2+/-0.8%, 5+/-1.0%, 10%, 20%, 30%, 40%, 50%, 80%, 90%
Return Loss >=45dB
PDL <=0.1dB
Fiber Type SMF-28 Fiber or 10/130um DC Fiber
12/130um DC Fiber or 20/130um DC Fiber
25/250um DC Fiber or 25/300um DC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W
Operating Temperature 0~70degreeC

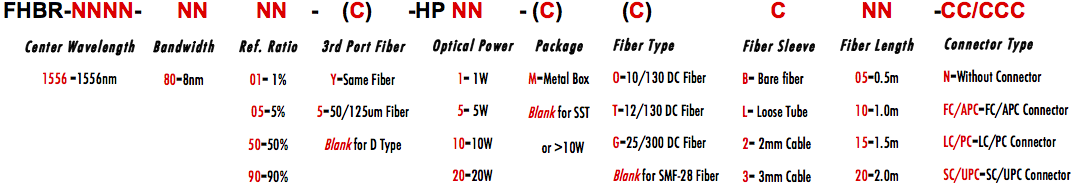

ORDERING INFORMATION/PART NUMBER(PN)
