1560nm BP/Partial Fiber Mirror (PFM) PM Hybrid for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Partial Fiber Mirror (PFM) Hybrid is made by thin film coating and micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features flat-top spectrum, high Suppression Ratio, high Extinction Ratio, and various Reflective Ratio. The BP/PFM Hybrid will pass the signal light while block the unwanted/ASE light, at the same time reflect a certain ratio of signal light backward. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Y Type is strongly recommended to guide out high power ASE/unwanted light out. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FPHR 1560nm PM Bandpass Filter BP Partial Fiber Mirror PFM Hybrid filtre filtrar SM Singlemode HYB HYBR HY HB hybride híbrido paso de banda bande passante Bandwidth 1nm 2nm 5nm 10nm 15nm 20nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPHR 1560nm PM Bandpass Filter BP Partial Fiber Mirror PFM Hybrid filtre filtrar SM Singlemode HYB HYBR HY HB hybride híbrido paso de banda bande passante Bandwidth 1nm 2nm 5nm 10nm 15nm 20nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPHR 1560nm PM Bandpass Filter BP Partial Fiber Mirror PFM Hybrid filtre filtrar SM Singlemode HYB HYBR HY HB hybride híbrido paso de banda bande passante Bandwidth 1nm 2nm 5nm 10nm 15nm 20nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 10001Y 100015 10001A 1001Y 10015 1001A 1002Y 10025 1002A 1003Y 10035 1003A 1004Y 10045 1004A 1005Y 10055 1005A 1010Y 10105 1010A 1015Y 10155 1015A 1020Y 10205 1020A 1025Y 10255 1025A 1030Y 10305 1030A 1035Y 10355 1035A 1040Y 10405 1040A 1045Y 10455 1045A 1050Y 10505 1050A 1055Y 10555 1055A 1060Y 10605 1060A 1065Y 10655 1065A 1070Y 10705 1070A 1075Y 10755 1075A 1080Y 10805 1080A 1085Y 10855 1085A 1090Y 10905 1090A 1095Y 10955 1095A 1096Y 10965 1096A 1097Y 10975 1097A 1098Y 10985 1098A 1099Y 10995 1099A 10001RY 10001R5 10001RA 1001RY 1001R5 1001RA 1002RY 1002R5 1002RA 1003RY 1003R5 1003RA 1004RY 1004R5 1004RA 1005RY 1005R5 1005RA 1010RY 1010R5 1010RA 1015RY 1015R5 1015RA 1020RY 1020R5 1020RA 1025RY 1025R5 1025RA 1030RY 1030R5 1030RA 1035RY 1035R5 1035RA 1040RY 1040R5 1040RA 1045RY 1045R5 1045RA 1050RY 1050R5 1050RA 1055RY 1055R5 1055RA 1060RY 1060R5 1060RA 1065RY 1065R5 1065RA 1070RY 1070R5 1070RA 1075RY 1075R5 1075RA 1080RY 1080R5 1080RA 1085RY 1085R5 1085RA 1090RY 1090R5 1090RA 1095RY 1095R5 1095RA 1096RY 1096R5 1096RA 1097RY 1097R5 1097RA 1098RY 1098R5 1098RA 1099RY 1099R5 1099RA 20001Y 200015 20001A 2001Y 20015 2001A 2002Y 20025 2002A 2003Y 20035 2003A 2004Y 20045 2004A 2005Y 20055 2005A 2010Y 20105 2010A 2015Y 20155 2015A 2020Y 20205 2020A 2025Y 20255 2025A 2030Y 20305 2030A 2035Y 20355 2035A 2040Y 20405 2040A 2045Y 20455 2045A 2050Y 20505 2050A 2055Y 20555 2055A 2060Y 20605 2060A 2065Y 20655 2065A 2070Y 20705 2070A 2075Y 20755 2075A 2080Y 20805 2080A 2085Y 20855 2085A 2090Y 20905 2090A 2095Y 20955 2095A 2096Y 20965 2096A 2097Y 20975 2097A 2098Y 20985 2098A 2099Y 20995 2099A 20001RY 20001R5 20001RA 2001RY 2001R5 2001RA 2002RY 2002R5 2002RA 2003RY 2003R5 2003RA 2004RY 2004R5 2004RA 2005RY 2005R5 2005RA 2010RY 2010R5 2010RA 2015RY 2015R5 2015RA 2020RY 2020R5 2020RA 2025RY 2025R5 2025RA 2030RY 2030R5 2030RA 2035RY 2035R5 2035RA 2040RY 2040R5 2040RA 2045RY 2045R5 2045RA 2050RY 2050R5 2050RA 2055RY 2055R5 2055RA 2060RY 2060R5 2060RA 2065RY 2065R5 2065RA 2070RY 2070R5 2070RA 2075RY 2075R5 2075RA 2080RY 2080R5 2080RA 2085RY 2085R5 2085RA 2090RY 2090R5 2090RA 2095RY 2095R5 2095RA 2096RY 2096R5 2096RA 2097RY 2097R5 2097RA 2098RY 2098R5 2098RA 2099RY 2099R5 2099RA 50001Y 500015 50001A 5001Y 50015 5001A 5002Y 50025 5002A 5003Y 50035 5003A 5004Y 50045 5004A 5005Y 50055 5005A 5010Y 50105 5010A 5015Y 50155 5015A 5020Y 50205 5020A 5025Y 50255 5025A 5030Y 50305 5030A 5035Y 50355 5035A 5040Y 50405 5040A 5045Y 50455 5045A 5050Y 50505 5050A 5055Y 50555 5055A 5060Y 50605 5060A 5065Y 50655 5065A 5070Y 50705 5070A 5075Y 50755 5075A 5080Y 50805 5080A 5085Y 50855 5085A 5090Y 50905 5090A 5095Y 50955 5095A 5096Y 50965 5096A 5097Y 50975 5097A 5098Y 50985 5098A 5099Y 50995 5099A 50001RY 50001R5 50001RA 5001RY 5001R5 5001RA 5002RY 5002R5 5002RA 5003RY 5003R5 5003RA 5004RY 5004R5 5004RA 5005RY 5005R5 5005RA 5010RY 5010R5 5010RA 5015RY 5015R5 5015RA 5020RY 5020R5 5020RA 5025RY 5025R5 5025RA 5030RY 5030R5 5030RA 5035RY 5035R5 5035RA 5040RY 5040R5 5040RA 5045RY 5045R5 5045RA 5050RY 5050R5 5050RA 5055RY 5055R5 5055RA 5060RY 5060R5 5060RA 5065RY 5065R5 5065RA 5070RY 5070R5 5070RA 5075RY 5075R5 5075RA 5080RY 5080R5 5080RA 5085RY 5085R5 5085RA 5090RY 5090R5 5090RA 5095RY 5095R5 5095RA 5096RY 5096R5 5096RA 5097RY 5097R5 5097RA 5098RY 5098R5 5098RA 5099RY 5099R5 5099RA 100001Y 1000015 100001A 10001Y 100015 10001A 10002Y 100025 10002A 10003Y 100035 10003A 10004Y 100045 10004A 10005Y 100055 10005A 10010Y 100105 10010A 10015Y 100155 10015A 10020Y 100205 10020A 10025Y 100255 10025A 10030Y 100305 10030A 10035Y 100355 10035A 10040Y 100405 10040A 10045Y 100455 10045A 10050Y 100505 10050A 10055Y 100555 10055A 10060Y 100605 10060A 10065Y 100655 10065A 10070Y 100705 10070A 10075Y 100755 10075A 10080Y 100805 10080A 10085Y 100855 10085A 10090Y 100905 10090A 10095Y 100955 10095A 10096Y 100965 10096A 10097Y 100975 10097A 10098Y 100985 10098A 10099Y 100995 10099A 100001RY 100001R5 100001RA 10001RY 10001R5 10001RA 10002RY 10002R5 10002RA 10003RY 10003R5 10003RA 10004RY 10004R5 10004RA 10005RY 10005R5 10005RA 10010RY 10010R5 10010RA 10015RY 10015R5 10015RA 10020RY 10020R5 10020RA 10025RY 10025R5 10025RA 10030RY 10030R5 10030RA 10035RY 10035R5 10035RA 10040RY 10040R5 10040RA 10045RY 10045R5 10045RA 10050RY 10050R5 10050RA 10055RY 10055R5 10055RA 10060RY 10060R5 10060RA 10065RY 10065R5 10065RA 10070RY 10070R5 10070RA 10075RY 10075R5 10075RA 10080RY 10080R5 10080RA 10085RY 10085R5 10085RA 10090RY 10090R5 10090RA 10095RY 10095R5 10095RA 10096RY 10096R5 10096RA 10097RY 10097R5 10097RA 10098RY 10098R5 10098RA 10099RY 10099R5 10099RA 150001Y 1500015 150001A 15001Y 150015 15001A 15002Y 150025 15002A 15003Y 150035 15003A 15004Y 150045 15004A 15005Y 150055 15005A 15010Y 150105 15010A 15015Y 150155 15015A 15020Y 150205 15020A 15025Y 150255 15025A 15030Y 150305 15030A 15035Y 150355 15035A 15040Y 150405 15040A 15045Y 150455 15045A 15050Y 150505 15050A 15055Y 150555 15055A 15060Y 150605 15060A 15065Y 150655 15065A 15070Y 150705 15070A 15075Y 150755 15075A 15080Y 150805 15080A 15085Y 150855 15085A 15090Y 150905 15090A 15095Y 150955 15095A 15096Y 150965 15096A 15097Y 150975 15097A 15098Y 150985 15098A 15099Y 150995 15099A 150001RY 150001R5 150001RA 15001RY 15001R5 15001RA 15002RY 15002R5 15002RA 15003RY 15003R5 15003RA 15004RY 15004R5 15004RA 15005RY 15005R5 15005RA 15010RY 15010R5 15010RA 15015RY 15015R5 15015RA 15020RY 15020R5 15020RA 15025RY 15025R5 15025RA 15030RY 15030R5 15030RA 15035RY 15035R5 15035RA 15040RY 15040R5 15040RA 15045RY 15045R5 15045RA 15050RY 15050R5 15050RA 15055RY 15055R5 15055RA 15060RY 15060R5 15060RA 15065RY 15065R5 15065RA 15070RY 15070R5 15070RA 15075RY 15075R5 15075RA 15080RY 15080R5 15080RA 15085RY 15085R5 15085RA 15090RY 15090R5 15090RA 15095RY 15095R5 15095RA 15096RY 15096R5 15096RA 15097RY 15097R5 15097RA 15098RY 15098R5 15098RA 15099RY 15099R5 15099RA 200001Y 2000015 200001A 20001Y 200015 20001A 20002Y 200025 20002A 20003Y 200035 20003A 20004Y 200045 20004A 20005Y 200055 20005A 20010Y 200105 20010A 20015Y 200155 20015A 20020Y 200205 20020A 20025Y 200255 20025A 20030Y 200305 20030A 20035Y 200355 20035A 20040Y 200405 20040A 20045Y 200455 20045A 20050Y 200505 20050A 20055Y 200555 20055A 20060Y 200605 20060A 20065Y 200655 20065A 20070Y 200705 20070A 20075Y 200755 20075A 20080Y 200805 20080A 20085Y 200855 20085A 20090Y 200905 20090A 20095Y 200955 20095A 20096Y 200965 20096A 20097Y 200975 20097A 20098Y 200985 20098A 20099Y 200995 20099A 200001RY 200001R5 200001RA 20001RY 20001R5 20001RA 20002RY 20002R5 20002RA 20003RY 20003R5 20003RA 20004RY 20004R5 20004RA 20005RY 20005R5 20005RA 20010RY 20010R5 20010RA 20015RY 20015R5 20015RA 20020RY 20020R5 20020RA 20025RY 20025R5 20025RA 20030RY 20030R5 20030RA 20035RY 20035R5 20035RA 20040RY 20040R5 20040RA 20045RY 20045R5 20045RA 20050RY 20050R5 20050RA 20055RY 20055R5 20055RA 20060RY 20060R5 20060RA 20065RY 20065R5 20065RA 20070RY 20070R5 20070RA 20075RY 20075R5 20075RA 20080RY 20080R5 20080RA 20085RY 20085R5 20085RA 20090RY 20090R5 20090RA 20095RY 20095R5 20095RA 20096RY 20096R5 20096RA 20097RY 20097R5 20097RA 20098RY 20098R5 20098RA 20099RY 20099R5 20099RA
TYPICAL SPECIFICATIONS
Center Wavelength 1560nm
Min. Bandwidth@0.5dB 1nm 2nm 5nm 10nm 15nm 20nm
Configuration D Type (2-port), Y Type (3-port)
Excess Loss <=1.3dB (Standard) <=1.5dB (High ER Type)
Wavelength Supression >=25dB
Reflective Ratio 1+/-0.6%, 2+/-0.8%, 5+/-1.0%, 10%, 20%, 30%, 40%, 50%, 80%, 90%
Return Loss >=45dB
Extinction Ratio >=18dB (Standard), >=20dB (High ER Type)
Fiber Type PM1550 Fiber or 10/130um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~70degreeC

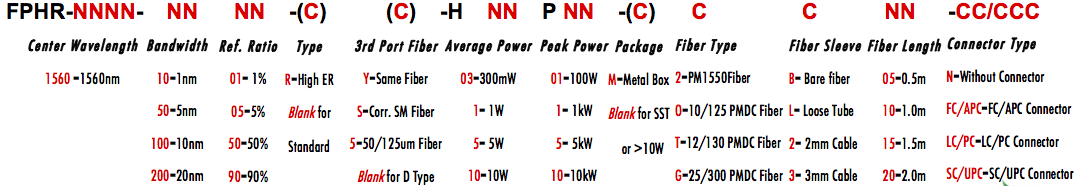

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
