1570nm High Power BP/Partial Fiber Mirror (PFM) PM Hybrid

DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Partial Fiber Mirror (PFM) Hybrid is made by thin film coating and micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features flat-top spectrum, high Suppression Ratio, high Extinction Ratio, and various Reflective Ratio. The BP/PFM Hybrid will pass the signal light while block the unwanted/ASE light, at the same time reflect a certain ratio of signal light backward. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Y Type is strongly recommended to guide out high power ASE/unwanted light out. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FPHR 1570nm PM Bandpass Filter BP Partial Fiber Mirror PFM Hybrid filtre filtrar SM Singlemode HYB HYBR HY HB hybride híbrido paso de banda bande passante Bandwidth 4nm 9nm 15nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave FPHR 1570nm PM Bandpass Filter BP Partial Fiber Mirror PFM Hybrid filtre filtrar SM Singlemode HYB HYBR HY HB hybride híbrido paso de banda bande passante Bandwidth 4nm 9nm 15nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave FPHR 1570nm PM Bandpass Filter BP Partial Fiber Mirror PFM Hybrid filtre filtrar SM Singlemode HYB HYBR HY HB hybride híbrido paso de banda bande passante Bandwidth 4nm 9nm 15nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20WWatt Watts HP CW Continuous Wave 40001Y 400015 40001A 4001Y 40015 4001A 4002Y 40025 4002A 4003Y 40035 4003A 4004Y 40045 4004A 4005Y 40055 4005A 4010Y 40105 4010A 4015Y 40155 4015A 4020Y 40205 4020A 4025Y 40255 4025A 4030Y 40305 4030A 4035Y 40355 4035A 4040Y 40405 4040A 4045Y 40455 4045A 4050Y 40505 4050A 4055Y 40555 4055A 4060Y 40605 4060A 4065Y 40655 4065A 4070Y 40705 4070A 4075Y 40755 4075A 4080Y 40805 4080A 4085Y 40855 4085A 4090Y 40905 4090A 4095Y 40955 4095A 4096Y 40965 4096A 4097Y 40975 4097A 4098Y 40985 4098A 4099Y 40995 4099A 40001RY 40001R5 40001RA 4001RY 4001R5 4001RA 4002RY 4002R5 4002RA 4003RY 4003R5 4003RA 4004RY 4004R5 4004RA 4005RY 4005R5 4005RA 4010RY 4010R5 4010RA 4015RY 4015R5 4015RA 4020RY 4020R5 4020RA 4025RY 4025R5 4025RA 4030RY 4030R5 4030RA 4035RY 4035R5 4035RA 4040RY 4040R5 4040RA 4045RY 4045R5 4045RA 4050RY 4050R5 4050RA 4055RY 4055R5 4055RA 4060RY 4060R5 4060RA 4065RY 4065R5 4065RA 4070RY 4070R5 4070RA 4075RY 4075R5 4075RA 4080RY 4080R5 4080RA 4085RY 4085R5 4085RA 4090RY 4090R5 4090RA 4095RY 4095R5 4095RA 4096RY 4096R5 4096RA 4097RY 4097R5 4097RA 4098RY 4098R5 4098RA 4099RY 4099R5 4099RA 90001Y 900015 90001A 9001Y 90015 9001A 9002Y 90025 9002A 9003Y 90035 9003A 9004Y 90045 9004A 9005Y 90055 9005A 9010Y 90105 9010A 9015Y 90155 9015A 9020Y 90205 9020A 9025Y 90255 9025A 9030Y 90305 9030A 9035Y 90355 9035A 9040Y 90405 9040A 9045Y 90455 9045A 9050Y 90505 9050A 9055Y 90555 9055A 9060Y 90605 9060A 9065Y 90655 9065A 9070Y 90705 9070A 9075Y 90755 9075A 9080Y 90805 9080A 9085Y 90855 9085A 9090Y 90905 9090A 9095Y 90955 9095A 9096Y 90965 9096A 9097Y 90975 9097A 9098Y 90985 9098A 9099Y 90995 9099A 90001RY 90001R5 90001RA 9001RY 9001R5 9001RA 9002RY 9002R5 9002RA 9003RY 9003R5 9003RA 9004RY 9004R5 9004RA 9005RY 9005R5 9005RA 9010RY 9010R5 9010RA 9015RY 9015R5 9015RA 9020RY 9020R5 9020RA 9025RY 9025R5 9025RA 9030RY 9030R5 9030RA 9035RY 9035R5 9035RA 9040RY 9040R5 9040RA 9045RY 9045R5 9045RA 9050RY 9050R5 9050RA 9055RY 9055R5 9055RA 9060RY 9060R5 9060RA 9065RY 9065R5 9065RA 9070RY 9070R5 9070RA 9075RY 9075R5 9075RA 9080RY 9080R5 9080RA 9085RY 9085R5 9085RA 9090RY 9090R5 9090RA 9095RY 9095R5 9095RA 9096RY 9096R5 9096RA 9097RY 9097R5 9097RA 9098RY 9098R5 9098RA 9099RY 9099R5 9099RA 150001Y 1500015 150001A 15001Y 150015 15001A 15002Y 150025 15002A 15003Y 150035 15003A 15004Y 150045 15004A 15005Y 150055 15005A 15010Y 150105 15010A 15015Y 150155 15015A 15020Y 150205 15020A 15025Y 150255 15025A 15030Y 150305 15030A 15035Y 150355 15035A 15040Y 150405 15040A 15045Y 150455 15045A 15050Y 150505 15050A 15055Y 150555 15055A 15060Y 150605 15060A 15065Y 150655 15065A 15070Y 150705 15070A 15075Y 150755 15075A 15080Y 150805 15080A 15085Y 150855 15085A 15090Y 150905 15090A 15095Y 150955 15095A 15096Y 150965 15096A 15097Y 150975 15097A 15098Y 150985 15098A 15099Y 150995 15099A 150001RY 150001R5 150001RA 15001RY 15001R5 15001RA 15002RY 15002R5 15002RA 15003RY 15003R5 15003RA 15004RY 15004R5 15004RA 15005RY 15005R5 15005RA 15010RY 15010R5 15010RA 15015RY 15015R5 15015RA 15020RY 15020R5 15020RA 15025RY 15025R5 15025RA 15030RY 15030R5 15030RA 15035RY 15035R5 15035RA 15040RY 15040R5 15040RA 15045RY 15045R5 15045RA 15050RY 15050R5 15050RA 15055RY 15055R5 15055RA 15060RY 15060R5 15060RA 15065RY 15065R5 15065RA 15070RY 15070R5 15070RA 15075RY 15075R5 15075RA 15080RY 15080R5 15080RA 15085RY 15085R5 15085RA 15090RY 15090R5 15090RA 15095RY 15095R5 15095RA 15096RY 15096R5 15096RA 15097RY 15097R5 15097RA 15098RY 15098R5 15098RA 15099RY 15099R5 15099RA
TYPICAL SPECIFICATIONS
Center Wavelength 1570nm
Min. Bandwidth@0.5dB 4nm 9nm 15nm
Configuration D Type (2-port), Y Type (3-port)
Excess Loss <=1.3dB (Standard) <=1.5dB (High ER Type)
Wavelength Supression >=25dB
Reflective Ratio 1+/-0.6%, 2+/-0.8%, 5+/-1.0%, 10%, 20%, 30%, 40%, 50%, 80%, 90%
Return Loss >=45dB
Extinction Ratio >=18dB (Standard), >=20dB (High ER Type)
Fiber Type PM1550 Fiber or 10/130um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W
Operating Temperature 0~70degreeC

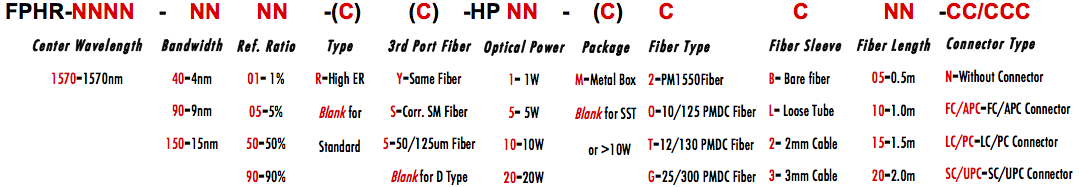

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
