1577.5nm BP/Partial Fiber Mirror (PFM) PM Hybrid for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Partial Fiber Mirror (PFM) Hybrid is made by thin film coating and micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features flat-top spectrum, high Suppression Ratio, high Extinction Ratio, and various Reflective Ratio. The BP/PFM Hybrid will pass the signal light while block the unwanted/ASE light, at the same time reflect a certain ratio of signal light backward. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Y Type is strongly recommended to guide out high power ASE/unwanted light out. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FPHR 1577.5nm PM Bandpass Filter BP Partial Fiber Mirror PFM Hybrid filtre filtrar SM Singlemode HYB HYBR HY HB hybride híbrido paso de banda bande passante Bandwidth 5nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPHR 1577.5nm PM Bandpass Filter BP Partial Fiber Mirror PFM Hybrid filtre filtrar SM Singlemode HYB HYBR HY HB hybride híbrido paso de banda bande passante Bandwidth 5nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPHR 1577.5nm PM Bandpass Filter BP Partial Fiber Mirror PFM Hybrid filtre filtrar SM Singlemode HYB HYBR HY HB hybride híbrido paso de banda bande passante Bandwidth 5nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 50001Y 500015 50001A 5001Y 50015 5001A 5002Y 50025 5002A 5003Y 50035 5003A 5004Y 50045 5004A 5005Y 50055 5005A 5010Y 50105 5010A 5015Y 50155 5015A 5020Y 50205 5020A 5025Y 50255 5025A 5030Y 50305 5030A 5035Y 50355 5035A 5040Y 50405 5040A 5045Y 50455 5045A 5050Y 50505 5050A 5055Y 50555 5055A 5060Y 50605 5060A 5065Y 50655 5065A 5070Y 50705 5070A 5075Y 50755 5075A 5080Y 50805 5080A 5085Y 50855 5085A 5090Y 50905 5090A 5095Y 50955 5095A 5096Y 50965 5096A 5097Y 50975 5097A 5098Y 50985 5098A 5099Y 50995 5099A 50001RY 50001R5 50001RA 5001RY 5001R5 5001RA 5002RY 5002R5 5002RA 5003RY 5003R5 5003RA 5004RY 5004R5 5004RA 5005RY 5005R5 5005RA 5010RY 5010R5 5010RA 5015RY 5015R5 5015RA 5020RY 5020R5 5020RA 5025RY 5025R5 5025RA 5030RY 5030R5 5030RA 5035RY 5035R5 5035RA 5040RY 5040R5 5040RA 5045RY 5045R5 5045RA 5050RY 5050R5 5050RA 5055RY 5055R5 5055RA 5060RY 5060R5 5060RA 5065RY 5065R5 5065RA 5070RY 5070R5 5070RA 5075RY 5075R5 5075RA 5080RY 5080R5 5080RA 5085RY 5085R5 5085RA 5090RY 5090R5 5090RA 5095RY 5095R5 5095RA 5096RY 5096R5 5096RA 5097RY 5097R5 5097RA 5098RY 5098R5 5098RA 5099RY 5099R5 5099RA
TYPICAL SPECIFICATIONS
Center Wavelength 1577.5nm
Min. Bandwidth@0.5dB 5nm
Configuration D Type (2-port), Y Type (3-port)
Excess Loss <=1.3dB (Standard) <=1.5dB (High ER Type)
Wavelength Supression >=25dB
Reflective Ratio 1+/-0.6%, 2+/-0.8%, 5+/-1.0%, 10%, 20%, 30%, 40%, 50%, 80%, 90%
Return Loss >=45dB
Extinction Ratio >=18dB (Standard), >=20dB (High ER Type)
Fiber Type PM1550 Fiber or 10/130um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~70degreeC

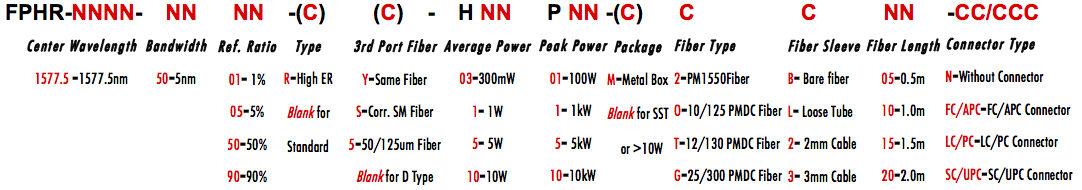

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
