1626nm BP/Partial Fiber Mirror (PFM) PM Hybrid for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Bandpass Filter/Partial Fiber Mirror (PFM) Hybrid is made by thin film coating and micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features flat-top spectrum, high Suppression Ratio, high Extinction Ratio, and various Reflective Ratio. The BP/PFM Hybrid will pass the signal light while block the unwanted/ASE light, at the same time reflect a certain ratio of signal light backward. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Y Type is strongly recommended to guide out high power ASE/unwanted light out. Various pass bandwidth and fiber types are available, customized on bandwidth and consigned fiber type are also available on request.
FPHR 1626nm PM Bandpass Filter BP Partial Fiber Mirror PFM Hybrid filtre filtrar SM Singlemode HYB HYBR HY HB hybride híbrido paso de banda bande passante Bandwidth 16nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPHR 1626nm PM Bandpass Filter BP Partial Fiber Mirror PFM Hybrid filtre filtrar SM Singlemode HYB HYBR HY HB hybride híbrido paso de banda bande passante Bandwidth 16nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPHR 1626nm PM Bandpass Filter BP Partial Fiber Mirror PFM Hybrid filtre filtrar SM Singlemode HYB HYBR HY HB hybride híbrido paso de banda bande passante Bandwidth 16nm PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type 4-port X Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 160001Y 1600015 160001A 16001Y 160015 16001A 16002Y 160025 16002A 16003Y 160035 16003A 16004Y 160045 16004A 16005Y 160055 16005A 16010Y 160105 16010A 16015Y 160155 16015A 16020Y 160205 16020A 16025Y 160255 16025A 16030Y 160305 16030A 16035Y 160355 16035A 16040Y 160405 16040A 16045Y 160455 16045A 16050Y 160505 16050A 16055Y 160555 16055A 16060Y 160605 16060A 16065Y 160655 16065A 16070Y 160705 16070A 16075Y 160755 16075A 16080Y 160805 16080A 16085Y 160855 16085A 16090Y 160905 16090A 16095Y 160955 16095A 16096Y 160965 16096A 16097Y 160975 16097A 16098Y 160985 16098A 16099Y 160995 16099A 160001RY 160001R5 160001RA 16001RY 16001R5 16001RA 16002RY 16002R5 16002RA 16003RY 16003R5 16003RA 16004RY 16004R5 16004RA 16005RY 16005R5 16005RA 16010RY 16010R5 16010RA 16015RY 16015R5 16015RA 16020RY 16020R5 16020RA 16025RY 16025R5 16025RA 16030RY 16030R5 16030RA 16035RY 16035R5 16035RA 16040RY 16040R5 16040RA 16045RY 16045R5 16045RA 16050RY 16050R5 16050RA 16055RY 16055R5 16055RA 16060RY 16060R5 16060RA 16065RY 16065R5 16065RA 16070RY 16070R5 16070RA 16075RY 16075R5 16075RA 16080RY 16080R5 16080RA 16085RY 16085R5 16085RA 16090RY 16090R5 16090RA 16095RY 16095R5 16095RA 16096RY 16096R5 16096RA 16097RY 16097R5 16097RA 16098RY 16098R5 16098RA 16099RY 16099R5 16099RA
TYPICAL SPECIFICATIONS
Center Wavelength 1626nm
Min. Bandwidth@0.5dB 16nm
Configuration D Type (2-port), Y Type (3-port)
Excess Loss <=1.3dB (Standard) <=1.5dB (High ER Type)
Wavelength Supression >=25dB
Reflective Ratio 1+/-0.6%, 2+/-0.8%, 5+/-1.0%, 10%, 20%, 30%, 40%, 50%, 80%, 90%
Return Loss >=45dB
Extinction Ratio >=18dB (Standard), >=20dB (High ER Type)
Fiber Type PM1550 Fiber or 10/130um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~70degreeC

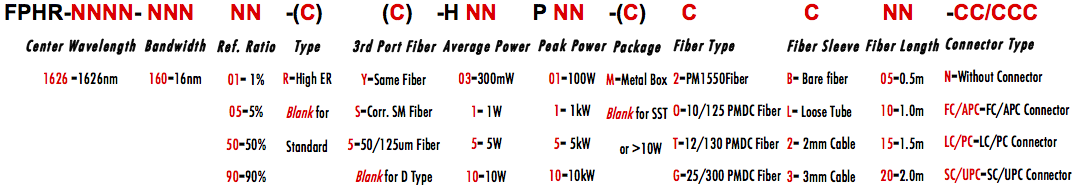

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:


The change on PN will save a new product.


Product Description:


Comment/Other Information:
