1550nm PM Optical Isolator for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The Optical Isolator will transmit the signal at single direction. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPIS 1550nm 1530nm 1540nm 1560nm 1570nm 1545nm 1555nm PM Optical Isolator Isolate abschaltung Aislador isolateur Isolador odizolowa? PM1310 PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPIS 1550nm 1530nm 1540nm 1560nm 1570nm 1545nm 1555nm PM Optical Isolator Isolate abschaltung Aislador isolateur Isolador odizolowa? PM1310 PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPIS 1550nm 1530nm 1540nm 1560nm 1570nm 1545nm 1555nm PM Optical Isolator Isolate abschaltung Aislador isolateur Isolador odizolowa? PM1310 PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP SS SF DS DF HS HF
TYPICAL SPECIFICATIONS
Center Wavelength 1550nm
Peak Isolation 42 (Single Stage), 58 (Dual Stage), 35 (H Stage)
Isolation >=32 (Single Stage), >=45 (Dual Stage), >=25dB (H Stage)
Insertion Loss (23degree) <=0.4dB (Single Stage), <=0.5dB (Dual Stage), <=0.5dB (H Stage)
Insertion Loss <=0.55dB (Single Stage), <=0.65dB (Dual Stage), <=0.8dB (H Stage)
Return Loss >=55/50dB
Extinction Ratio >=18dB
Fiber Type PM1550 Fiber or 10/125um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W, 25W, 30W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

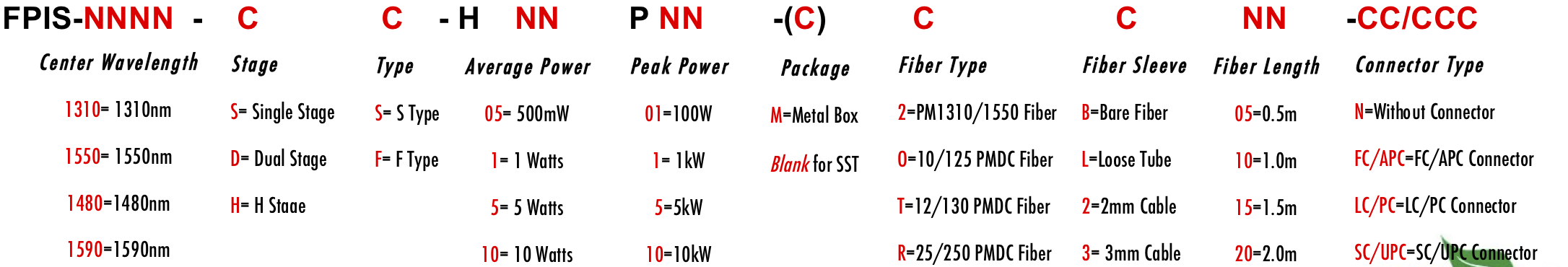

ORDERING INFORMATION/PART NUMBER(PN)
