1590nm Optical Isolator

DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and high Wavelength Isolation. The Optical Isolator will transmit the signal at single direction. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FISO 1590nm 1570nm 1610nm 1580nm 1600nm 1605nm 1585nm 1595nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type FISO 1590nm 1570nm 1610nm 1580nm 1600nm 1605nm 1585nm 1595nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type FISO 1590nm 1570nm 1610nm 1580nm 1600nm 1605nm 1585nm 1595nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? SMF-28 SMF28 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type SP SA DP DA
TYPICAL SPECIFICATIONS
Center Wavelength 1590nm
Peak Isolation 42 (Single Stage), 58 (Dual Stage)
Isolation >=32 (Single Stage), >=45 (Dual Stage)
Insertion Loss (23degree) <=0.35dB (Single Stage), <=0.4dB (Dual Stage)
Insertion Loss <=0.5dB (Single Stage), <=0.6dB (Dual Stage)
Return Loss >=60/55dB
PDL <=0.05dB (Single Stage), <=0.1dB (Dual Stage)
Fiber Type SMF-28 Fiber or 10/130um DC Fiber
12/130um DC Fiber or 20/130um DC Fiber
25/250um DC Fiber or 25/300um DC Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~70degreeC

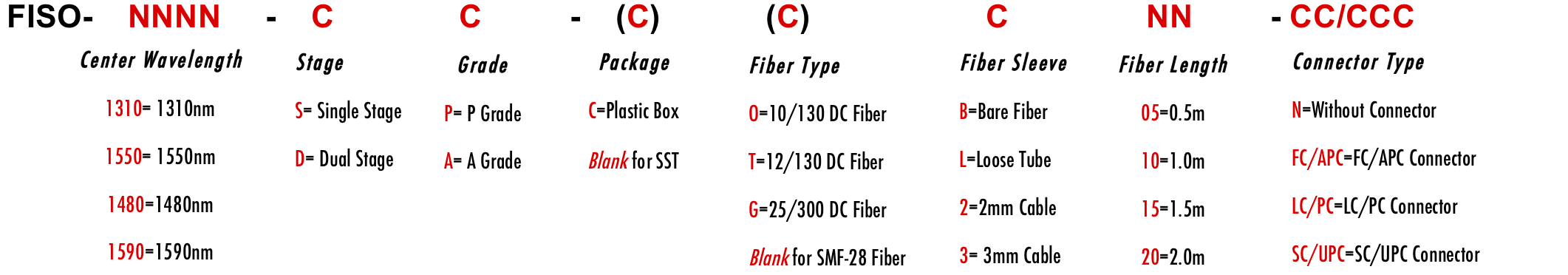

ORDERING INFORMATION/PART NUMBER(PN)
