1625nm PM Optical Isolator

DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The Optical Isolator will transmit the signal at single direction. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPIS 1625nm 1615nm 1635nm 1630nm 1620nm 1610nm 1640nm PM Optical Isolator Isolate abschaltung Aislador isolateur Isolador odizolowa? PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda FPIS 1625nm 1615nm 1635nm 1630nm 1620nm 1610nm 1640nm PM Optical Isolator Isolate abschaltung Aislador isolateur Isolador odizolowa? PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda FPIS 1625nm 1615nm 1635nm 1630nm 1620nm 1610nm 1640nm PM Optical Isolator Isolate abschaltung Aislador isolateur Isolador odizolowa? PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda SS SF DS DF
TYPICAL SPECIFICATIONS
Center Wavelength 1625nm
Bandwidth +/-10nm
Isolation >=22 (Single Stage), >=40 (Dual Stage)
Insertion Loss (23degree) <=0.6dB (Single Stage), <=0.7dB (Dual Stage)
Insertion Loss <=0.8dB (Single Stage), <=0.9dB (Dual Stage)
Return Loss >=55/50dB
Extinction Ratio >=20dB
Fiber Type PM1550 Fiber or 10/125um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC

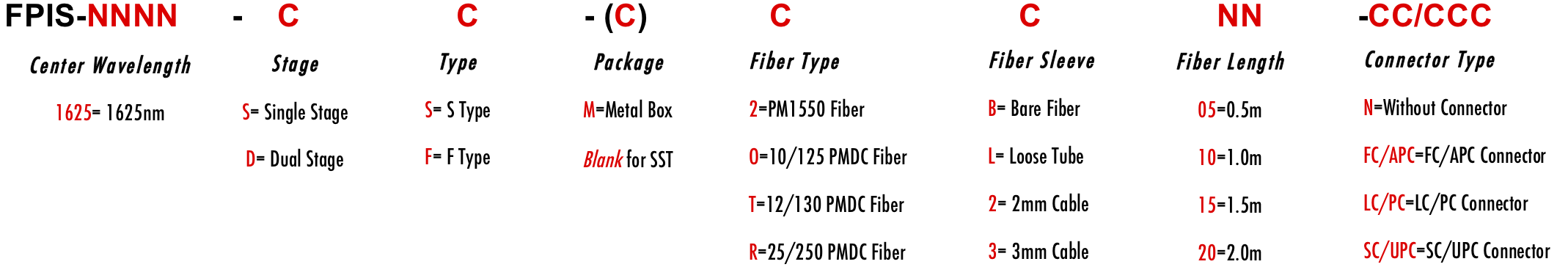

ORDERING INFORMATION/PART NUMBER(PN)
