1650nm High Power PM Optical Isolator

DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The Optical Isolator will transmit the signal at single direction. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPIS 1650nm 1640nm 1660nm 1645nm 1655nm PM Optical Isolator Isolate abschaltung Aislador isolateur Isolador odizolowa? PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  Watt Watts HP CW Continuous Wave FPIS 1650nm 1640nm 1660nm 1645nm 1655nm PM Optical Isolator Isolate abschaltung Aislador isolateur Isolador odizolowa? PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  Watt Watts HP CW Continuous Wave FPIS 1650nm 1640nm 1660nm 1645nm 1655nm PM Optical Isolator Isolate abschaltung Aislador isolateur Isolador odizolowa? PM1550 LMA 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  Watt Watts HP CW Continuous Wave SS SF DS DF
TYPICAL SPECIFICATIONS
Center Wavelength 1650nm
Bandwidth +/-5nm
Isolation >=20 (Single Stage), >=40 (Dual Stage)
Insertion Loss (23degree) <=0.8dB (Single Stage), <=1.1dB (Dual Stage)
Insertion Loss <=1.0dB (Single Stage), <=1.4dB (Dual Stage)
Return Loss >=50dB
Extinction Ratio >=18dB
Fiber Type PM1550 Fiber or 10/125um PMDC Fiber
12/130um PMDC Fiber or 20/130um PMDC Fiber
25/250um PMDC Fiber or 25/300um PMDC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W
Operating Temperature 0~50degreeC

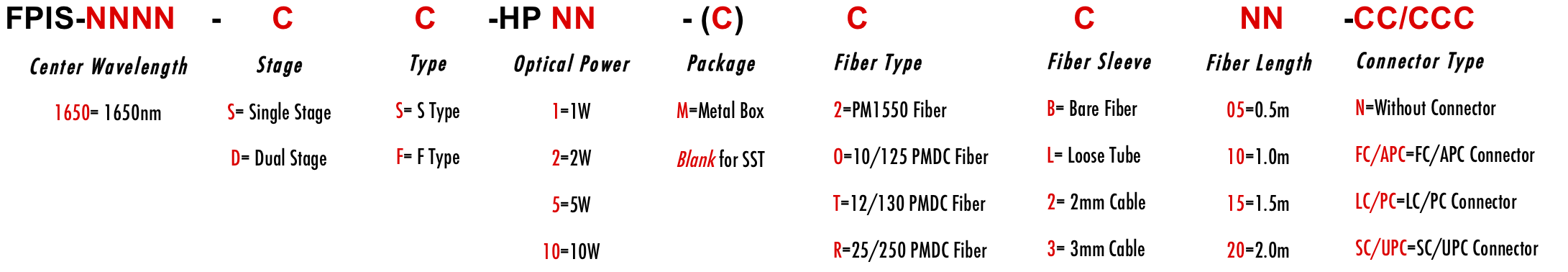

ORDERING INFORMATION/PART NUMBER(PN)
