1930nm High Power PM Optical Isolator

DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The Optical Isolator will transmit the signal at single direction. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPIS 1930nm 1910nm 1950nm 1920nm 1940nm 1935nm 1925nm 1945nm 1915nm PM Optical Isolator Isolate abschaltung Aislador isolateur Isolador odizolowa? PM1550 PM1950 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W  Watt Watts HP CW Continuous Wave FPIS 1930nm 1910nm 1950nm 1920nm 1940nm 1935nm 1925nm 1945nm 1915nm PM Optical Isolator Isolate abschaltung Aislador isolateur Isolador odizolowa? PM1550 PM1950 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W  Watt Watts HP CW Continuous Wave FPIS 1930nm 1910nm 1950nm 1920nm 1940nm 1935nm 1925nm 1945nm 1915nm PM Optical Isolator Isolate abschaltung Aislador isolateur Isolador odizolowa? PM1550 PM1950 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W 15W 20W  Watt Watts HP CW Continuous Wave SS SF DS DF HS HF
TYPICAL SPECIFICATIONS
Center Wavelength 1930nm
Bandwidth +/-20nm
Isolation >=16 (Single Stage), >=30 (Dual Stage), >=25dB (H Stage)
Insertion Loss (23degree) <=1.3dB (Single Stage), <=1.6dB (Dual & H Stage)
Return Loss >=50/45dB
Extinction Ratio >=18dB
Fiber Type PM1550 Fiber or PM1950 Fiber
10/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 15W, 20W
Operating Temperature 0~50degreeC

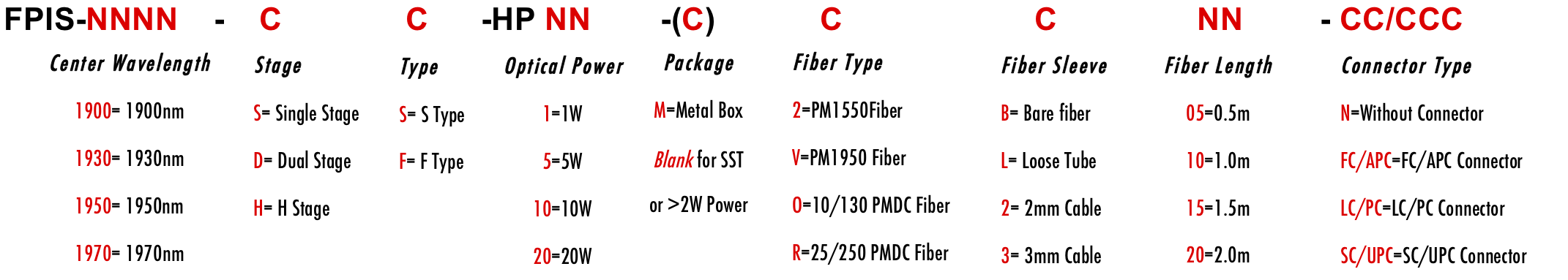

ORDERING INFORMATION/PART NUMBER(PN)
