1950nm PM Optical Isolator for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The Optical Isolator will transmit the signal at single direction. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPIS 1950nm 1930nm 1970nm 1940nm 1960nm 1945nm 1935nm 1955nm 1965nm PM Optical Isolator Isolate abschaltung Aislador isolateur Isolador odizolowa? PM1550 PM1950 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPIS 1950nm 1930nm 1970nm 1940nm 1960nm 1945nm 1935nm 1955nm 1965nm PM Optical Isolator Isolate abschaltung Aislador isolateur Isolador odizolowa? PM1550 PM1950 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPIS 1950nm 1930nm 1970nm 1940nm 1960nm 1945nm 1935nm 1955nm 1965nm PM Optical Isolator Isolate abschaltung Aislador isolateur Isolador odizolowa? PM1550 PM1950 LMA 8/125um 10/125um 10/130um 20/125um 20/130um 25/250um PMSC Single Clad Cladding PMDC Double Clad 3-port Y Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W 15W 20W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP SS SF DS DF HS HF
TYPICAL SPECIFICATIONS
Center Wavelength 1950nm
Bandwidth +/-20nm
Isolation >=16 (Single Stage), >=30 (Dual Stage), >=25dB (H Stage)
Insertion Loss (23degree) <=1.3dB (Single Stage), <=1.6dB (Dual & H Stage)
Return Loss >=50/45dB
Extinction Ratio >=18dB
Fiber Type PM1550 Fiber or PM1950 Fiber
10/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Average Power 300mW, 500mW, 1W, 2W, 3W, 5W, 10W, 15W, 20W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

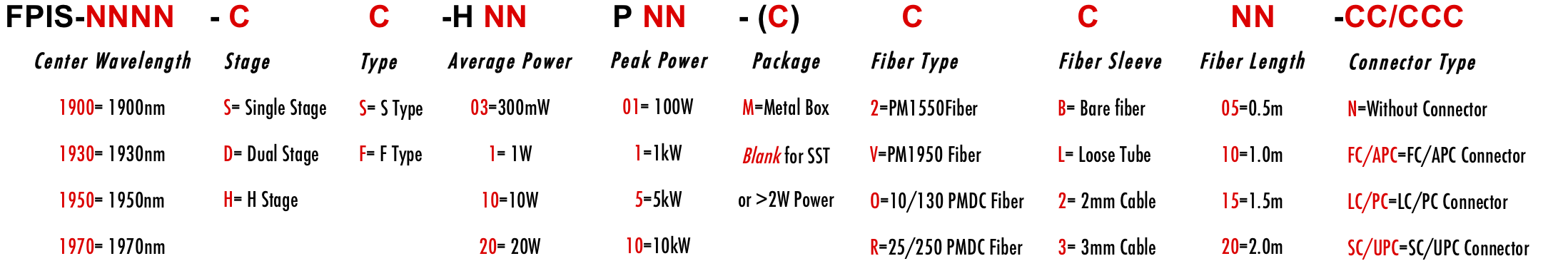

ORDERING INFORMATION/PART NUMBER(PN)
