1030nm Inline Optical Isolator
DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and high Wavelength Isolation. The Optical Isolator will transmit the signal at single direction. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FISO 1030nm 1020nm 1040nm 1035nm 1036nm 1025nm 1031nm 1032nm 1033nm 1029nm 1028nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type FISO 1030nm 1020nm 1040nm 1035nm 1036nm 1025nm 1031nm 1032nm 1033nm 1029nm 1028nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type FISO 1030nm 1020nm 1040nm 1035nm 1036nm 1025nm 1031nm 1032nm 1033nm 1029nm 1028nm Optical Isolator Polarization Insensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type S D
TYPICAL SPECIFICATIONS
Center Wavelength 1030nm
Peak Isolation 25 (Single Stage), 45 (Dual Stage)
Isolation >=20 (Single Stage), >=40 (Dual Stage)
Insertion Loss (Typical, 23degree) 3.0dB (Single Stage), 5.0dB (Dual Stage)
Insertion Loss <=3.8dB (Single Stage), <=7.5dB (Dual Stage)
Return Loss >=50dB
PDL <=0.15dB
Fiber Type HI1060 or 10/125um SC Fiber
10/125um DC Fiber or 15/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
Max. Optical Power (CW) 50mW
Operating Temperature 0~50degreeC

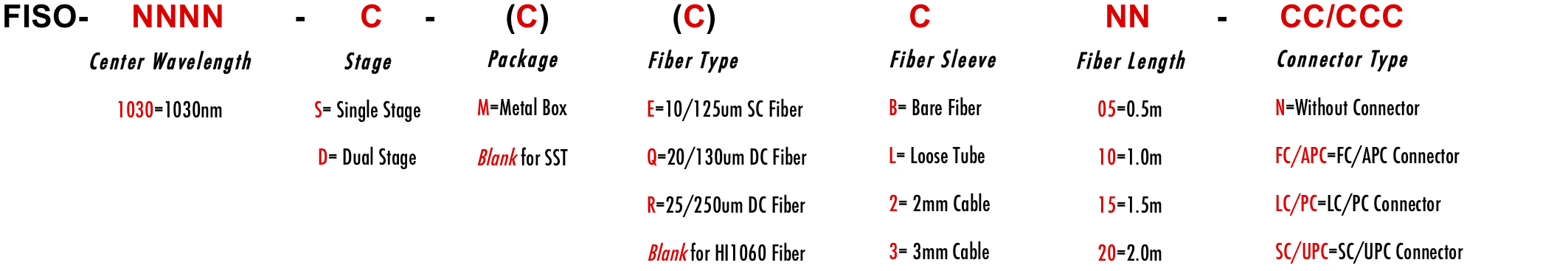

ORDERING INFORMATION/PART NUMBER(PN)
