1053nm Free Space Optical Isolator

DESCRIPTION
Haphit provides fiber based passive components. The Free Space Optical Isolator is made by micro-optics package technology. It features Wide Spectrum and high Wavelength Isolation. The Optical Isolator will transmit the signal at single direction. Various wavelength range and Clear Aperture (CA) are available, customized on wavelength range and CA are also available on request.
FISF 1053nm 1050nm 1040nm 1063nm 1060nm 1055nm 1045nm 1052nm 1051nm 1054nm Optical Isolator Free Space Polarization Sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI1060 1060XP LMA PM1310 PM1550 MM 50/125um 62.5/125um 105/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um Clear Aperture Beam Diameter FISF 1053nm 1050nm 1040nm 1063nm 1060nm 1055nm 1045nm 1052nm 1051nm 1054nm Optical Isolator Free Space Polarization Sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI1060 1060XP LMA PM1310 PM1550 MM 50/125um 62.5/125um 105/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um Clear Aperture Beam Diameter FISF 1053nm 1050nm 1040nm 1063nm 1060nm 1055nm 1045nm 1052nm 1051nm 1054nm Optical Isolator Free Space Polarization Sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? HI1060 1060XP LMA PM1310 PM1550 MM 50/125um 62.5/125um 105/125um 8/125um 10/125um 10/130um 12/130um 20/125um 20/130um 25/250um 25/300um 30/250um Clear Aperture Beam Diameter S D 30x39
TYPICAL SPECIFICATIONS
Center Wavelength 1053nm
Peak Isolation 30 (Single Stage), 55 (Dual Stage)
Isolation >=25 (Single Stage), >=45 (Dual Stage)
Insertion Loss (Typ. 23degree) 1.6dB (Single Stage), 2.9dB (Dual Stage)
Insertion Loss(23degree) <=2.0dB (Single Stage), <=3.3dB (Dual Stage)
Clear Aperture 0.8mm
Work Mode Polarization Sensitive
Output Polarization Single Stage: 45degree to Input Direction
Dual Stage: 90degree to Input Direction
Max. Optical Power (CW) 200mW
Operating Temperature 0~50degreeC

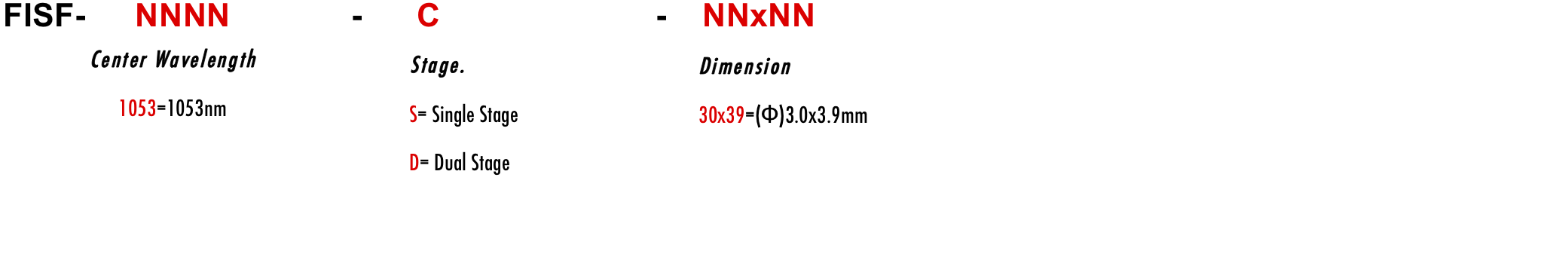

ORDERING INFORMATION/PART NUMBER(PN)
