1053nm High Power Optical Isolator

DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with fiber in and fiber out. It features Wide Spectrum and high Wavelength Isolation. The Optical Isolator will transmit the signal at single direction. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FISO 1053nm 1050nm 1040nm 1063nm 1060nm 1055nm 1045nm 1052nm 1051nm 1054nm high power polarization insensitive optical fiber isolator Højtydende polarisering, følsom fiberoptisk isolering Hochleistungs-Polarisierung unempfindliche Faser-Isolator ???????????? ?????????????? ???????????????? ?????????????? ???????? Séparateur de fibre optique non sensible à la polarisation haute puissance Erittäin tehokas polarisointi, herkkä optinen karanteeni High-Power Polarisation Ongevoelige Fiber Isolation Vysoce výkonné polarizace, neinvazivní optická izolace Isolador de fibra óptica de polarização de alta potência insensível Högeffektiv polarisering, okänslig fiberisolering Yüksek güç polarizasyonu duyarl? fiber izole Aislador de fibra óptica no sensible a la polarización de alta potencia Nagy teljesítmény? polarizációs, érzéketlen optikai szálas izoláló Isolatore ottico ad alta potenza di polarizzazione insensibile HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type High Power 1W 2W 3W 4W 5W 10W  15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W Watt Watts HP CW Continuous Wave FISO 1053nm 1050nm 1040nm 1063nm 1060nm 1055nm 1045nm 1052nm 1051nm 1054nm high power polarization insensitive optical fiber isolator Højtydende polarisering, følsom fiberoptisk isolering Hochleistungs-Polarisierung unempfindliche Faser-Isolator ???????????? ?????????????? ???????????????? ?????????????? ???????? Séparateur de fibre optique non sensible à la polarisation haute puissance Erittäin tehokas polarisointi, herkkä optinen karanteeni High-Power Polarisation Ongevoelige Fiber Isolation Vysoce výkonné polarizace, neinvazivní optická izolace Isolador de fibra óptica de polarização de alta potência insensível Högeffektiv polarisering, okänslig fiberisolering Yüksek güç polarizasyonu duyarl? fiber izole Aislador de fibra óptica no sensible a la polarización de alta potencia Nagy teljesítmény? polarizációs, érzéketlen optikai szálas izoláló Isolatore ottico ad alta potenza di polarizzazione insensibile HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type High Power 1W 2W 3W 5W 10W  15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W Watt Watts HP CW Continuous Wave FISO 1053nm 1050nm 1040nm 1063nm 1060nm 1055nm 1045nm 1052nm 1051nm 1054nm high power polarization insensitive optical fiber isolator Højtydende polarisering, følsom fiberoptisk isolering Hochleistungs-Polarisierung unempfindliche Faser-Isolator ???????????? ?????????????? ???????????????? ?????????????? ???????? Séparateur de fibre optique non sensible à la polarisation haute puissance Erittäin tehokas polarisointi, herkkä optinen karanteeni High-Power Polarisation Ongevoelige Fiber Isolation Vysoce výkonné polarizace, neinvazivní optická izolace Isolador de fibra óptica de polarização de alta potência insensível Högeffektiv polarisering, okänslig fiberisolering Yüksek güç polarizasyonu duyarl? fiber izole Aislador de fibra óptica no sensible a la polarización de alta potencia Nagy teljesítmény? polarizációs, érzéketlen optikai szálas izoláló Isolatore ottico ad alta potenza di polarizzazione insensibile HI1060 1060XP LMA 6/125um 10/125um 10/130um 12/125um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um SC Single Clad Cladding DC Double Clad 3-port Y Type High Power 1W 2W 3W 5W 10W  15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W Watt Watts HP CW Continuous Wave DY DA D5 LY LA L5
TYPICAL SPECIFICATIONS
Center Wavelength 1053nm
Typical Peak Isolation Single Stage: 28dB, Dual Stage: 46dB
Isolation (23degree) Single Stage: >=22dB, Dual Stage: >=40dB
Insertion Loss (Typical, 23degree) Single Stage: 0.8dB
Dual Stage D Type: 1.0dB
Dual Stage L Type: 1.2dB
Insertion Loss (23degree) Single Stage: <=1.5dB, Dual Stage: <=1.7dB
Configuration Standard: 2-port
Y Type: 3-port, Backward Light Guides Out
Return Loss >=50dB
PDL <=0.15dB
Fiber Type HI1060 or 10/125um SC Fiber
10/125um DC Fiber or 15/130um DC Fiber
20/130um DC Fiber or 25/250um DC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 20W, 30W, 50W, 80W, 100W, 150W, 200W
Operating Temperature 0~50degreeC

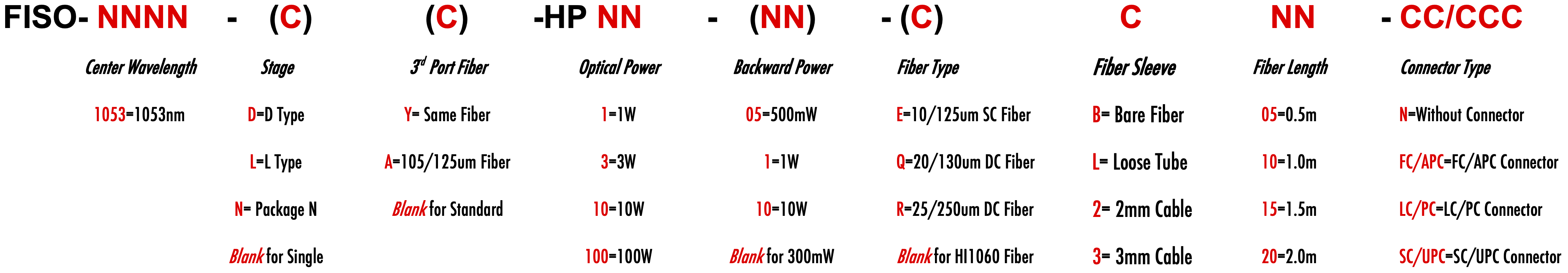

ORDERING INFORMATION/PART NUMBER(PN)
