1053nm High Power Collimating PM Isolator

DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The Optical Isolator will transmit the signal at single direction. The high power version is specially designed to withstand high CW Power while maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPIS 1053nm 1050nm 1040nm 1063nm 1060nm 1055nm 1045nm 1052nm 1051nm 1054nm Collimating Collimator Free Space Output Beam size PM Optical Isolator Polarization sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 4W 5W 10W  15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W Watt Watts HP CW Continuous Wave FPIS 1053nm 1050nm 1040nm 1063nm 1060nm 1055nm 1045nm 1052nm 1051nm 1054nm Collimating Collimator Free Space Output Beam size PM Optical Isolator Polarization sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 5W 10W  15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W Watt Watts HP CW Continuous Wave FPIS 1053nm 1050nm 1040nm 1063nm 1060nm 1055nm 1045nm 1052nm 1051nm 1054nm Collimating Collimator Free Space Output Beam size PM Optical Isolator Polarization sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda High Power 1W 2W 3W 4W 5W 10W  15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W Watt Watts HP CW Continuous WaveHigh Power 1W 2W 3W 5W 10W  15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W Watt Watts HP CW Continuous Wave 05S 05F 10S 10F 15S 15F 20S 20F 25S 25F 30S 30F 35S 35F 40S 40F 45S 45F 50S 50F
TYPICAL SPECIFICATIONS
Center Wavelength 1053nm
Peak Isolation 28
Isolation (23degree) >=20
Insertion Loss (Typical, 23degree) 0.5dB
Insertion Loss (23degree) <=0.75dB
Nominal Output Beam Diameter 0.5mm, 1mm, 2mm, 5mm or customer specify
Return Loss >=50dB
Extinction Ratio >=18dB
Fiber Type PM980 Fiber, PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Optical Power (CW) 1W, 2W, 3W, 5W, 10W, 20W, 30W, 50W, 80W, 100W
Operating Temperature 0~50degreeC

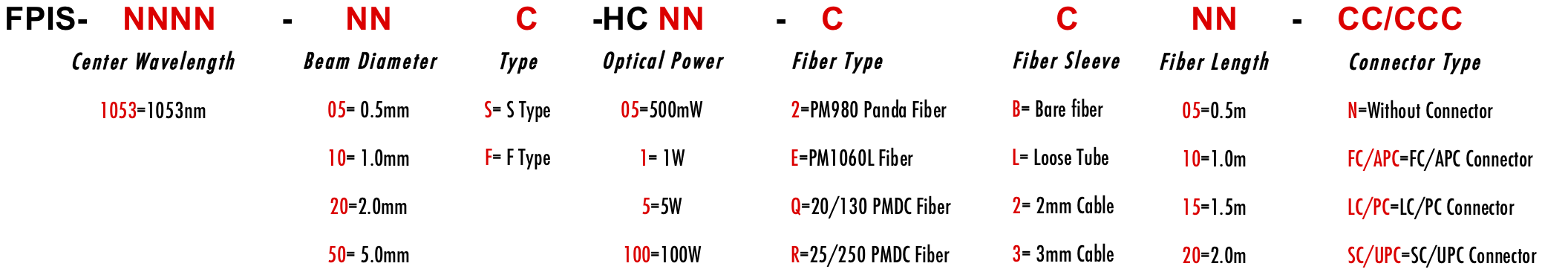

ORDERING INFORMATION/PART NUMBER(PN)
