1070nm High Power MM Optical Isolator for Pulse Power

DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with Multimode (MM) fiber in and MM fiber out. It features Wide Spectrum and high Wavelength Isolation. The Optical Isolator will transmit the signal at single direction. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FMIS 1070nm 1060nm 1080nm 1075nm 1065nm 1071nm 1072nm 1073nm 1067nm 1068nm 1069nm MM Multimode Optical Isolator Isolate abschaltung Aislador isolateur Isolador odizolowa? Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FMIS 1070nm 1060nm 1080nm 1075nm 1065nm 1071nm 1072nm 1073nm 1067nm 1068nm 1069nm MM Multimode Optical Isolator Isolate abschaltung Aislador isolateur Isolador odizolowa? Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FMIS 1070nm 1060nm 1080nm 1075nm 1065nm 1071nm 1072nm 1073nm 1067nm 1068nm 1069nm MM Multimode Optical Isolator Isolate abschaltung Aislador isolateur Isolador odizolowa? Graded Index Step GIMM SIMM 50/125um 62.5/125um 105/125um NA=0.15 NA=0.22 NA=0.12 3-port Y Type for Pulse Power 1W 2W 3W 5W 10W 15W 20W 25W 30W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP
TYPICAL SPECIFICATIONS
Center Wavelength 1070nm
Peak Isolation 25dB
Isolation >=20
Insertion Loss (23degree) 1.2dB
Insertion Loss <=1.8dB
Return Loss >=30dB
Fiber Type 50/125um or 62.5/125um MM Fiber
50/125um OM3 MM Fiber
Max. Average Power 1W, 2W, 3W, 5W, 10W, 15W, 20W, 25W, 30W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

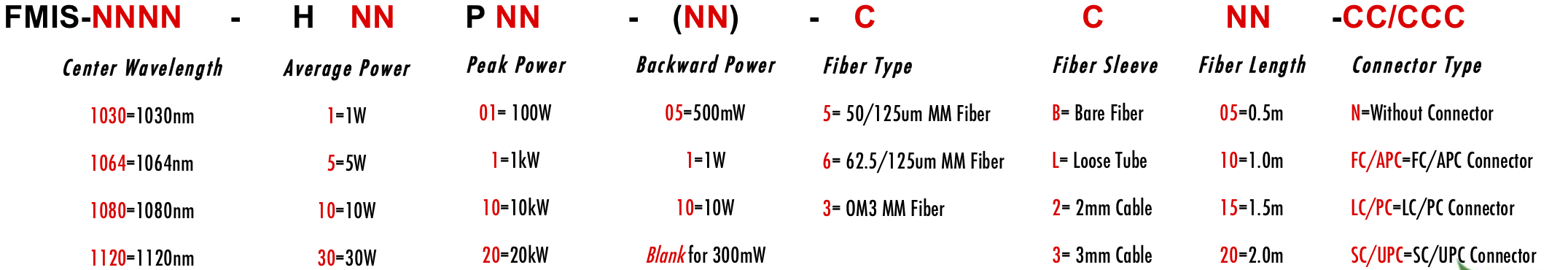

ORDERING INFORMATION/PART NUMBER(PN)
