1080nm Mini Inline PM Optical Isolator
DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The Optical Isolator will transmit the signal at single direction. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPIM 1080nm 1070nm 1090nm 1085nm 1075nm 1081nm 1082nm 1083nm 1084nm 1079nm 1078nm 1077nm 1076nm Mini Minisize Mini-size minimisze miniature PM Optical Isolator Polarization sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda FPIM 1080nm 1070nm 1090nm 1085nm 1075nm 1081nm 1082nm 1083nm 1084nm 1079nm 1078nm 1077nm 1076nm Mini Minisize Mini-size minimisze miniature PM Optical Isolator Polarization sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda FPIM 1080nm 1070nm 1090nm 1085nm 1075nm 1081nm 1082nm 1083nm 1084nm 1079nm 1078nm 1077nm 1076nm Mini Minisize Mini-size minimisze miniature PM Optical Isolator Polarization sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda SS SF DS DF
TYPICAL SPECIFICATIONS
Center Wavelength 1080nm
Peak Isolation 28 (Single Stage), 45 (Dual Stage)
Isolation >=20 (Single Stage), >=40 (Dual Stage)
Insertion Loss (Typical, 23degree) 1.6dB (Single Stage), 2.4dB (Dual Stage)
Insertion Loss <=2.2dB (Single Stage), <=3.6dB (Dual Stage)
Return Loss >=50/45dB
Extinction Ratio >=20dB
Fiber Type PM980 Fiber, PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Optical Power (CW) 300mW
Operating Temperature 0~50degreeC
Package Size (Dia.)3.0x20mm

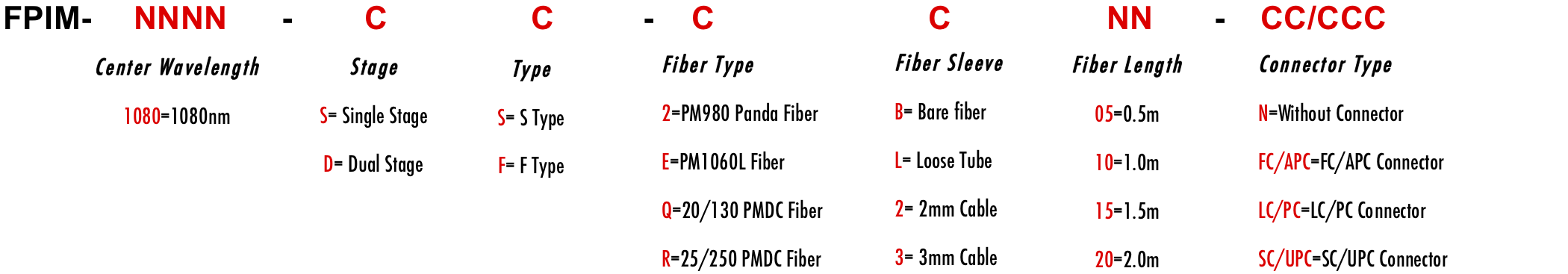

ORDERING INFORMATION/PART NUMBER(PN)
  Standard specifications and
design parameters


Serial Reference

Part Number (PN)*:

The change on PN will save a new product.

Product Description:


Comment/Other Information:
