1080nm High Power Collimating PM Isolator for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The Optical Isolator will transmit the signal at single direction. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPIS 1080nm 1070nm 1090nm 1085nm 1075nm 1081nm 1082nm 1083nm 1084nm 1079nm 1078nm 1077nm 1076nm Collimating Collimator Free Space Output Beam size PM Optical Isolator Polarization sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPIS 1080nm 1070nm 1090nm 1085nm 1075nm 1081nm 1082nm 1083nm 1084nm 1079nm 1078nm 1077nm 1076nm Collimating Collimator Free Space Output Beam size PM Optical Isolator Polarization sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPIS 1080nm 1070nm 1090nm 1085nm 1075nm 1081nm 1082nm 1083nm 1084nm 1079nm 1078nm 1077nm 1076nm Collimating Collimator Free Space Output Beam size PM Optical Isolator Polarization sensitive Isolate abschaltung Aislador isolateur Isolador odizolowa? PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP 05S 05F 10S 10F 15S 15F 20S 20F 25S 25F 30S 30F 35S 35F 40S 40F 45S 45F 50S 50F
TYPICAL SPECIFICATIONS
Center Wavelength 1080nm
Peak Isolation 28
Isolation (23degree) >=20
Insertion Loss (Typical, 23degree) 0.5dB
Insertion Loss (23degree) <=0.8dB
Nominal Output Beam Diameter 0.5mm, 1mm, 2mm, 5mm or customer specify
Return Loss >=50dB
Extinction Ratio >=20dB
Fiber Type PM980 Fiber, PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Average Power 1W, 2W, 3W, 5W, 10W, 20W, 30W, 50W, 80W, 100W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

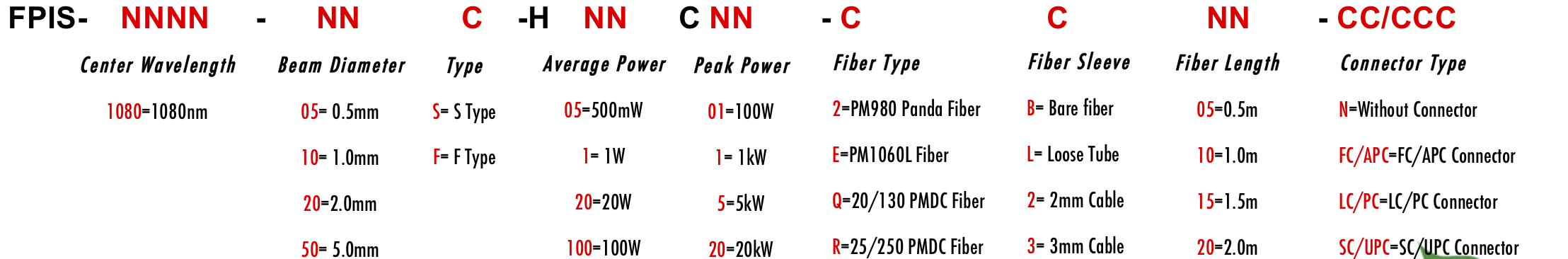

ORDERING INFORMATION/PART NUMBER(PN)
