1092nm High Power PM Optical Isolator for Pulse Power
DESCRIPTION
Haphit provides fiber based passive components. The Optical Isolator is made by micro-optics package technology with Polarization Maintaining (PM) fiber in and PM fiber out. It features Wide Spectrum, high Wavelength Isolation and high Extinction Ratio. The Optical Isolator will transmit the signal at single direction. The pulse power version is specially designed to withstand both high average power and high peak power for pulse laser, while at the same time maintaining high performance and stability. Various wavelength range and fiber types are available, customized on wavelength range and consigned fiber type are also available on request.
FPIS 1092nm 1090nm 1080nm 1100m 1102nm 1095nm 1091nm 1093nm 1094nm 1089nm 1087nm 1088nm 1086nm high power polarization sensitive optical fiber isolator or polarization maintaining Højtydende polariseringsfølsom fiberoptisk isolering eller sikringsenhed Hochleistungs-Polarisierungsempfindliche Glasfaser-Isolatoren oder -Polarisatoren ???????????? ?????????????? ?????????????? ???????? ??? ?????????????? Séparateur de fibre optique sensible à la polarisation haute puissance ou conservateur de biais Erittäin tehokas polarisointiherkkä kuituoptinen eristäjä tai suojaava laite Krachtige polarisatiegevoelige optische isolator of beveiligingsapparaat Vysokokapacitní polariza?ní citlivý optický izolator nebo ochranná vazba Isoladores de fibra óptica sensíveis à polarização de alta potência ou conservadores de polarização Polypolariseringskänslig fiberisolator med hög effekt eller bifogad enhet Yüksek güç polarizasyon duyarl? fiber izolatör veya savunma mekanizmas? Aisladores de fibra óptica sensibles a la polarización de alta potencia o conservadores de polarización Nagy teljesítmény? polarizációs érzékeny optikai szálas szigetel? vagy biztosító Isolatore o parzializzatore di fibre ottiche sensibili alla polarizzazione ad alta potenza PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPIS 1092nm 1090nm 1080nm 1100m 1102nm 1095nm 1091nm 1093nm 1094nm 1089nm 1087nm 1088nm 1086nm high power polarization sensitive optical fiber isolator or polarization maintaining Højtydende polariseringsfølsom fiberoptisk isolering eller sikringsenhed Hochleistungs-Polarisierungsempfindliche Glasfaser-Isolatoren oder -Polarisatoren ???????????? ?????????????? ?????????????? ???????? ??? ?????????????? Séparateur de fibre optique sensible à la polarisation haute puissance ou conservateur de biais Erittäin tehokas polarisointiherkkä kuituoptinen eristäjä tai suojaava laite Krachtige polarisatiegevoelige optische isolator of beveiligingsapparaat Vysokokapacitní polariza?ní citlivý optický izolator nebo ochranná vazba Isoladores de fibra óptica sensíveis à polarização de alta potência ou conservadores de polarização Polypolariseringskänslig fiberisolator med hög effekt eller bifogad enhet Yüksek güç polarizasyon duyarl? fiber izolatör veya savunma mekanizmas? Aisladores de fibra óptica sensibles a la polarización de alta potencia o conservadores de polarización Nagy teljesítmény? polarizációs érzékeny optikai szálas szigetel? vagy biztosító Isolatore o parzializzatore di fibre ottiche sensibili alla polarizzazione ad alta potenza PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP FPIS 1092nm 1090nm 1080nm 1100m 1102nm 1095nm 1091nm 1093nm 1094nm 1089nm 1087nm 1088nm 1086nm high power polarization sensitive optical fiber isolator or polarization maintaining Højtydende polariseringsfølsom fiberoptisk isolering eller sikringsenhed Hochleistungs-Polarisierungsempfindliche Glasfaser-Isolatoren oder -Polarisatoren ???????????? ?????????????? ?????????????? ???????? ??? ?????????????? Séparateur de fibre optique sensible à la polarisation haute puissance ou conservateur de biais Erittäin tehokas polarisointiherkkä kuituoptinen eristäjä tai suojaava laite Krachtige polarisatiegevoelige optische isolator of beveiligingsapparaat Vysokokapacitní polariza?ní citlivý optický izolator nebo ochranná vazba Isoladores de fibra óptica sensíveis à polarização de alta potência ou conservadores de polarização Polypolariseringskänslig fiberisolator med hög effekt eller bifogad enhet Yüksek güç polarizasyon duyarl? fiber izolatör veya savunma mekanizmas? Aisladores de fibra óptica sensibles a la polarización de alta potencia o conservadores de polarización Nagy teljesítmény? polarizációs érzékeny optikai szálas szigetel? vagy biztosító Isolatore o parzializzatore di fibre ottiche sensibili alla polarizzazione ad alta potenza PM980 PM980XP PM980HP LMA 6/125um 10/125um 10/130um 12/130um 15/125um 15/130um 20/125um 20/130um 25/250um 30/250um PMSC Single Clad Cladding PMDC Double Clad 2-port D Type 3-port Y Type Type Polarization Maintaining PM Extinction Ratio ER Panda for Pulse Power 1W 2W 3W 5W 10W  15W 20W 25W 30W 35W 40W 45W 50W 55W 60W 65W 70W 75W 80W 85W 90W 95W 100W 100W 1kW 2kW 3kW 5kW 10kW 15kW 20kW average peak ns ps fs kW Watt Watts HP DSY DSA DS5 DFY DFA DF5 LSY LSA LS5 LFY LFA LF5
TYPICAL SPECIFICATIONS
Center Wavelength 1092nm
Typical Peak Isolation Single Stage: 28dB, Dual Stage: 46dB
Isolation (23degree) Single Stage: >=22dB, Dual Stage: >=40dB
Insertion Loss (Typical, 23degree) Single Stage: 0.9dB
Dual Stage D Type: 1.1dB
Dual Stage L Type: 1.3dB
Insertion Loss (23degree) Single Stage: <=1.5dB, Dual Stage: <=1.8dB
Configuration Standard: 2-port
Y Type: 3-port, Backward Light Guides Out
Return Loss >=50dB
Extinction Ratio >=18dB
Fiber Type PM980 Fiber, PM1060L Fiber or PM1060L-FA Fiber
10/125um PMDC Fiber or 15/130um PMDC Fiber
20/130um PMDC Fiber or 25/250um PMDC Fiber
Max. Average Power 1W, 2W, 3W, 5W, 10W, 20W, 30W, 50W, 80W, 100W, 150W, 200W
Max. Peak Power for Pulse 100W, 1kW, 2kW, 3kW, 5kW, 10kW, 15kW, 20kW
Operating Temperature 0~50degreeC

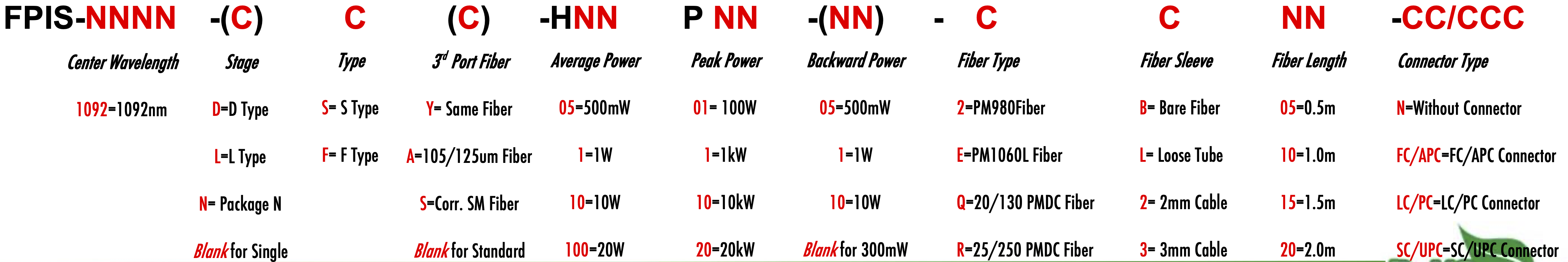

ORDERING INFORMATION/PART NUMBER(PN)
